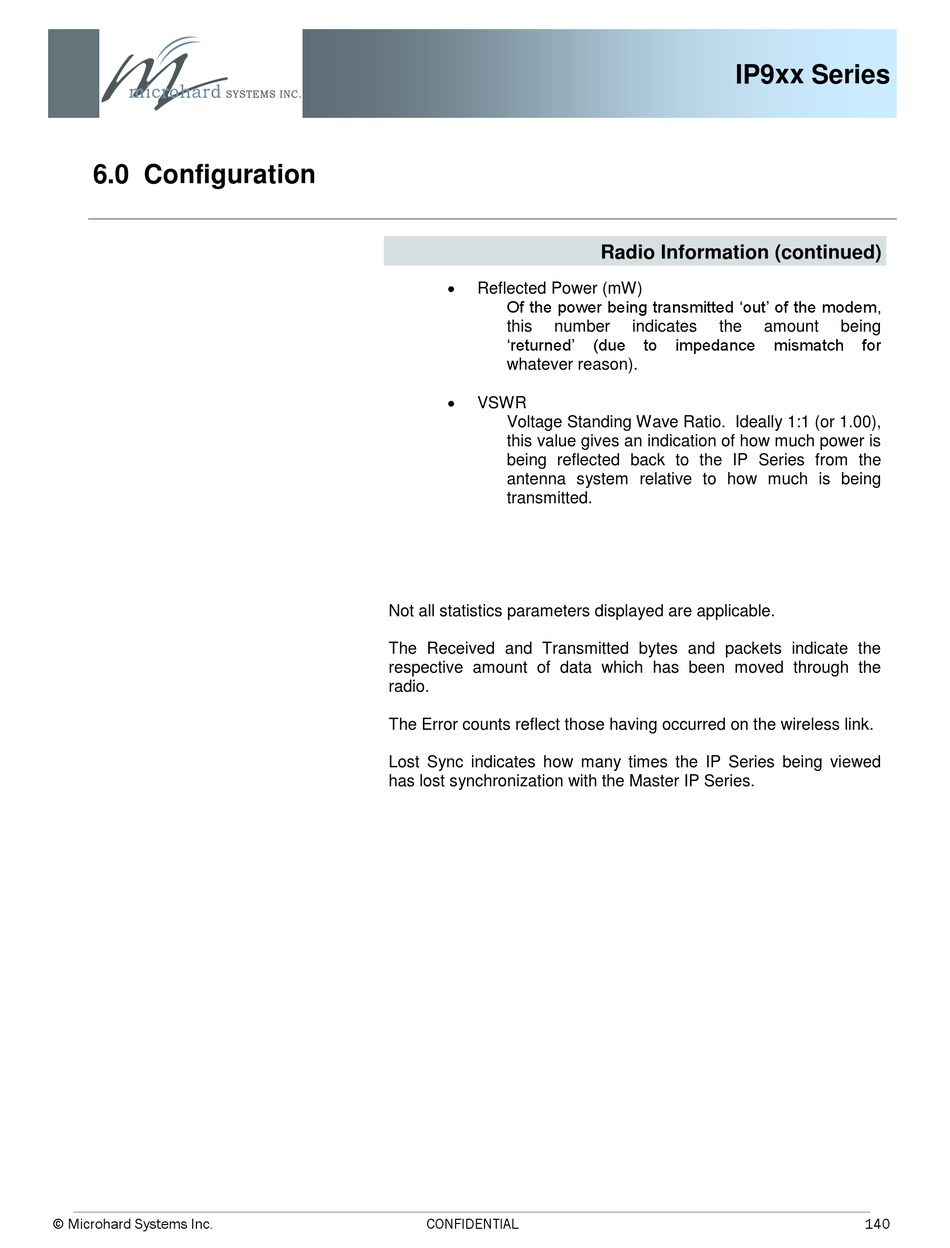

Microhard Systems IP-921 Operating Manual page 140

900mhz wireless ethernet bridge/serial gateway
Table of Contents

Advertisement

6.0 Configuration
© Microhard Systems Inc.
Reflected Power (mW)
Of the power being transmitted ‗out' of the modem,
this
number
‗returned'
whatever reason).
VSWR
Voltage Standing Wave Ratio. Ideally 1:1 (or 1.00),
this value gives an indication of how much power is
being reflected back to the IP Series from the
antenna system relative to how much is being
transmitted.
Not all statistics parameters displayed are applicable.
The Received and Transmitted bytes and packets indicate the
respective amount of data which has been moved through the
radio.
The Error counts reflect those having occurred on the wireless link.
Lost Sync indicates how many times the IP Series being viewed
has lost synchronization with the Master IP Series.
CONFIDENTIAL
IP9xx Series
Radio Information (continued)
indicates
the
amount
(due
to
impedance
being
mismatch
for
140
