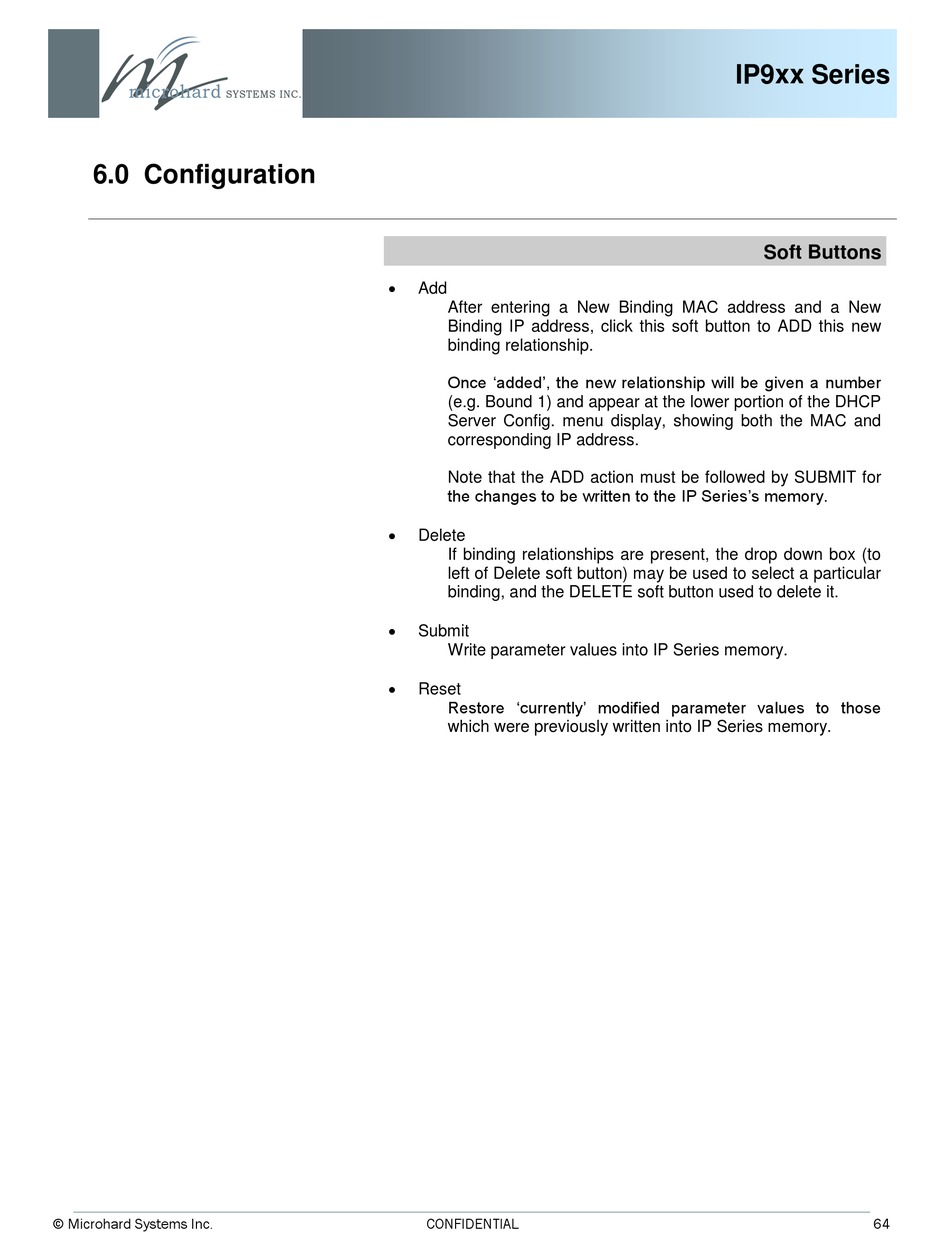

Microhard Systems IP-921 Operating Manual page 64

6.0 Configuration
© Microhard Systems Inc.

Add
After entering a New Binding MAC address and a New
Binding IP address, click this soft button to ADD this new
binding relationship.
Once ‗added', the new relationship will be given a number
(e.g. Bound 1) and appear at the lower portion of the DHCP
Server Config. menu display, showing both the MAC and
corresponding IP address.
Note that the ADD action must be followed by SUBMIT for
the changes to be written to the IP Series's memory.

Delete
If binding relationships are present, the drop down box (to
left of Delete soft button) may be used to select a particular
binding, and the DELETE soft button used to delete it.

Submit
Write parameter values into IP Series memory.

Reset
Restore ‗currently' modified parameter values to those
which were previously written into IP Series memory.
CONFIDENTIAL
IP9xx Series
Soft Buttons
64
