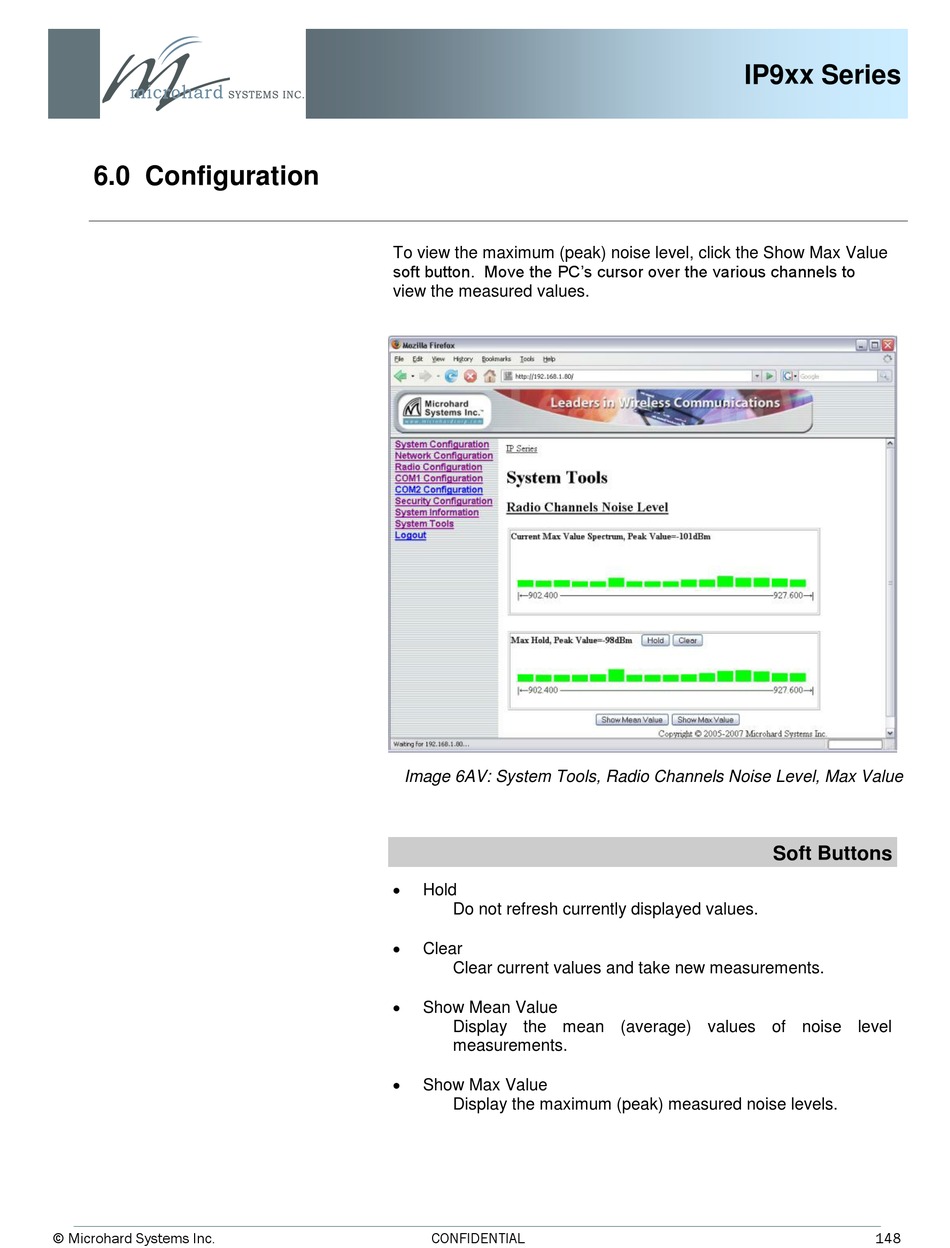

Microhard Systems IP-921 Operating Manual page 148

6.0 Configuration
© Microhard Systems Inc.
To view the maximum (peak) noise level, click the Show Max Value
soft button. Move the PC's cursor over the various channels to
view the measured values.
Image 6AV: System Tools, Radio Channels Noise Level, Max Value

Hold
Do not refresh currently displayed values.

Clear
Clear current values and take new measurements.

Show Mean Value
Display the mean (average) values of noise level
measurements.

Show Max Value
Display the maximum (peak) measured noise levels.
CONFIDENTIAL
IP9xx Series
Soft Buttons
148
