5.0 Network Topologies
An E2E network requires a
Master modem.
The data being transmitted
from remote units in an E2E
network travels to the Master
and is then re-broadcast to all
other remotes.
© Microhard Systems Inc.
5.4 Everyone-to-Everyone (E2E)
E2E mode is used for communications between all remote mo-
dems,
i.e. data from every modem is broadcast to every other
modem in the network.
Considering the amount of data re-broadcasting (via the Master), it
is a very bandwidth-intensive network topology.
Example 5.4.1
1 Master and 3 remote units must all communicate with each other.

There is no DESTINATION UNIT configuration option
as the DESTINATION is predefined to be the broadcast
address (65535) when in E2E mode.
CONFIDENTIAL
IP9xx Series

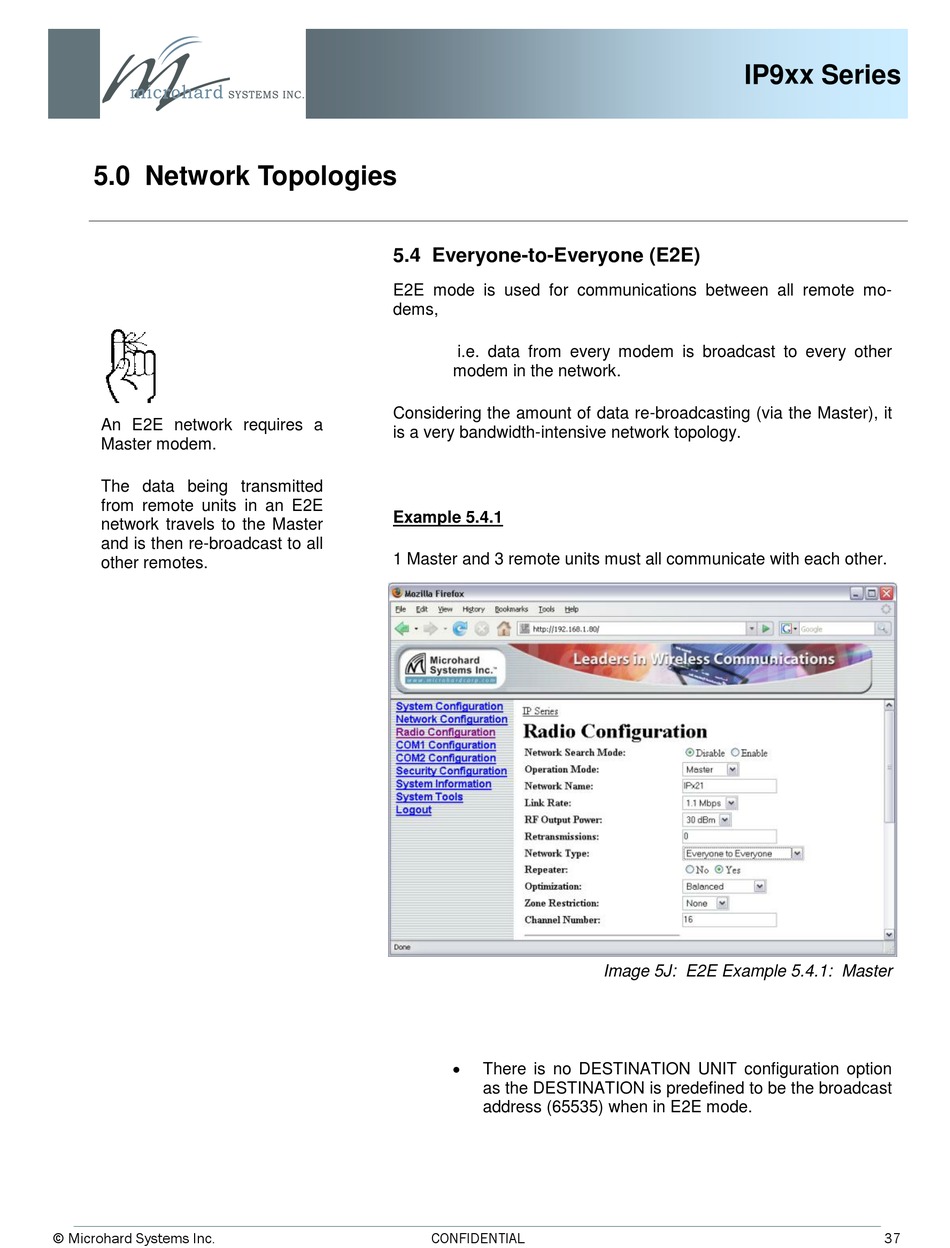

Image 5J: E2E Example 5.4.1: Master
