6.0 Configuration
Be certain to SAVE any
d e s i r e d c o n f i g u r a t i o n
changes.
This action is the same as
activating the SUBMIT soft
button when using the Web
UI.
© Microhard Systems Inc.

Having selected ‗A' - Point-to-Multipoint - the Radio Menu
appears showing the newly-selected Network Type:

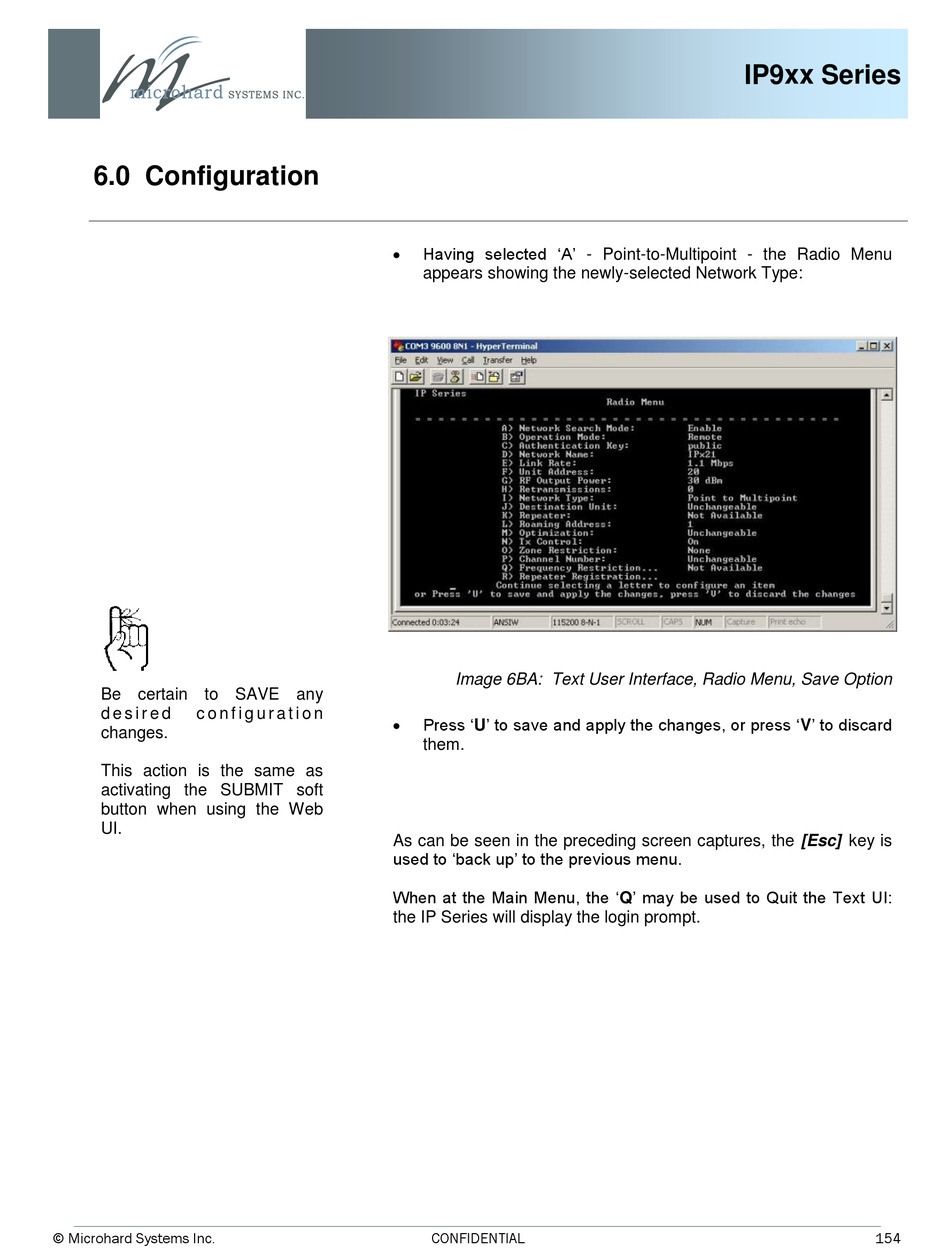

Image 6BA: Text User Interface, Radio Menu, Save Option

Press ‗U' to save and apply the changes, or press ‗V' to discard
them.
As can be seen in the preceding screen captures, the [Esc] key is
used to ‗back up' to the previous menu.
When at the Main Menu, the ‗Q' may be used to Quit the Text UI:
the IP Series will display the login prompt.
CONFIDENTIAL
IP9xx Series
154
