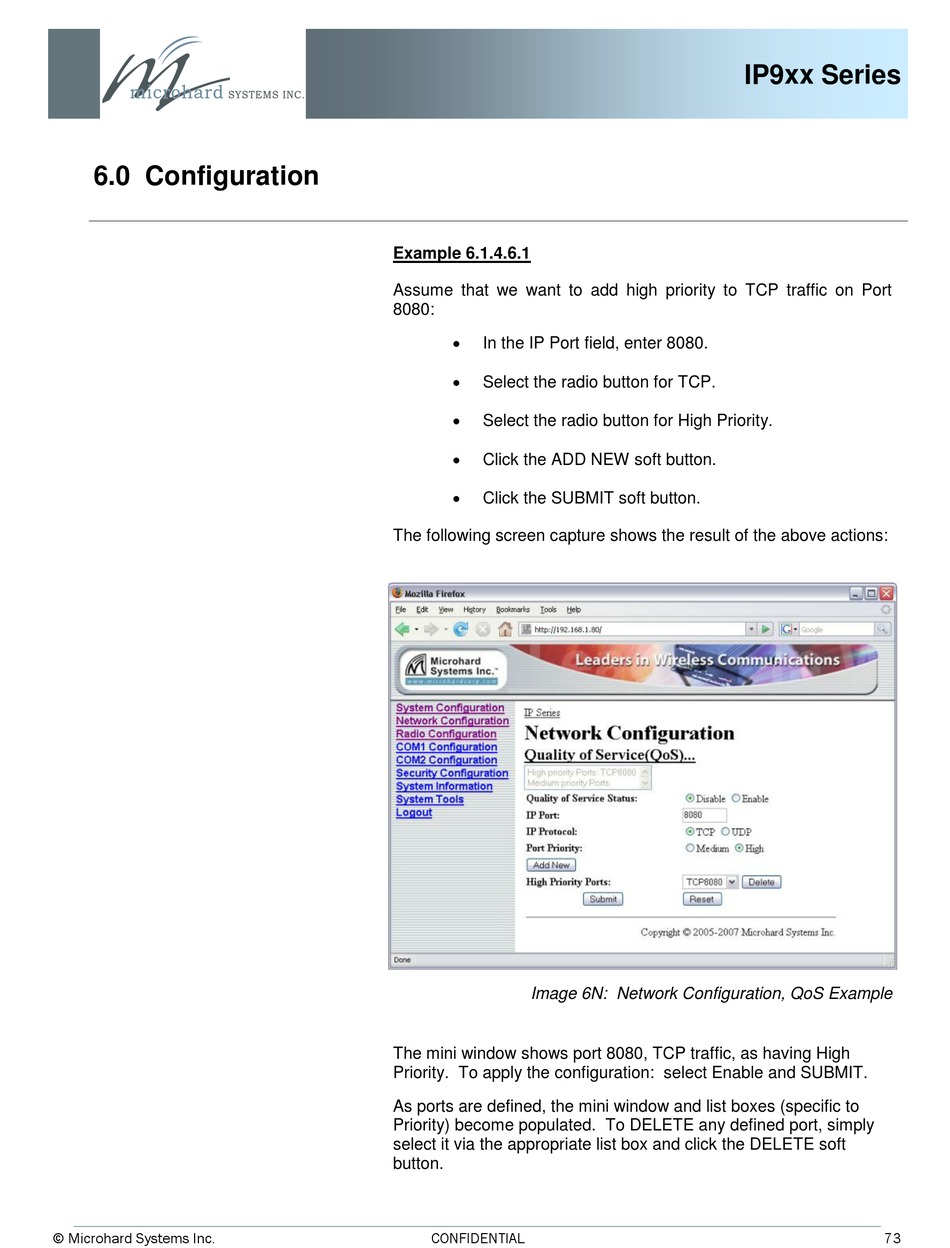

Microhard Systems IP-921 Operating Manual page 73

6.0 Configuration
© Microhard Systems Inc.
Example 6.1.4.6.1
Assume that we want to add high priority to TCP traffic on Port
8080:

In the IP Port field, enter 8080.

Select the radio button for TCP.

Select the radio button for High Priority.

Click the ADD NEW soft button.

Click the SUBMIT soft button.
The following screen capture shows the result of the above actions:
Image 6N: Network Configuration, QoS Example
The mini window shows port 8080, TCP traffic, as having High
Priority. To apply the configuration: select Enable and SUBMIT.
As ports are defined, the mini window and list boxes (specific to
Priority) become populated. To DELETE any defined port, simply
select it via the appropriate list box and click the DELETE soft
button.
