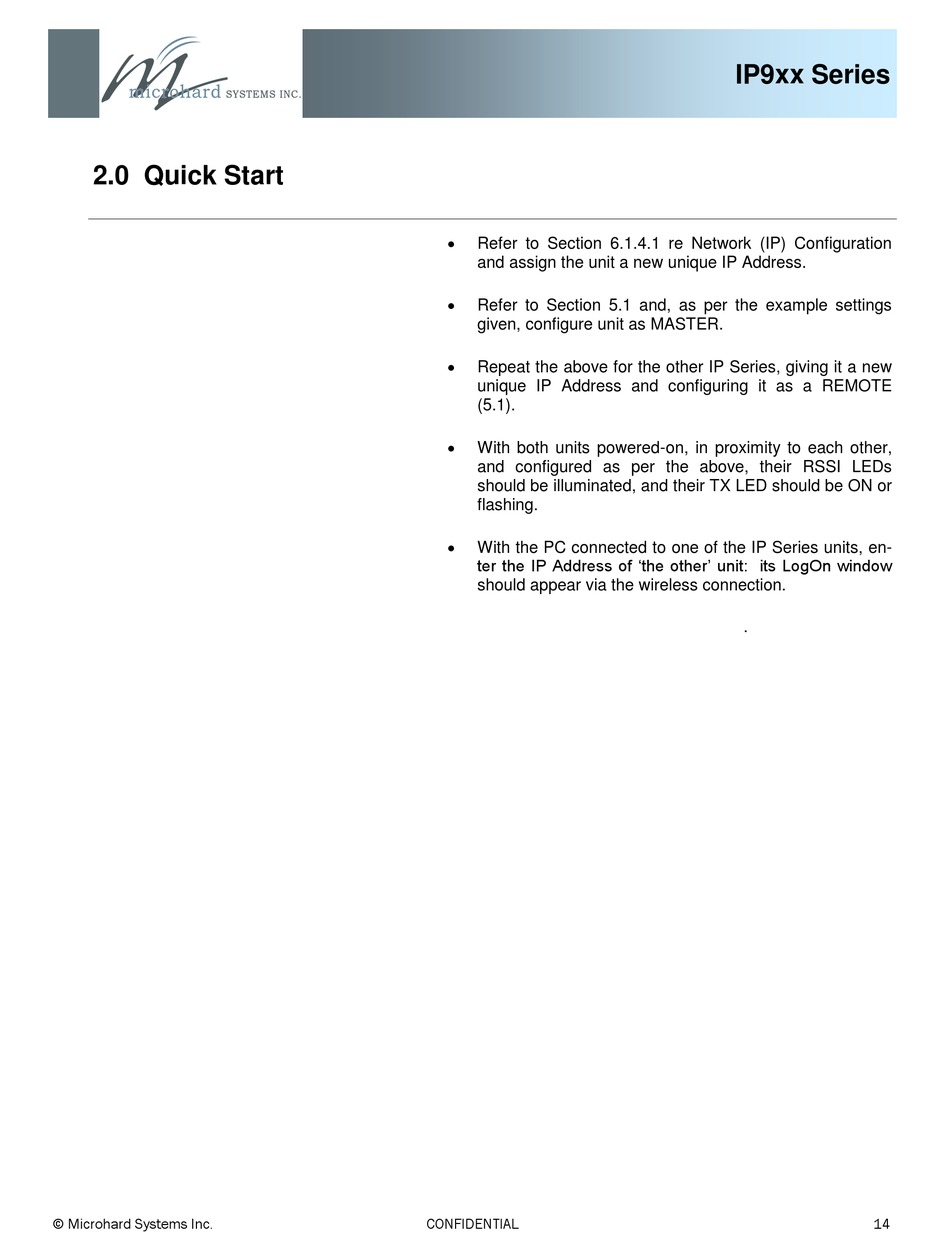

2.0 Quick Start
© Microhard Systems Inc.

Refer to Section 6.1.4.1 re Network (IP) Configuration
and assign the unit a new unique IP Address.

Refer to Section 5.1 and, as per the example settings
given, configure unit as MASTER.

Repeat the above for the other IP Series, giving it a new
unique IP Address and configuring it as a REMOTE
(5.1).

With both units powered-on, in proximity to each other,
and configured as per the above, their RSSI LEDs
should be illuminated, and their TX LED should be ON or
flashing.

With the PC connected to one of the IP Series units, en-
ter the IP Address of ‗the other' unit: its LogOn window
should appear via the wireless connection.
