This window displays information related to the primary RS-232
serial interface (COM1 on the rear of the IP Series).

COM1 Port Status
Enabled by default.
Configure via COM1 Configuration menu.

COM1 Connect As
Display of chosen protocol with respect to serial
gateway function.
Configure via COM1 Configuration menu.

COM1 Connect Status
If port is enabled and there is data traffic, this will
display ‗Active'.

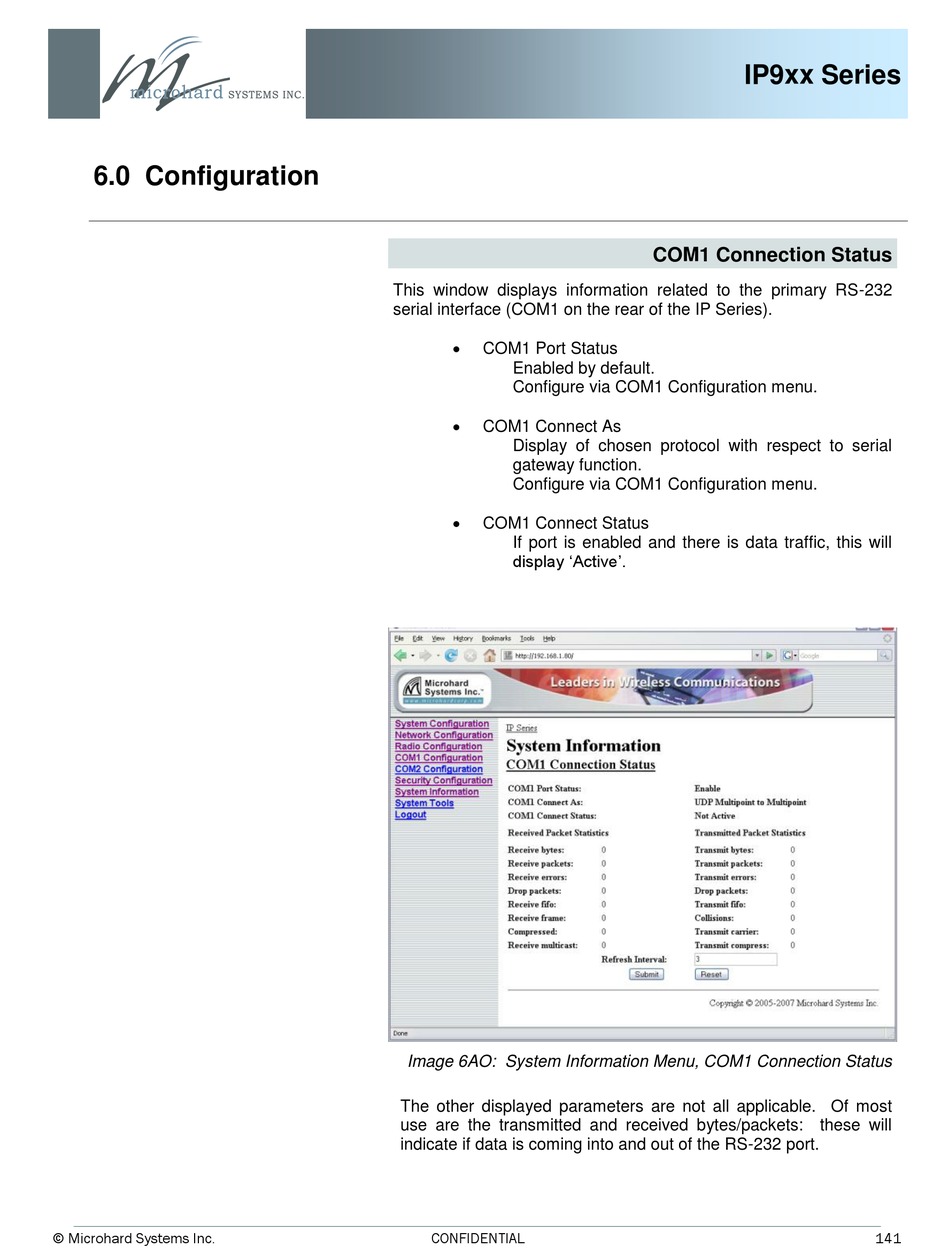

Image 6AO: System Information Menu, COM1 Connection Status
The other displayed parameters are not all applicable. Of most
use are the transmitted and received bytes/packets: these will
indicate if data is coming into and out of the RS-232 port.
