6.0 Configuration
© Microhard Systems Inc.

6.2 Text User Interface

Initial configuration of an IP Series using the Text User Interface
(Text UI) method involves the following steps:

connect the IP Series's front panel COM2 port to an available
COM port on your PC, using the MHS-supplied Diagnostic
Cable (black).

run a terminal program (e.g. HyperTerminal) for the connected
PC COM port, configured for 115200bps, 8 data bits, no parity,
and 1 stop bit. Flow control should be set to ‗none'.

apply power to the IP Series and wait approximately 1 minute
for the system to load - you will observe various text appearing
in the terminal program window, culminating in the IPx21 login
prompt which can be seen in the screen capture below:

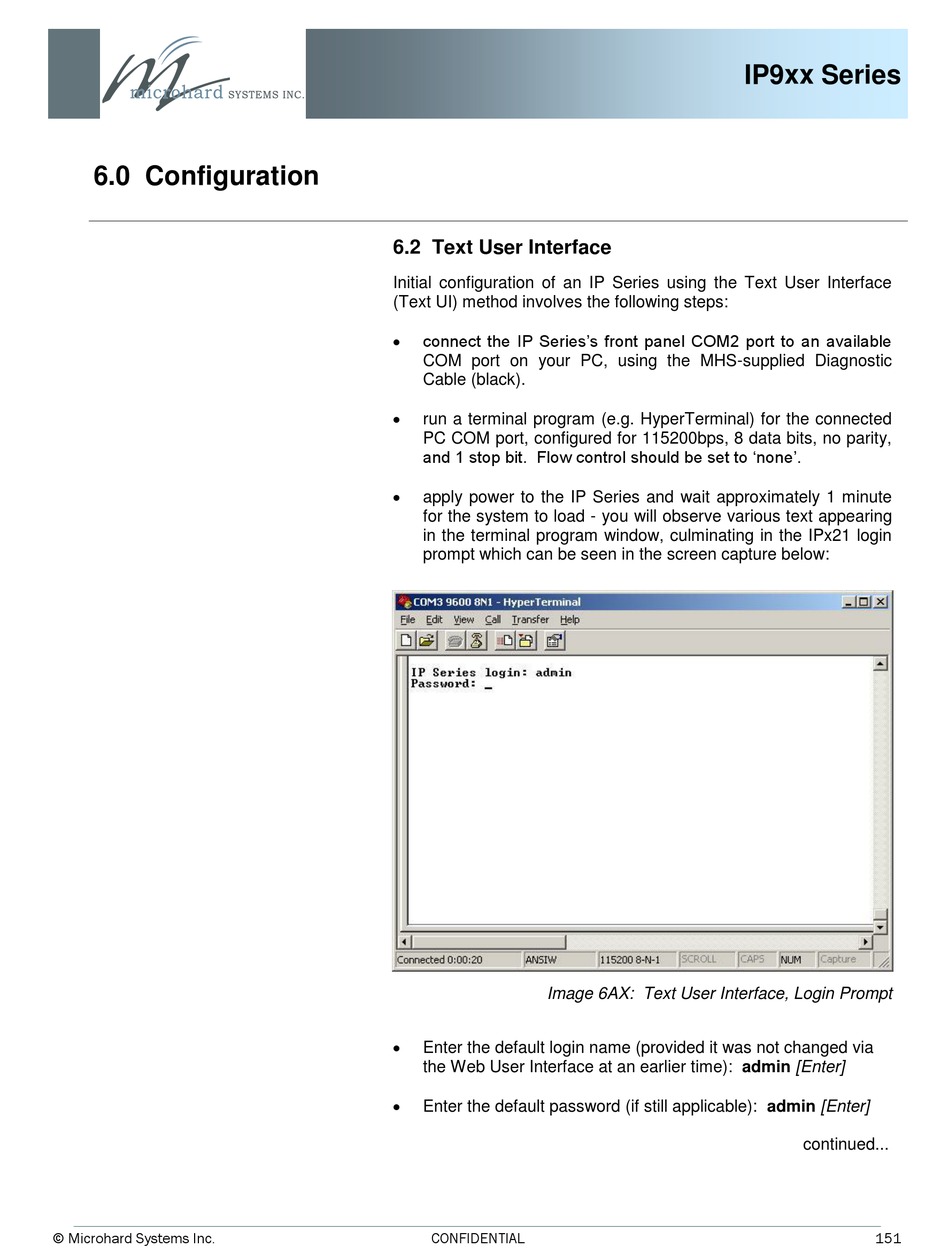

Image 6AX: Text User Interface, Login Prompt

Enter the default login name (provided it was not changed via
the Web User Interface at an earlier time): admin [Enter]

Enter the default password (if still applicable): admin [Enter]
