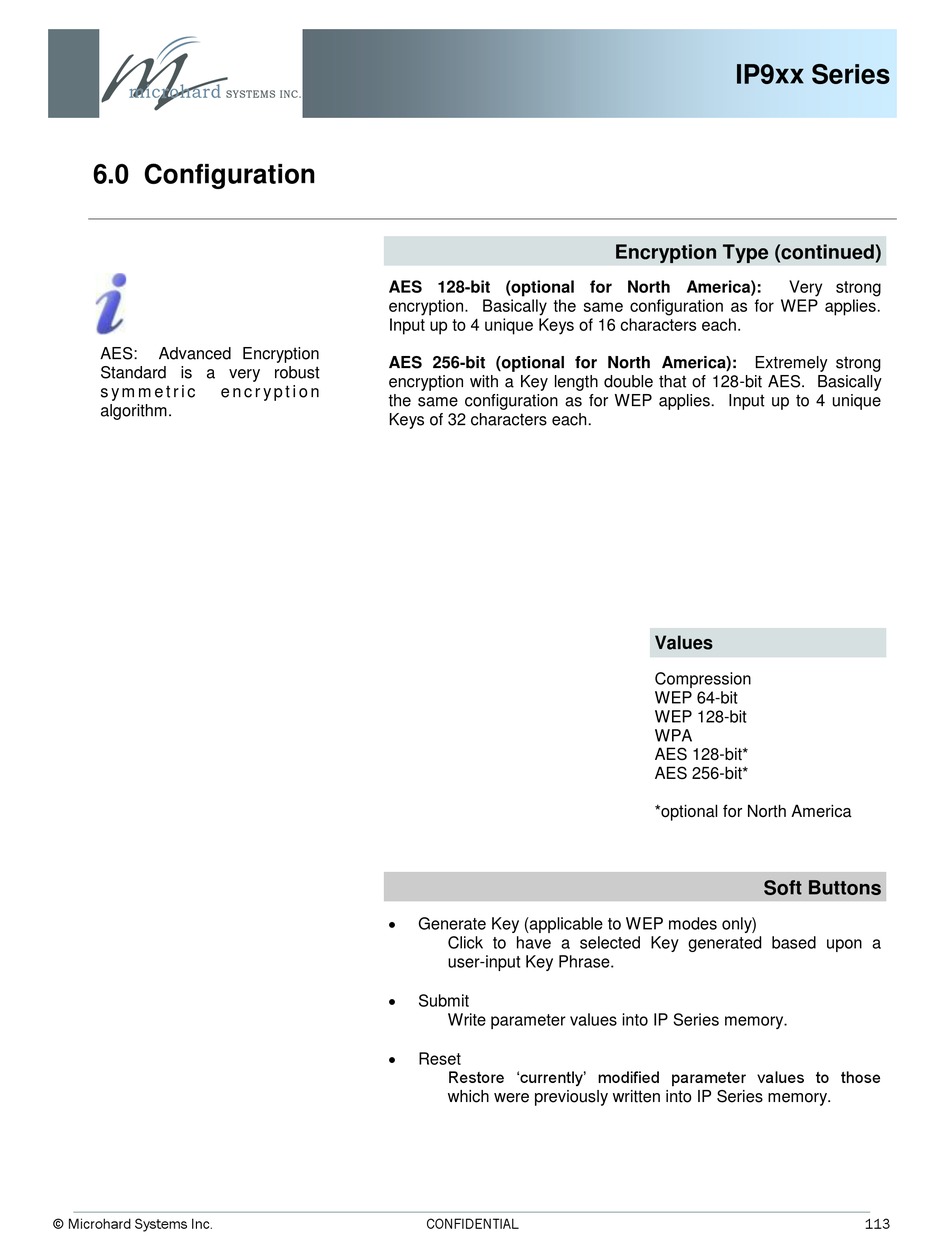

Microhard Systems IP-921 Operating Manual page 113

6.0 Configuration
AES: Advanced Encryption
Standard is a very robust
s y m m e t r i c e n c r y p t i o n
algorithm.
© Microhard Systems Inc.
AES 128-bit (optional for North America):
encryption. Basically the same configuration as for WEP applies.
Input up to 4 unique Keys of 16 characters each.
AES 256-bit (optional for North America):
encryption with a Key length double that of 128-bit AES. Basically
the same configuration as for WEP applies. Input up to 4 unique
Keys of 32 characters each.

Generate Key (applicable to WEP modes only)
Click to have a selected Key generated based upon a
user-input Key Phrase.

Submit
Write parameter values into IP Series memory.

Reset
Restore ‗currently' modified parameter values to those
which were previously written into IP Series memory.
CONFIDENTIAL
IP9xx Series
Encryption Type (continued)
Very strong
Extremely strong
Values
Compression
WEP 64-bit
WEP 128-bit
WPA
AES 128-bit*
AES 256-bit*
*optional for North America
Soft Buttons
113
