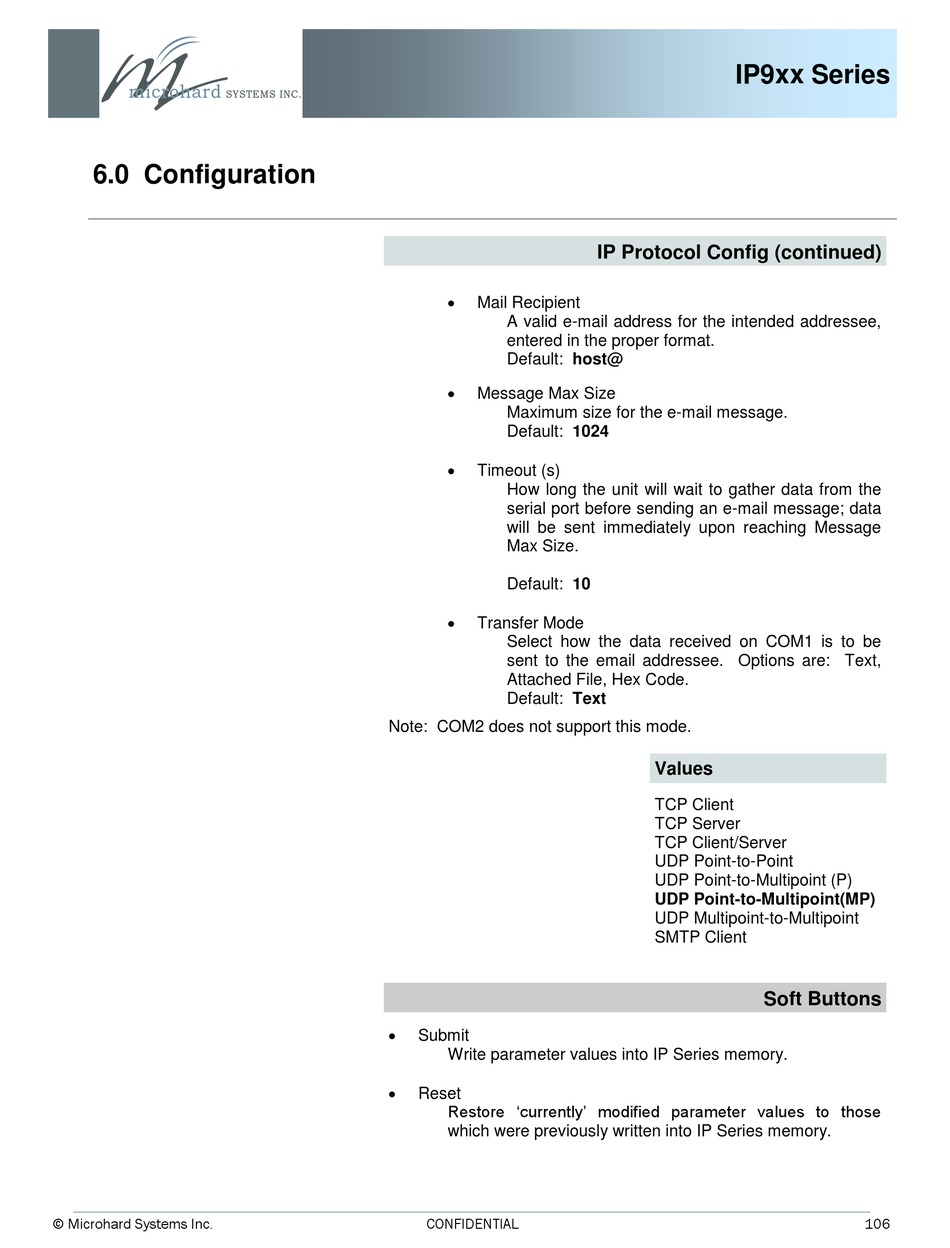

Microhard Systems IP-921 Operating Manual page 106

6.0 Configuration
© Microhard Systems Inc.

Mail Recipient
A valid e-mail address for the intended addressee,
entered in the proper format.
Default: host@

Message Max Size
Maximum size for the e-mail message.
Default: 1024

Timeout (s)
How long the unit will wait to gather data from the
serial port before sending an e-mail message; data
will be sent immediately upon reaching Message
Max Size.
Default: 10

Transfer Mode
Select how the data received on COM1 is to be
sent to the email addressee. Options are: Text,
Attached File, Hex Code.
Default: Text
Note: COM2 does not support this mode.

Submit
Write parameter values into IP Series memory.

Reset
Restore ‗currently' modified parameter values to those
which were previously written into IP Series memory.
CONFIDENTIAL
IP9xx Series
IP Protocol Config (continued)
Values
TCP Client
TCP Server
TCP Client/Server
UDP Point-to-Point
UDP Point-to-Multipoint (P)
UDP Point-to-Multipoint(MP)
UDP Multipoint-to-Multipoint
SMTP Client
Soft Buttons
106
