Chapter 3
Assembling and Mounting a Cisco TelePresence System 1100
b.
Tip
These labels keep light from showing through the oval cutouts on the rear of the speaker cover.
c.
d.

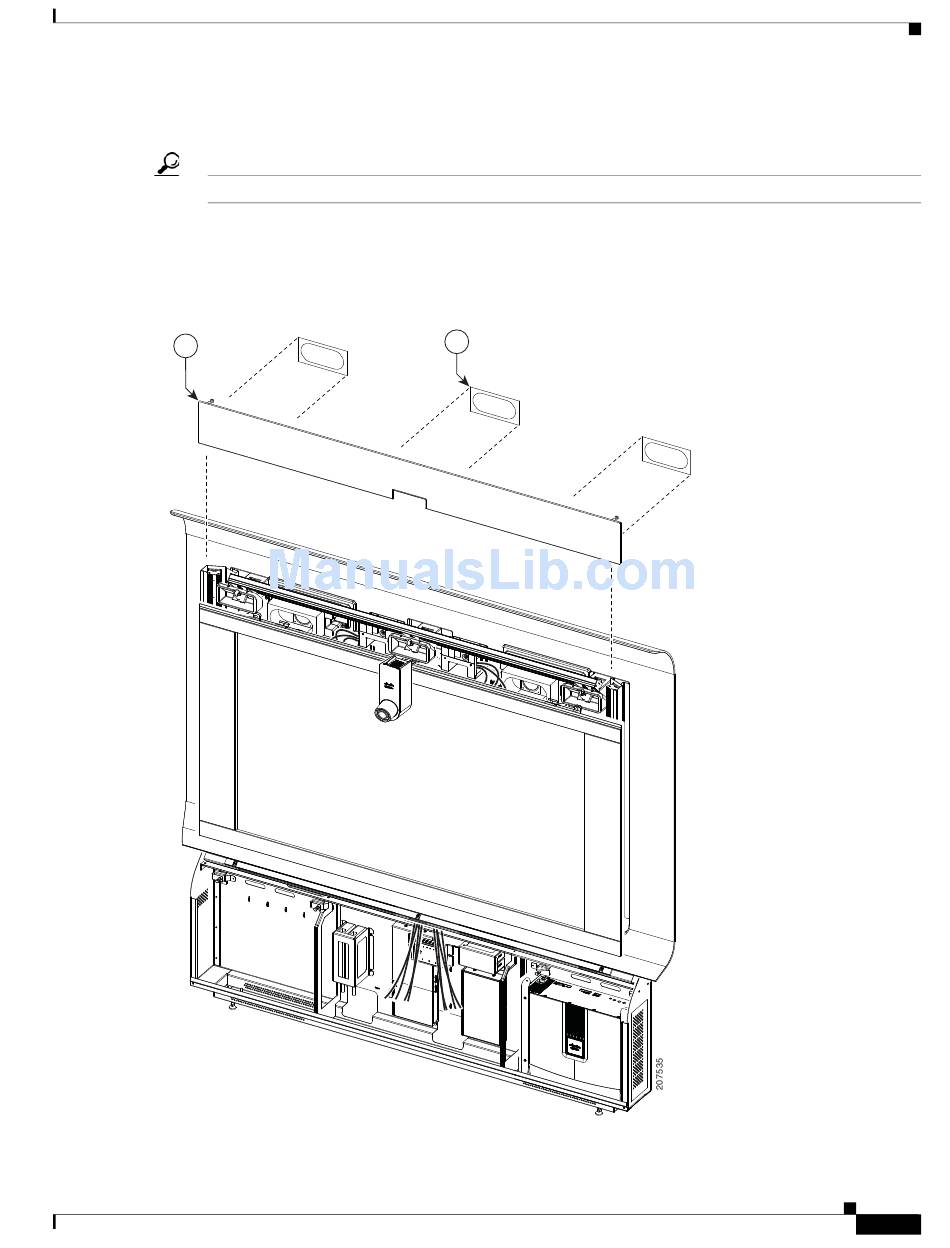

Figure 3-42
Attaching the Speaker Cover Labels and Speaker Cover to the Cabinet
21
OL-19695-01
Place the speaker cover labels on the rear of the speaker cover to hide the three oval cutouts on the
rear of the speaker cover.
Slide the cover from the top into its slot in the bezel.
Tighten the knob on each end of the speaker cover to secure it to the light reflector.
Cisco TelePresence System 1100 Assembly, First-Time Setup, and Field Replaceable Unit Guide
Completing Installation and Cabling of the CTS 1100
34
3-53
