Chapter 3 Assembling and Mounting a Cisco TelePresence System 1100
Step 4 Install the metal sliders with studs and spacing strips by completing the following steps:
a.
b.
c.

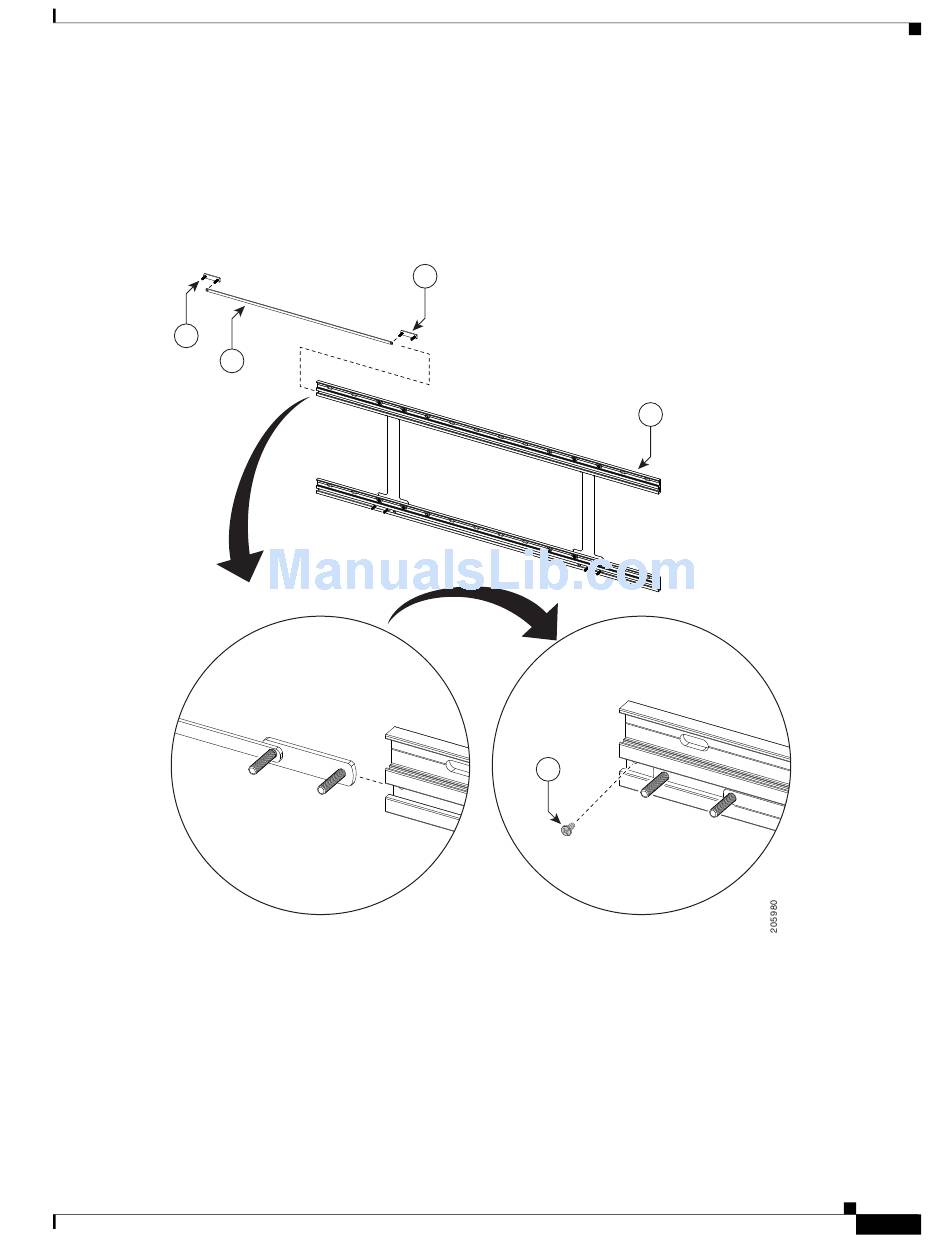

Figure 3-19 Installing Nylon Spacing Strips and Metal Sliders into Wall Bracket
5
6
OL-19695-01
Insert two sliders into the lower slots of each horizontal railing.
Place the horizontal spacing strip over the inside stud of each slider.
Insert a screw into each end of the rail after you insert the sliders and spacing strips.
