Assembling and Mounting a Cisco TelePresence System 1100
Attaching the Mounting Bracket to a Wall With Wooden Studs
e.
Snap off the plastic straps that protrude from the wall until the anchors are flush with the wall. Push
the straps from side to side to snap them off.

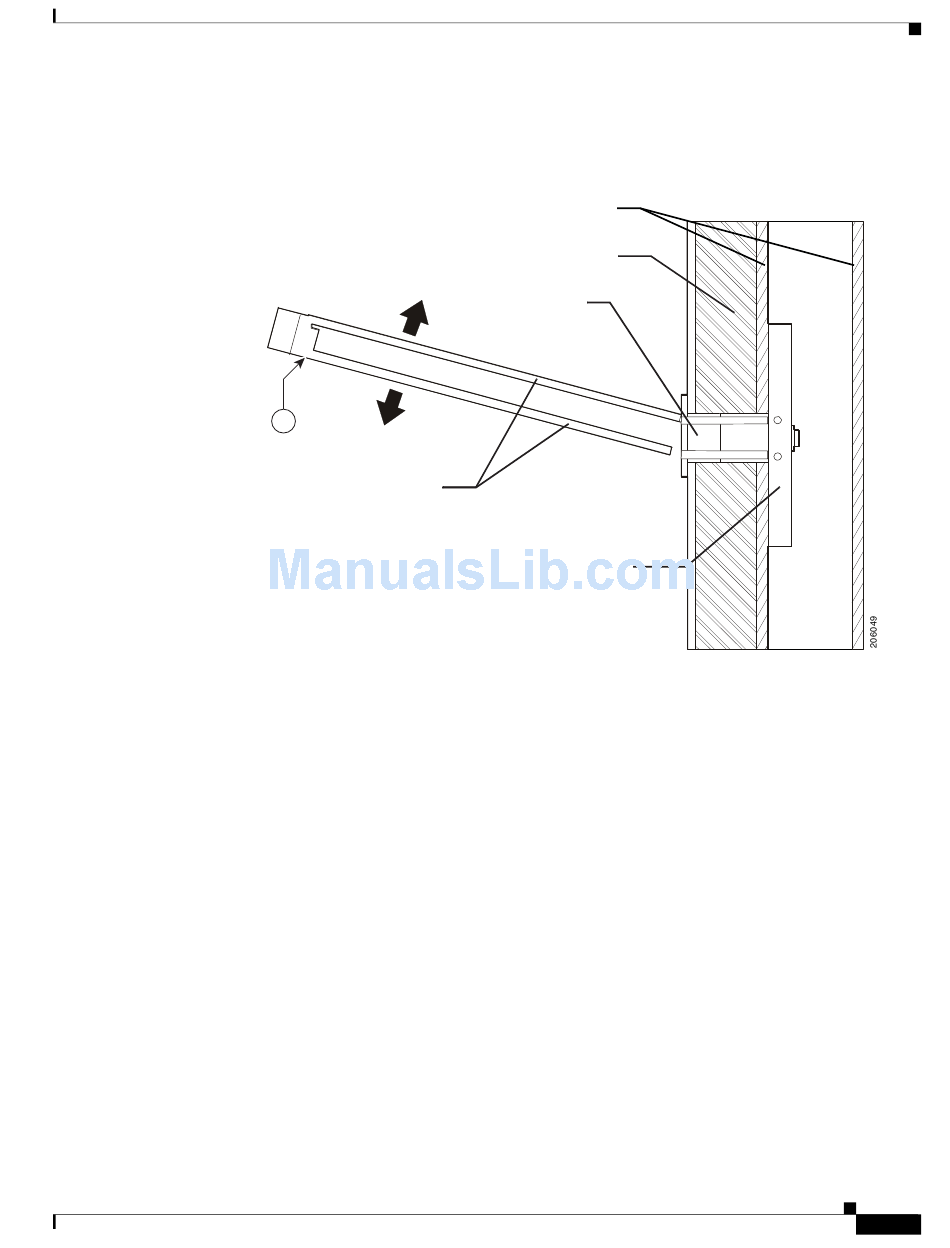

Figure 3-5
Removing the Plastic Straps
Metal Stud
Drywall
Plastic Cap
1
Plastic Straps
Anchor Metal Channel
(SIDE VIEW)
Cisco TelePresence System 1100 Assembly, First-Time Setup, and Field Replaceable Unit Guide
3-11
OL-19695-01
