Setting Up the Camera
Click Start to start the camera test.
Step 5

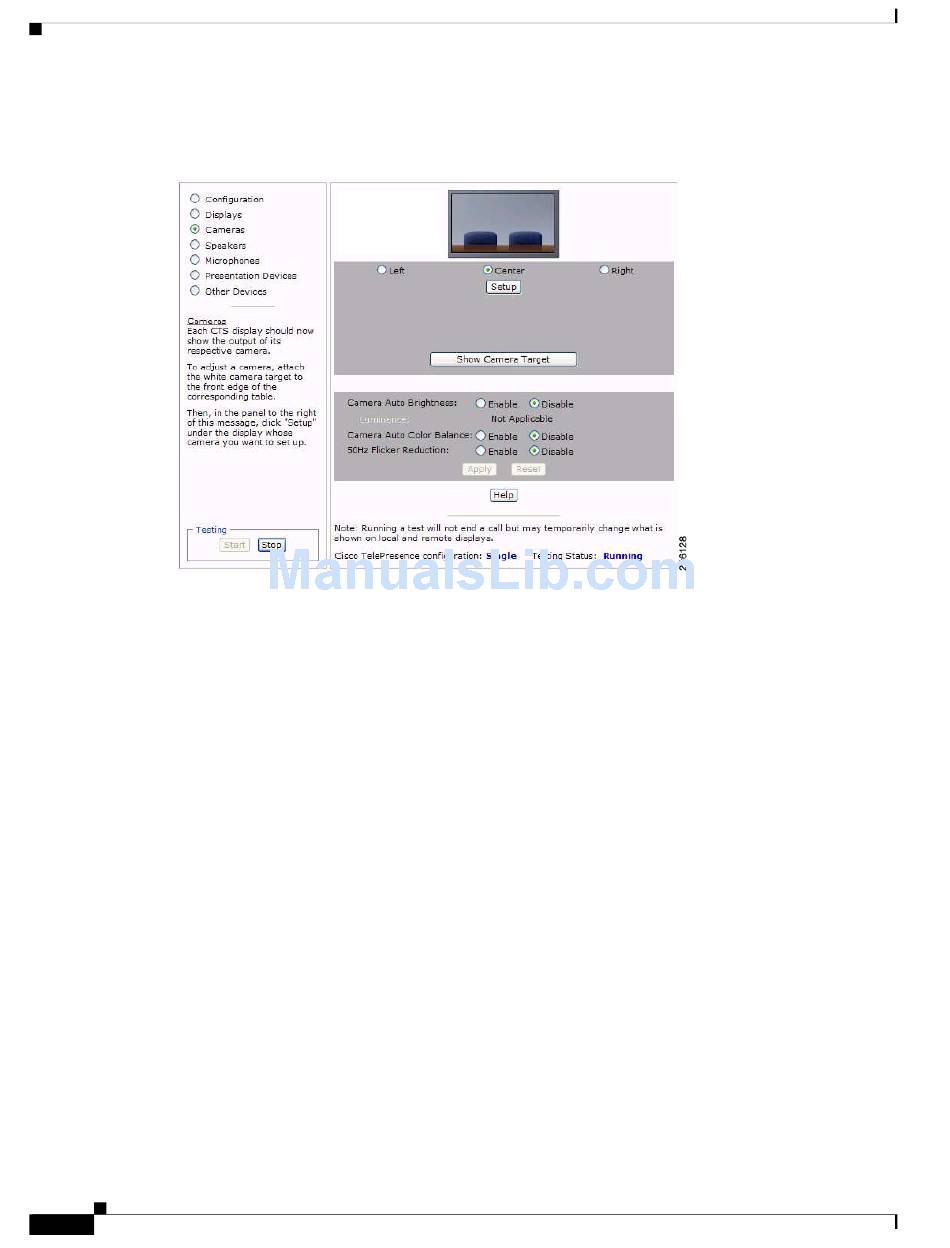

Figure 4-13 Camera Target Menu
The display projects the image from the camera, with the addition of a red plus sign in the center of the
display.
Select the Auto Brightness, Auto Color Balance and 50Hz Flicker reduction by completing the following
Step 6
steps.
a.
b.
c.
Cisco TelePresence System 1100 Assembly, First-Time Setup, and Field Replaceable Unit Guide
4-20
In the Auto Brightness field, perform one of the following actions:
If the room uses outside lighting, or has any other conditions that could cause variable room
•
lighting, click the Enable radio button.
If your room lighting is not variable, leave the default value.
•
In the Auto Color Balance field, perform one of the following actions:
If the room uses outside lighting, or has any other conditions that could cause variable room
•
lighting, click the Enable radio button.
If your room lighting is not variable, leave the default value.
•
In the 50 Hz Flicker Reduction field, leave the default value of Disabled.
