Assembling and Mounting a Cisco TelePresence System 1100
Completing Installation and Cabling of the CTS 1100
Step 8
Attach the speaker cover to the CTS 1100 assembly by completing the following actions:
Attach the camera gap cover to the cutout in the speaker cover that goes around the camera, then
a.
secure it to the speaker cover with the Allen cap screws.

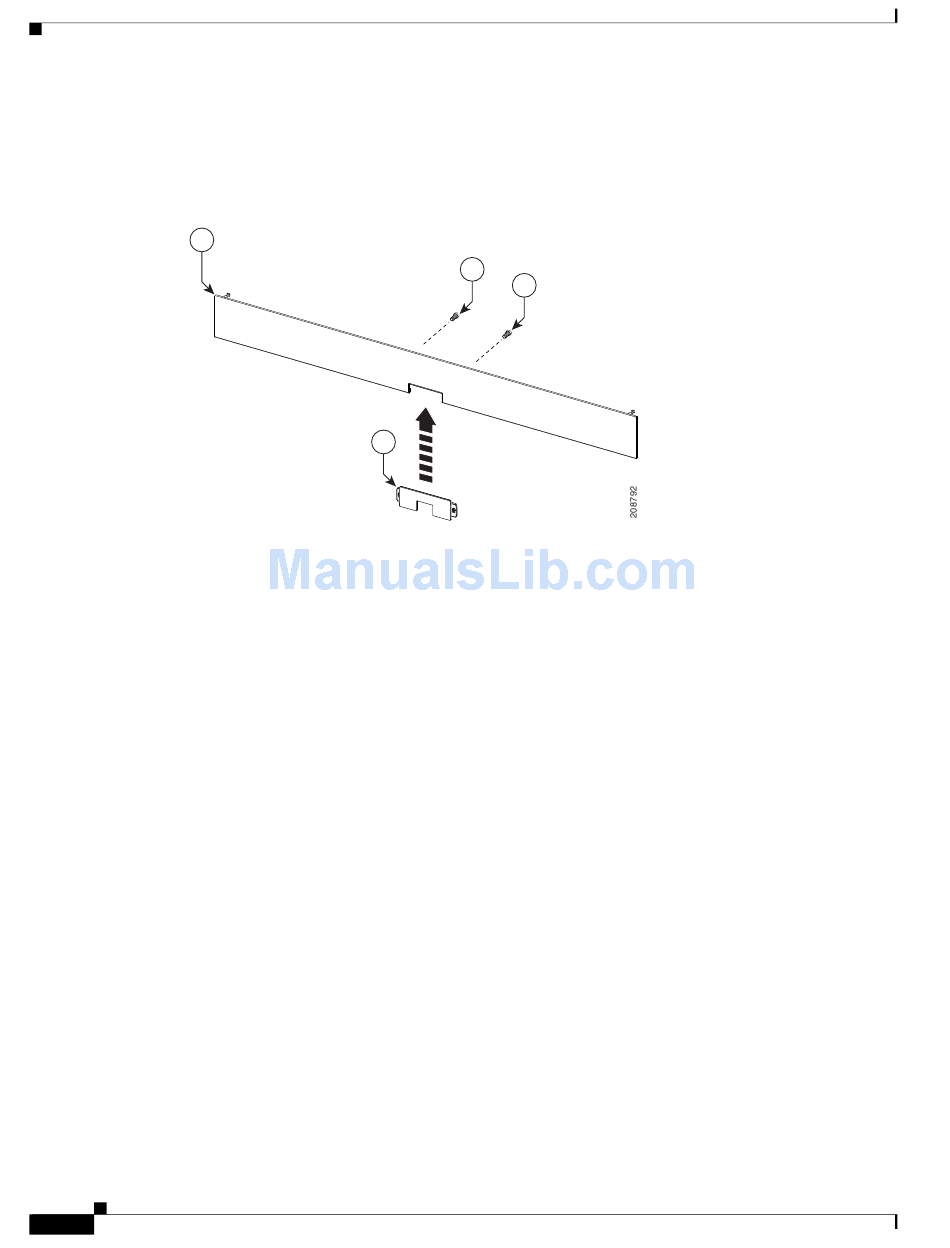

Figure 3-41
Attaching the Camera Gap Cover to the Speaker Cover
21
36
36
35
Cisco TelePresence System 1100 Assembly, First-Time Setup, and Field Replaceable Unit Guide
3-52
OL-19695-01
