Chapter 3
Assembling and Mounting a Cisco TelePresence System 1100
Attaching the Light Reflector, Display, and Cabinet
Step 8
Hang the display mounting plate on the metal sliders, then attach the outer studs of each slider to the
mounting plate using the screws and washers.

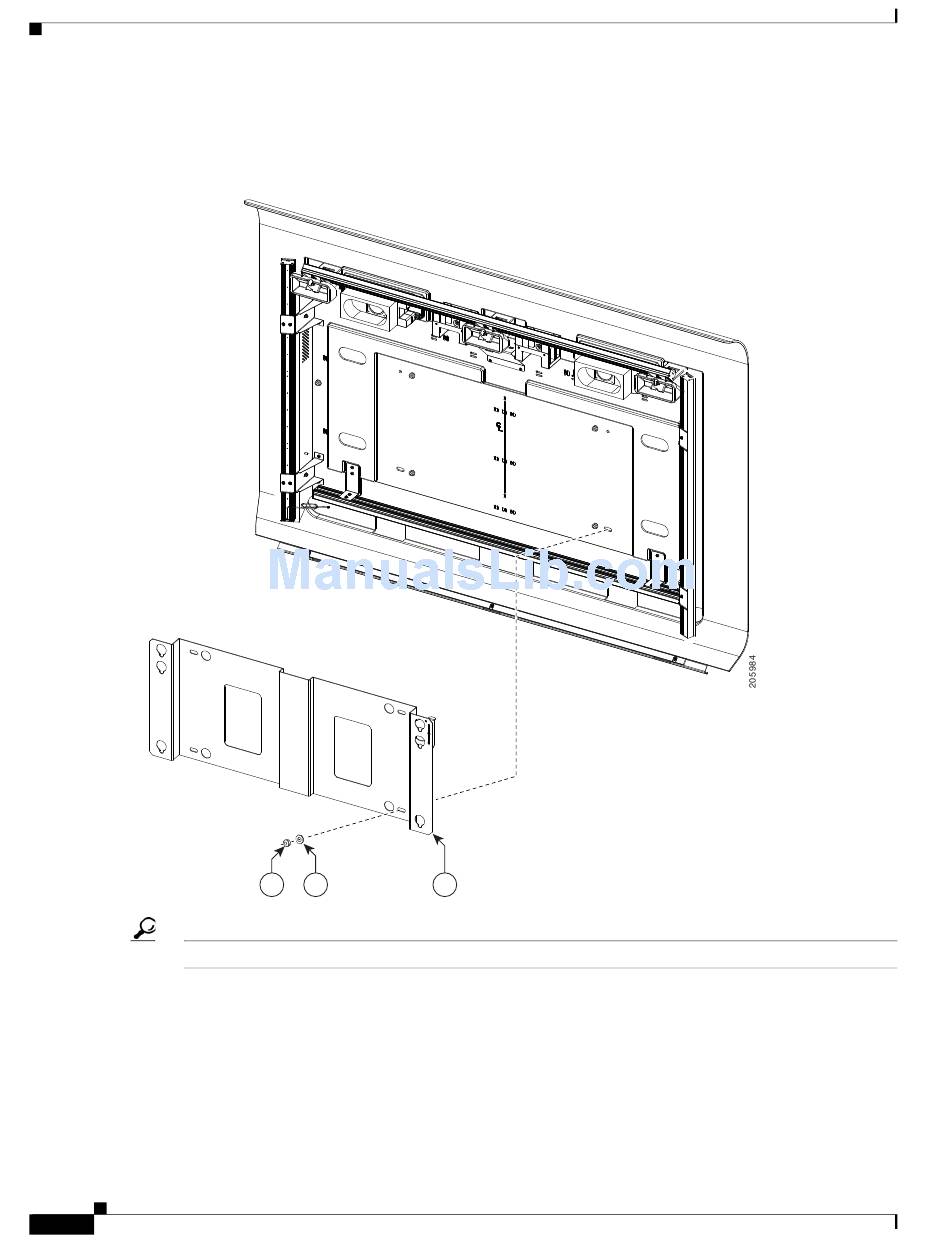

Figure 3-27
Attaching the Display Mounting Plate to the Metal Sliders
8
3
13
Tip
Do not pinch any of the cables in the light reflector when you install the mounting plate.
Cisco TelePresence System 1100 Assembly, First-Time Setup, and Field Replaceable Unit Guide
3-34
OL-19695-01
