Replacing the Auxiliary Control Unit—Part Number CTS-LIGHT-CTRL=

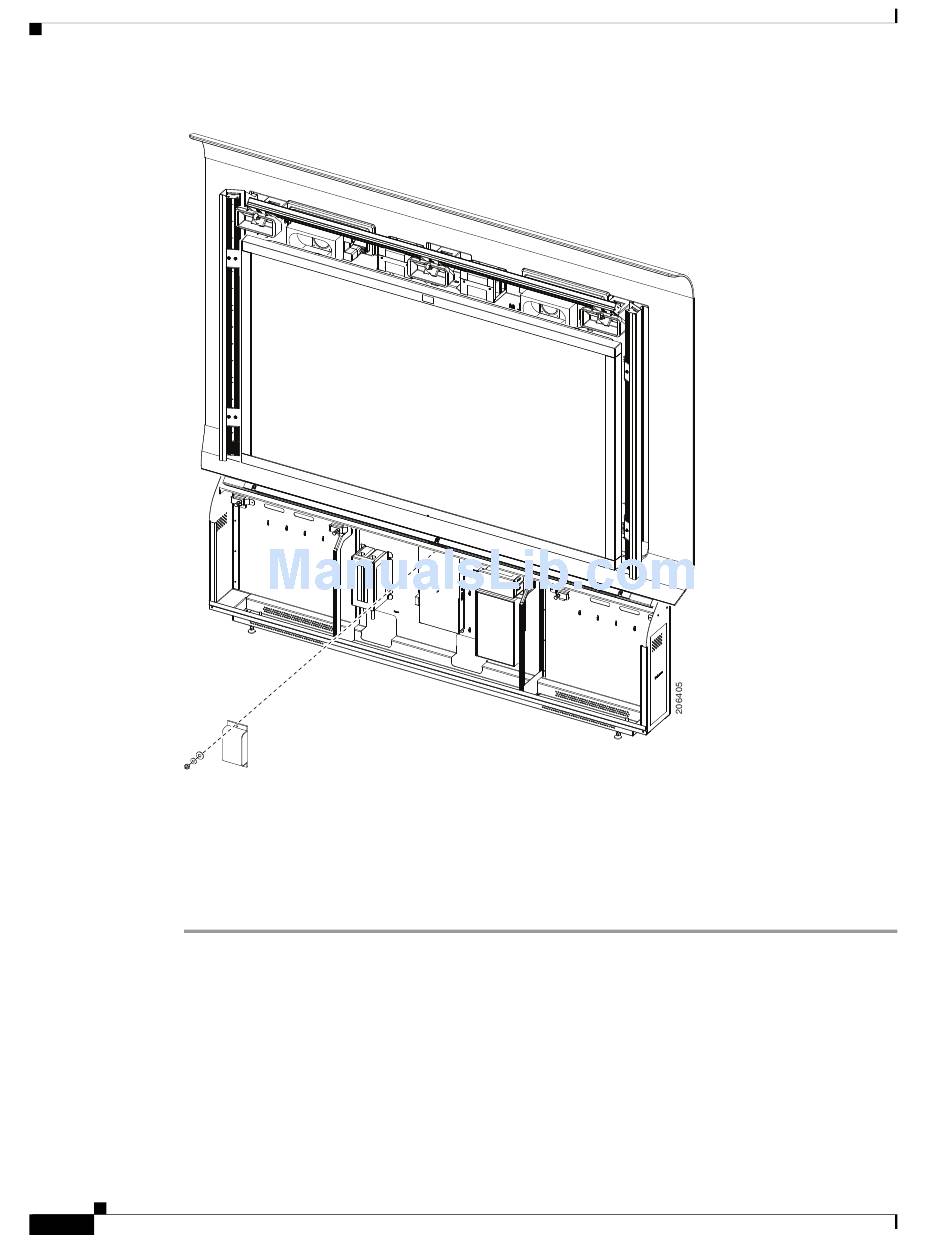

Figure 6-2
Removing the Dimmer Box
Remove the new dimmer box from its packaging.
Step 4
Place the new dimmer box in its place on top of the auxiliary control unit.
Step 5
Secure the dimmer box using the screws and washers.
Step 6
Attach the cables to the dimmer box.
Step 7
Replace the cabinet cover.
Step 8
Replacing the Auxiliary Control Unit—Part Number
CTS-LIGHT-CTRL=
The auxiliary control unit controls the lighting for the CTS 1100. This section describes the procedure
to remove and replace the auxiliary control unit and contains the following topics:
•
Cisco TelePresence System 1100 Assembly, First-Time Setup, and Field Replaceable Unit Guide
6-6
Required Tools, page 6-7
Chapter 6
Field-Replaceable Unit Guide
OL-19695-01
