Chapter 3
Assembling and Mounting a Cisco TelePresence System 1100
Attaching the Light Reflector, Display, and Cabinet
Step 4
Route the cables through the lower slot of the light reflector so that they exit through the lower slot in
the reflector.

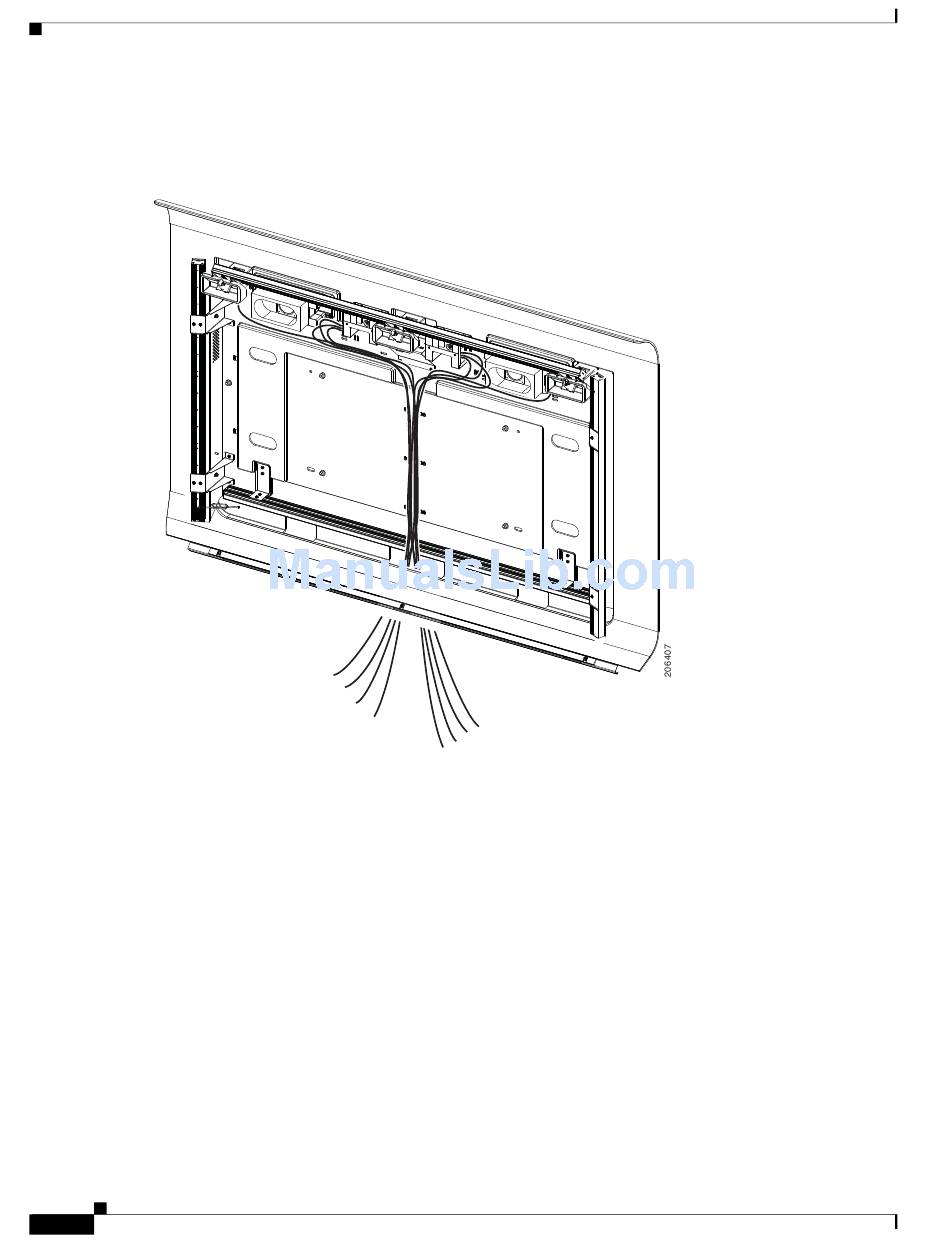

Figure 3-23
Routing Cables Through the Lower Slot of the Light Reflector
Cisco TelePresence System 1100 Assembly, First-Time Setup, and Field Replaceable Unit Guide
3-30
OL-19695-01
