10. Specifications

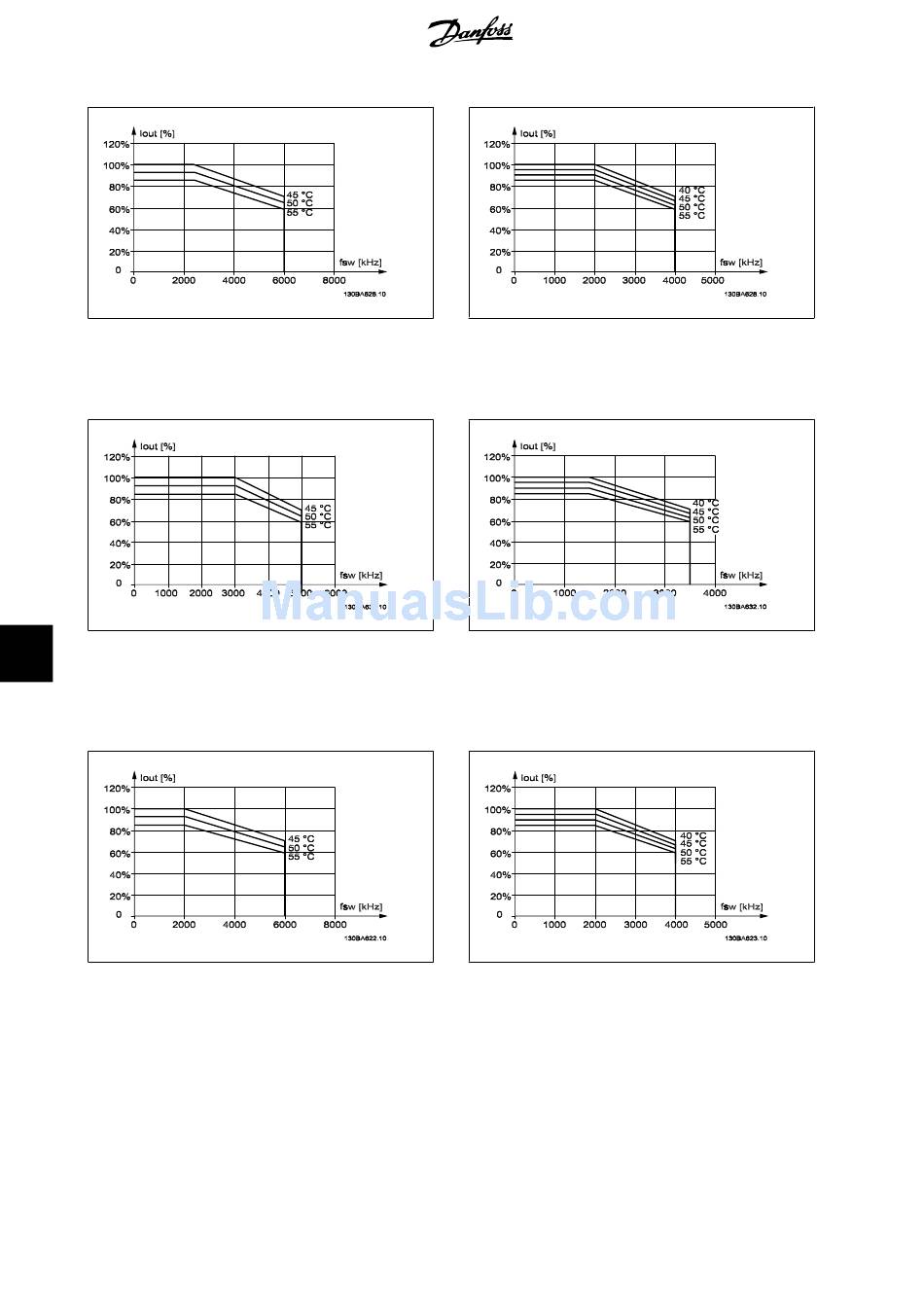

60 AVM - Pulse Width Modulation, 525 - 600 V (except P315)
Illustration 10.11: Derating of I
D at 600 V, using 60 AVM in Normal torque mode (110% over torque).
Note: not valid for P315.
60 AVM - Pulse Width Modulation, 525 - 600 V, P315
10
Illustration 10.13: Derating of I
D at 600 V, using 60 AVM in Normal torque mode (110% over torque).
only
Note: P315 .
E enclosures
60 AVM - Pulse Width Modulation, 380 - 480 V
Illustration 10.15: Derating of I
at 480 V, using 60 AVM in Normal torque mode (110% over torque)
152
for different T for enclosure
out AMB, MAX
for different T for enclosure
out AMB, MAX
for different T for enclosure E
out AMB, MAX
MG.20.M4.02 - VLT
SFAVM - Stator Frequency Asyncron Vector Modulation
Illustration 10.12: Derating of I
D at 600 V, using SFAVM in Normal torque mode (110% over torque).
Note: not valid for P315.
SFAVM - Stator Frequency Asyncron Vector Modulation
Illustration 10.14: Derating of I
D at 600 V, using SFAVM in Normal torque mode (110% over torque).
only
Note: P315 .
SFAVM - Stator Frequency Asyncron Vector Modulation
Illustration 10.16: Derating of I
at 480 V, using SFAVM in Normal torque mode (110% over torque)
®
