VLT AQUA Drive
Operating Instructions
After selecting a parameter group, choose a parameter by means of the
navigation keys.
The middle section on the GLCP display shows the parameter number and
name as well as the selected parameter value.

8.2. Common Used Parameters - Explanations

8.2.1. Main Menu

The Main Menu includes all available parameters in the VLT
All parameters are grouped in a logic way with a group name indicating the function of the parameter group.
All parameters are listed by name and number in the section
All parameters included in the Quick Menus (Q1, Q2, Q3, Q5 and Q6) can be found in the following.
Some of the most used parameters for VLT
For a detailed explanation of all parameters, please refer to the VLT
www.danfoss.com or by ordering at the local Danfoss office.
8.2.2. 0-** Operation / Display
Parameters related to the fundamental functions of the frequency converter, function of the LCP buttons and configuration of the LCP display.
0-01 Language
Option:
* English
[0]
0-20 Display Line 1.1 Small
Option:
[0] None
[37] Display Text 1
[38] Display Text 2
[39] Display Text 3
[89] Date and Time Readout Displays the current date and time.
[953] Profibus Warning Word Displays Profibus communication warnings.
[1005] Readout Transmit Error
Counter
[1006] Readout Receive Error
Counter
[1007] Readout Bus Off Coun-
ter
[1013] Warning Parameter
®
AQUA Drive FC 200 frequency converter.
Parameter Options
®
AQUA Drive applications are also explained in the following section.
®
Function:
Defines the language to be used in the display.
Function:
Select a variable for display in line 1, left position.
No display value selected
Present control word
Enables an individual text string to be written, for display in the LCP or to be read via serial communication.
Enables an individual text string to be written, for display in the LCP or to be read via serial communication.
View the number of CAN control transmission errors since the last power-up.
View the number of CAN control receipt errors since the last power-up.
View the number of Bus Off events since the last power-up.
View a DeviceNet-specific warning word. One separate bit is assigned to every warning.
®
MG.20.M4.02 - VLT is a registered Danfoss trademark
8. How to programme the frequency converter

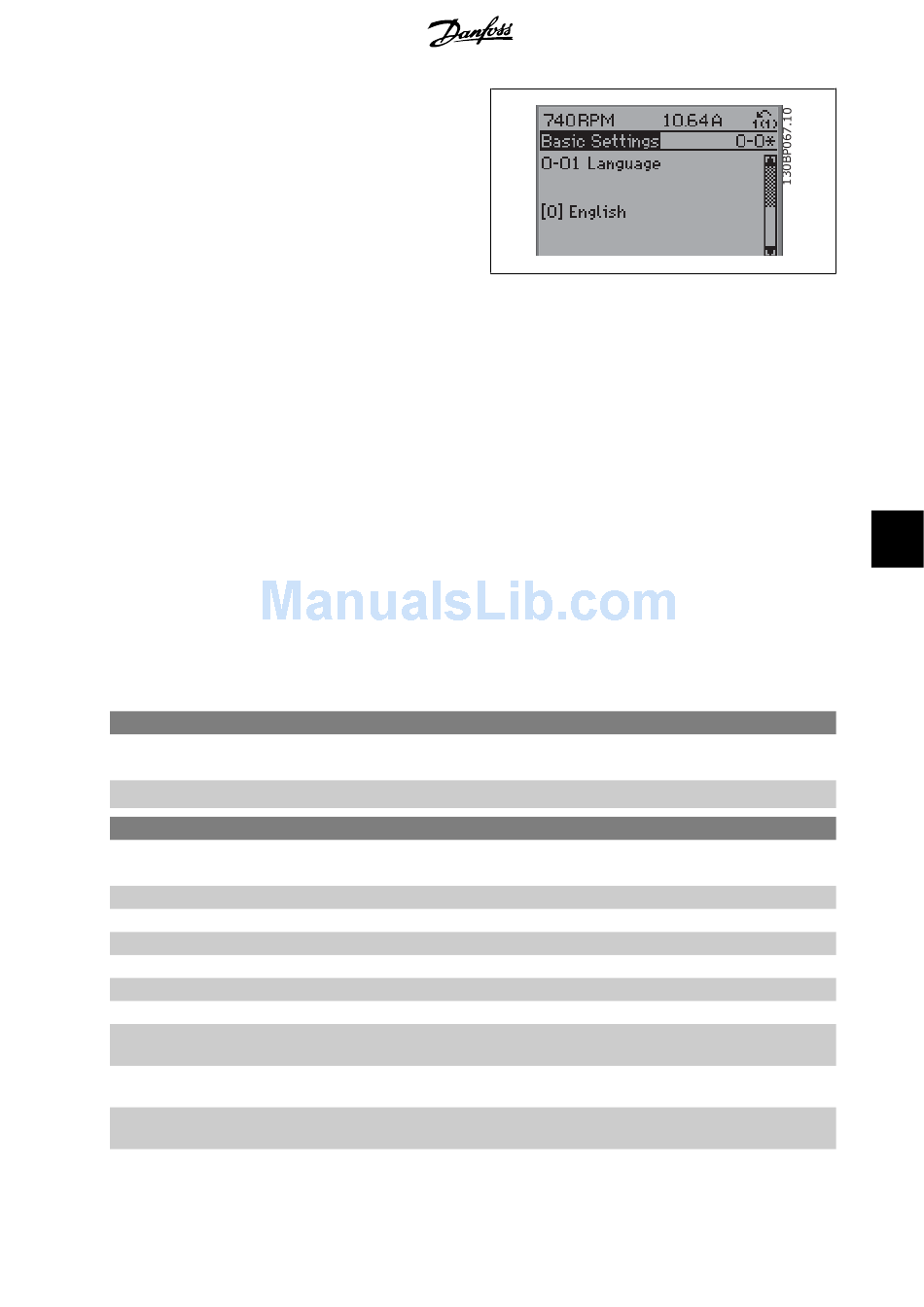

Illustration 8.10: Display example.
in these Operating Instructions.
AQUA Drive Programming Guide MG.20.OX.YY which is available on
