VLT
AQUA Drive
Operating Instructions

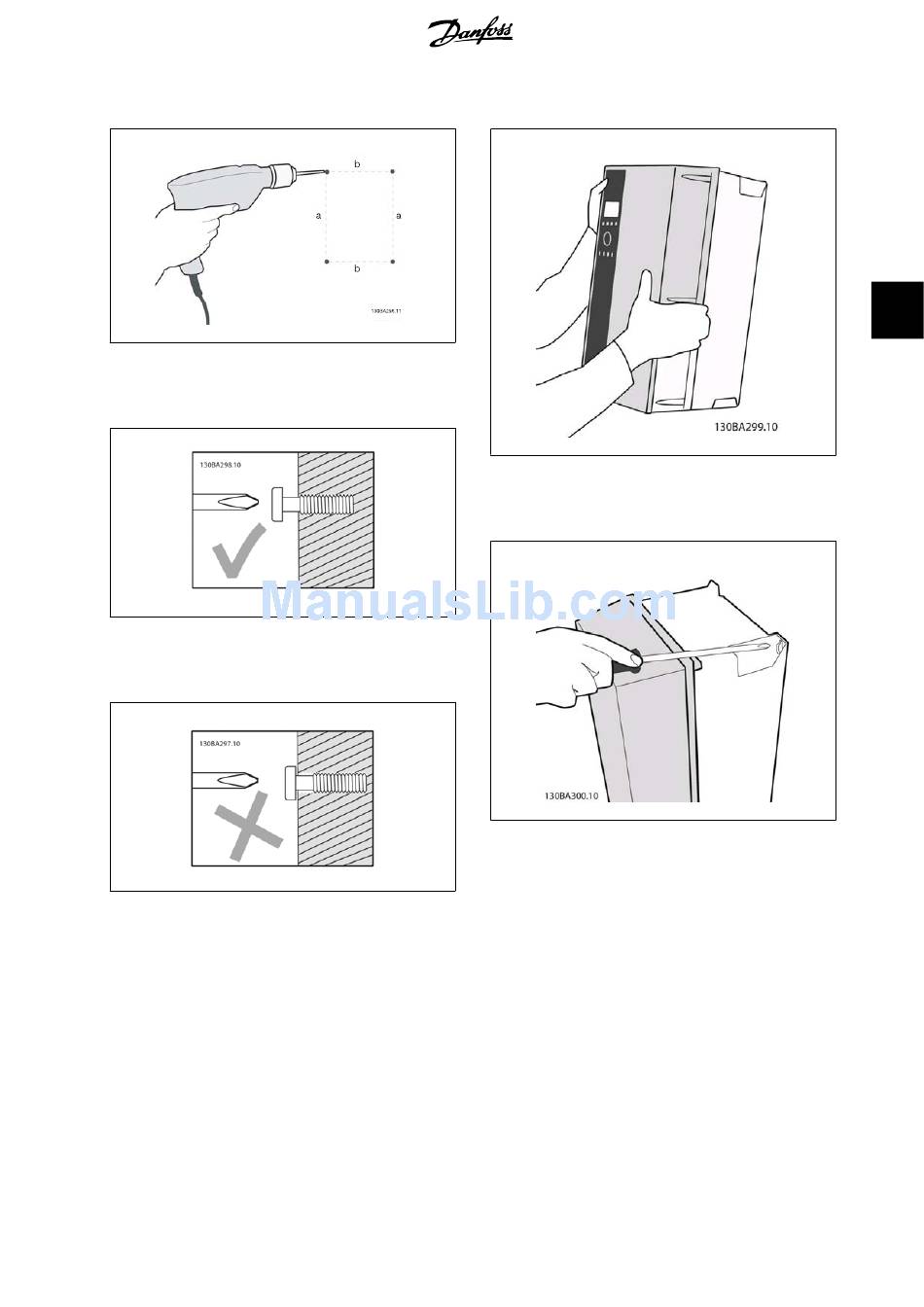

4.2.3. Mounting A5, B1, B2, B3, B4, C1, C2, C3 and C4.
Illustration 4.10: Drilling holes.
Step 1: Drill according to the dimensions in the following table.
Illustration 4.11: Correct mounting of screws
Step 2A: This way it is easy to hang the unit on the screws.
Illustration 4.12: Wrong mounting of screws
Step 2B: Do not tighten screws completely.
Illustration 4.13: Mounting of unit.
Step 3: Lift the unit onto the screws.
Illustration 4.14: Tightening of screws
Step 4: Tighten screws completely.
®
MG.20.M4.02 - VLT
is a registered Danfoss trademark
4. Mechanical installation
21
4
