5. Electrical installation
5

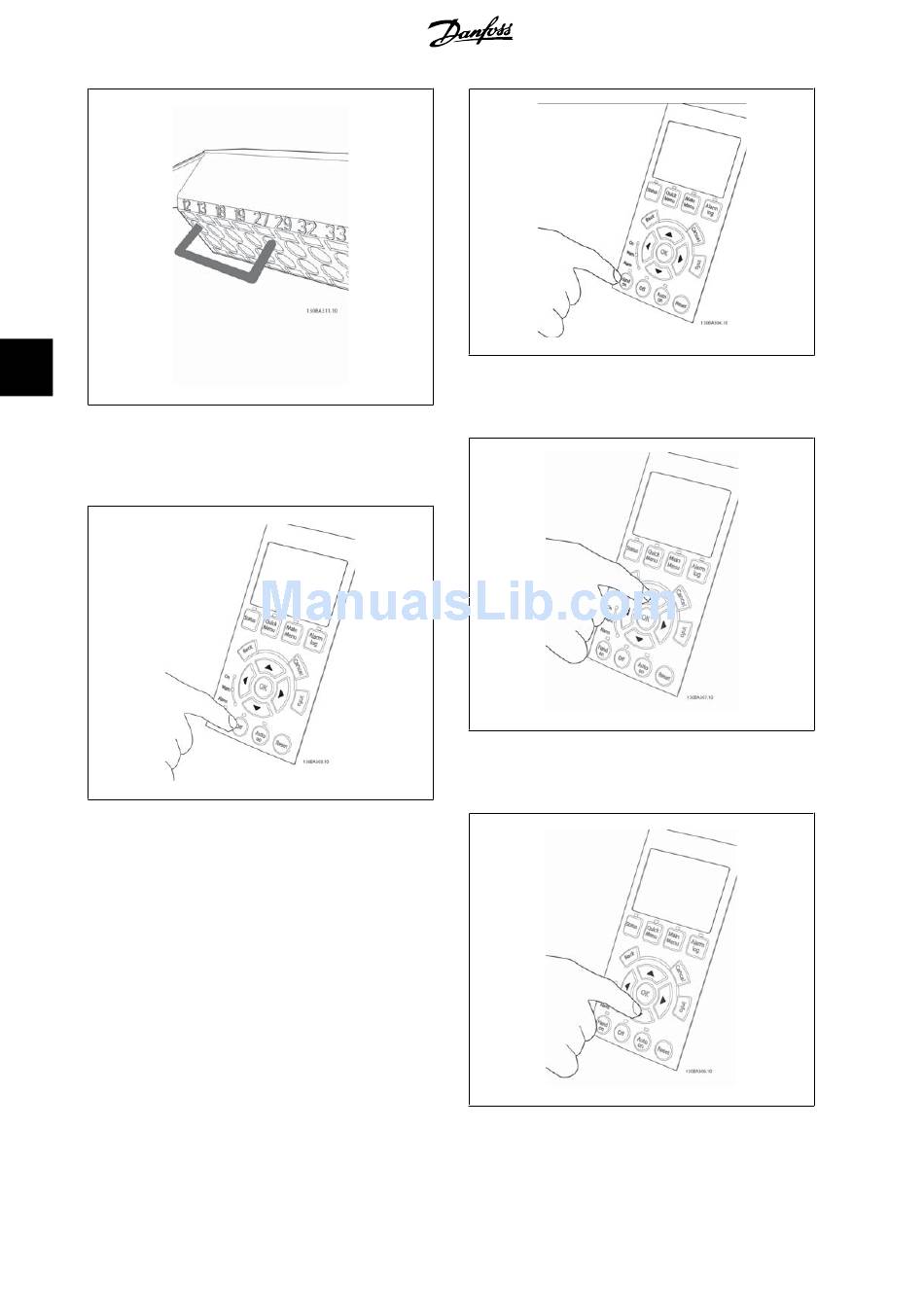

Illustration 5.23:
Step 3: Insert the other end in terminal 12 or 13. (Note: For units with
Safe Stop function, the existing jumper between terminal 12 and 37
should not be removed for the unit to be able to run!)
Illustration 5.24:
Step 4: Power-up the unit and press the [Off] button. In this state the
motor should not rotate. Press [Off] to stop the motor at any time. Note
the LED at the [OFF] button should be lit. If alarms or warnings are
flashing, please see chapter 7 regarding these.
38
Illustration 5.25:
Step 5: By pressing the [Hand on] button, the LED above the button
should be lit and the motor may rotate.
Illustration 5.26:
Step 6: The speed of the motor can be seen in the LCP. It can be
adjusted by pushing the up
Illustration 5.27:
Step 7: To move the cursor, use the left
This enables changing the speed in larger increments.
®
MG.20.M4.02 - VLT is a registered Danfoss trademark
®
VLT AQUA Drive
Operating Instructions
and down arrow buttons.
▲ ▲
and right arrow buttons.
◄ ◄
