5. Electrical installation
5.2. Final optimization and test
5.2.1. Final optimization and test
To optimize motor shaft performance and optimize the frequency converter for the connected motor and installation, please follow these steps. Ensure
that frequency converter and motor are connected, and power is applied to frequency converter.
NB!
Before power up ensure that connected equipment is ready for use.
Step 1. Locate motor name plate.
5
NB!
The motor is either star- (Y) or delta- connected (Δ). This information is located on the motor name plate data.

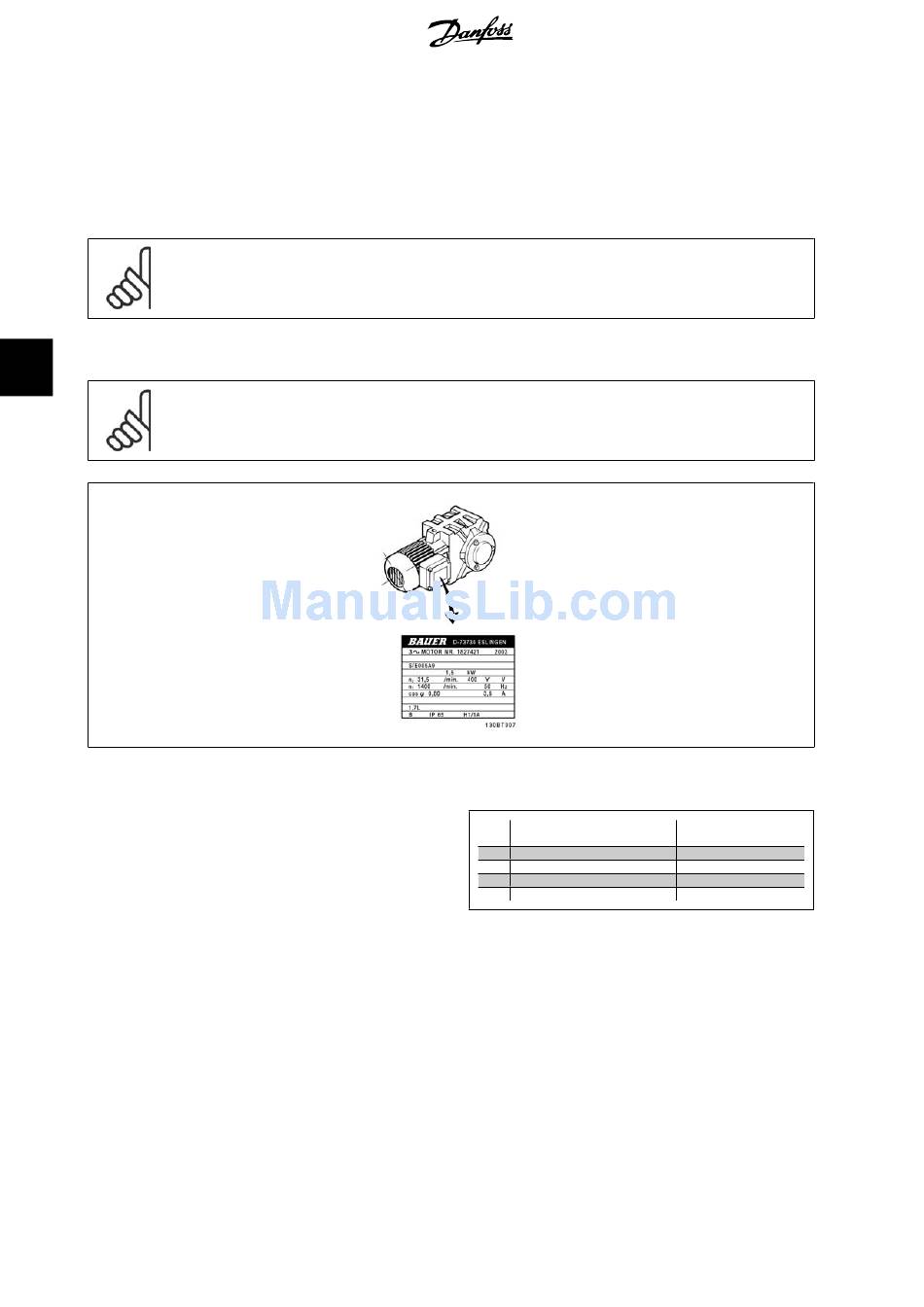

Illustration 5.33: Motor name plate example
Step 2. Enter motor name plate data in following parameter list.
To access list first press [QUICK MENU] key then select "Q2 Quick Setup".
42
1. Motor Power [kW]
or Motor Power [HP]
2. Motor Voltage
3. Motor Frequency
4. Motor Current
5. Motor Nominal Speed
Table 5.8: Motor related parameters
®
MG.20.M4.02 - VLT is a registered Danfoss trademark
®
VLT AQUA Drive
Operating Instructions
par. 1-20
par. 1-21
par. 1-22
par. 1-23
par. 1-24
par. 1-25
