8. How to programme the frequency converter

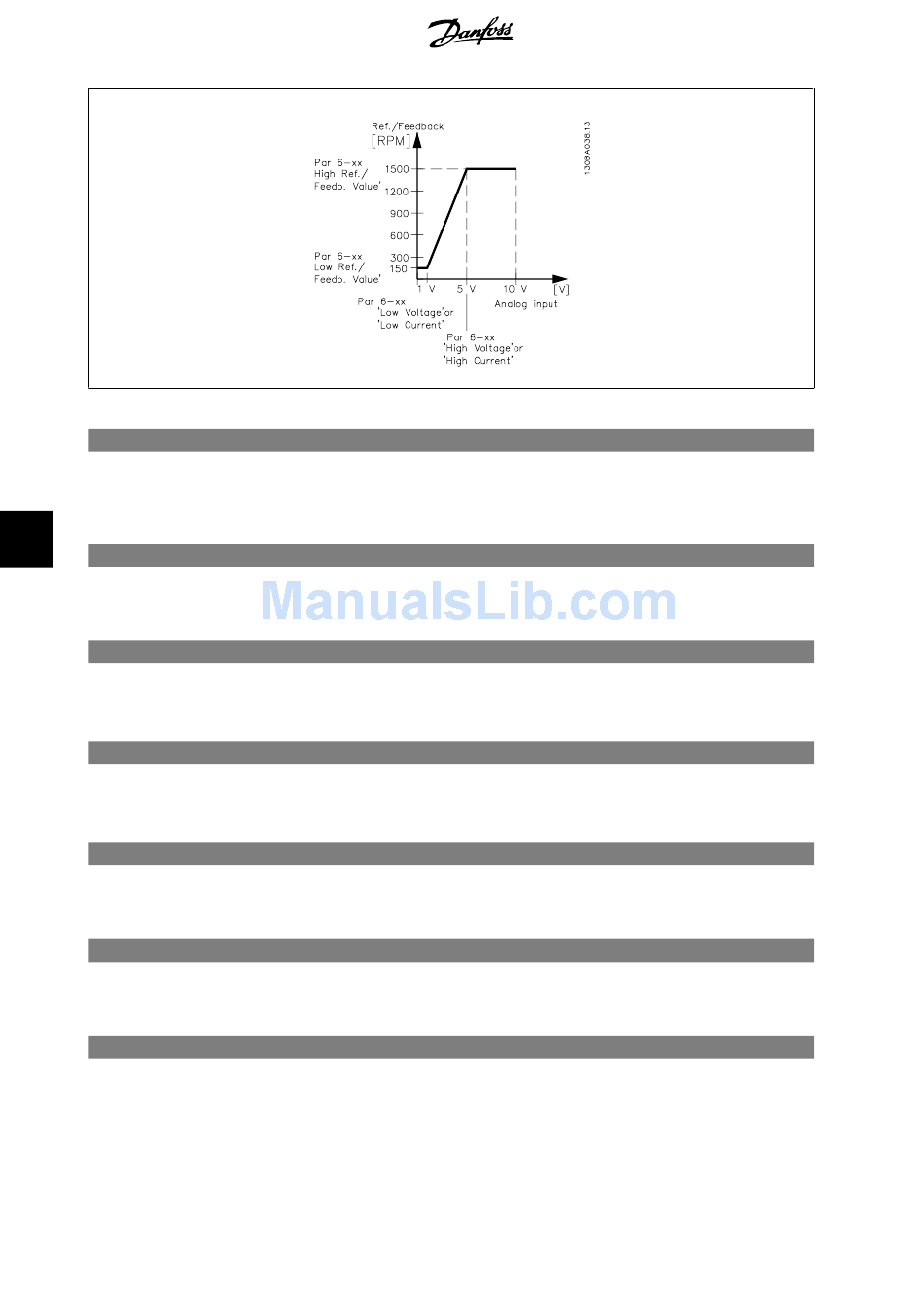

6-10 Terminal 53 Low Voltage
Range:
*
0.07V [0.00 - par. 6-11]
8
6-11 Terminal 53 High Voltage
Range:
*
10.0V [Par. 6-10 to 10.0 V]
6-14 Terminal 53 Low Ref./Feedb. Value
Range:
*
0.000 Unit [-1000000.000 to par.
6-15]
6-15 Terminal 53 High Ref./Feedb. Value
Range:
*
100.000 Unit [Par. 6-14 to
1000000.000]
6-20 Terminal 54 Low Voltage
Range:
*
0.07V [0.00 – par. 6-21]
6-21 Terminal 54 High Voltage
Range:
*
10.0V [Par. 6-20 to 10.0 V]
6-24 Terminal 54 Low Ref./Feedb. Value
Range:
*
0.000 Unit [-1000000.000 to par.
6-25]
82
Function:
Enter the low voltage value. This analog input scaling value should correspond to the low reference/feedback
value set in par. 6-14.
Function:
Enter the high voltage value. This analog input scaling value should correspond to the high reference/feedback
value set in par. 6-15.
Function:
Enter the analog input scaling value that corresponds to the low voltage/low current set in par. 6-10 and par.
6-12.
Function:
Enter the analog input scaling value that corresponds to the high voltage/high current value set in par. 6-11 and
par. 6-13.
Function:
Enter the low voltage value. This analog input scaling value should correspond to the low reference/feedback
value, set in par. 6-24.
Function:
Enter the high voltage value. This analog input scaling value should correspond to the high reference/feedback
value set in par. 6-25.
Function:
Enter the analog input scaling value that corresponds to the low voltage/low current value set in par. 6-20 and
par. 6-22.
®
