8. How to programme the frequency converter
It is recommended to do the set-up in the order listed.

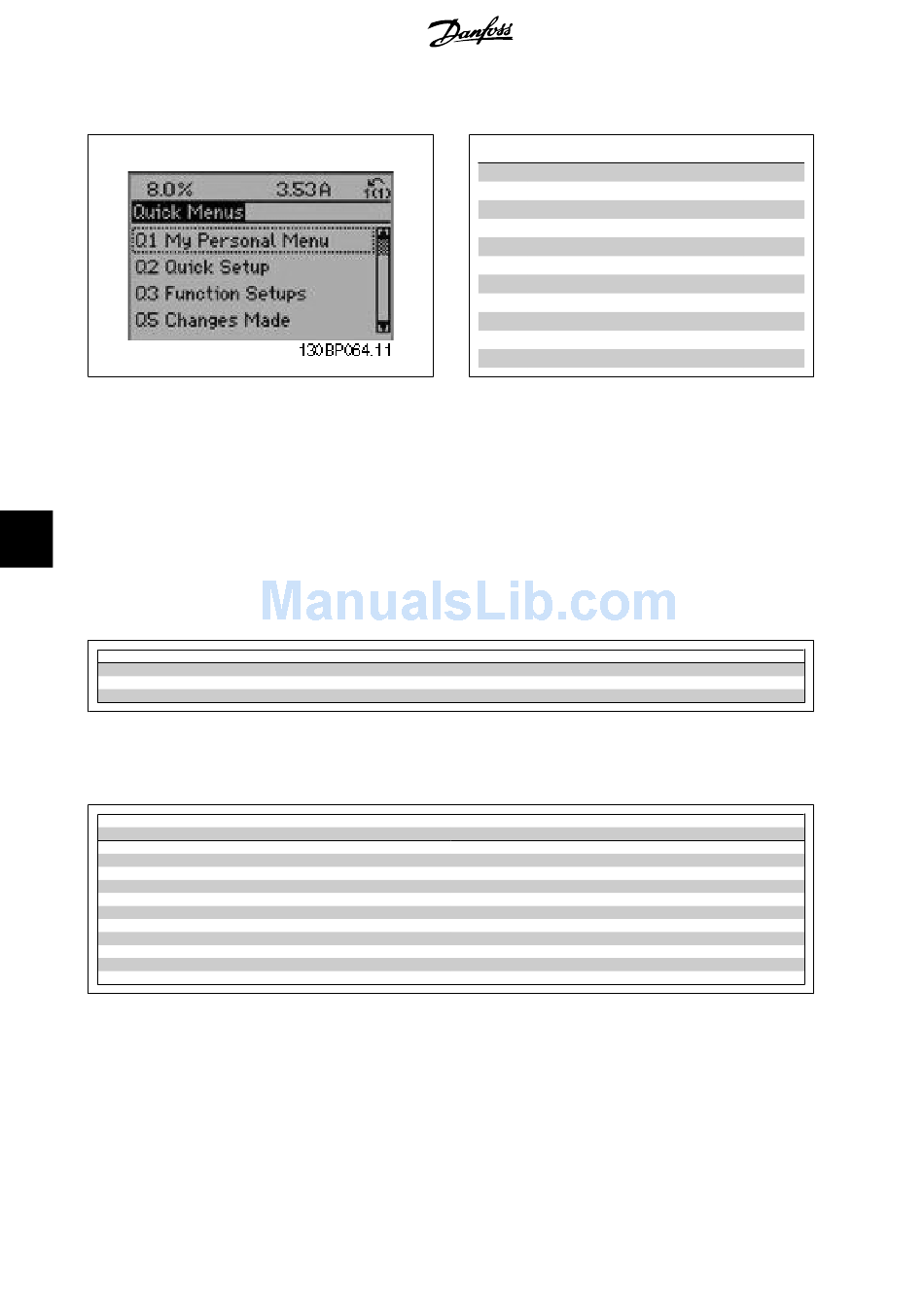

Illustration 8.1: Quick menu view.
No Operation
If is selected in terminal 27 no connection to +24 V on terminal 27 is necessary to enable start.
Coast Inverse
If (factory default value) is selected in Terminal 27, a connection to +24V is necessary to enable start.

8.1.3. Q1 My Personal Menu

8
Parameters defined by the user can be stored in Q1 My Personal Menu.
My Personal Menu
Select
or equipment OEM may have pre-programmed these to be in My Personal Menu during factory commissioning to make on site commissioning / fine tuning
simpler.. These parameters are selected in par. 0-25
20-21 Setpoint 1
20-93 PID Proportional Gain
20-94 PID Integral Time

8.1.4. Q2 Quick Setup

The parameters in Q2 Quick Setup are the basic parameters which are always needed to set-up the frequency converter to operation.
Parameter number and name
0-01 Language
1-20 Motor Power
1-22 Motor Voltage
1-23 Motor Frequency
1-24 Motor Current
1-25 Motor Nominal Speed
3-41 Ramp 1 Ramp Up Time
3-42 Ramp 1 Ramp Down Time
4-11 Motor Speed Low Limit
4-13 Motor Speed High Limit
1-29 Automatic Motor Adaptation (AMA)
62
to display only the parameters, which have been pre-selected and programmed as personal parameters. For example, a pump
My Personal Menu
MG.20.M4.02 - VLT
Par. Designation
0-01 Language
1-20 Motor Power
1-22 Motor Voltage
1-23 Motor Frequency
1-24 Motor Current
1-25 Motor Nominal Speed
3-41 Ramp 1 Ramp up Time
3-42 Ramp 1 Ramp down Time
4-11 Motor Speed Low Limit
4-13 Motor Speed Low High
1-29 Automatic Motor Adaption
Table 8.2: Quick Setup parameters
. Up to 20 different parameters can be defined in this menu.
Q1 My Personal Menu
Q2 Quick Setup
Unit
kW
V
Hz
A
RPM
s
s
RPM
RPM
®
is a registered Danfoss trademark
®
VLT AQUA Drive
Operating Instructions
[Units]
[kW]
[V]
[Hz]
[A]
[RPM]
[s]
[s]
[RPM]
[RPM]
[AMA]
