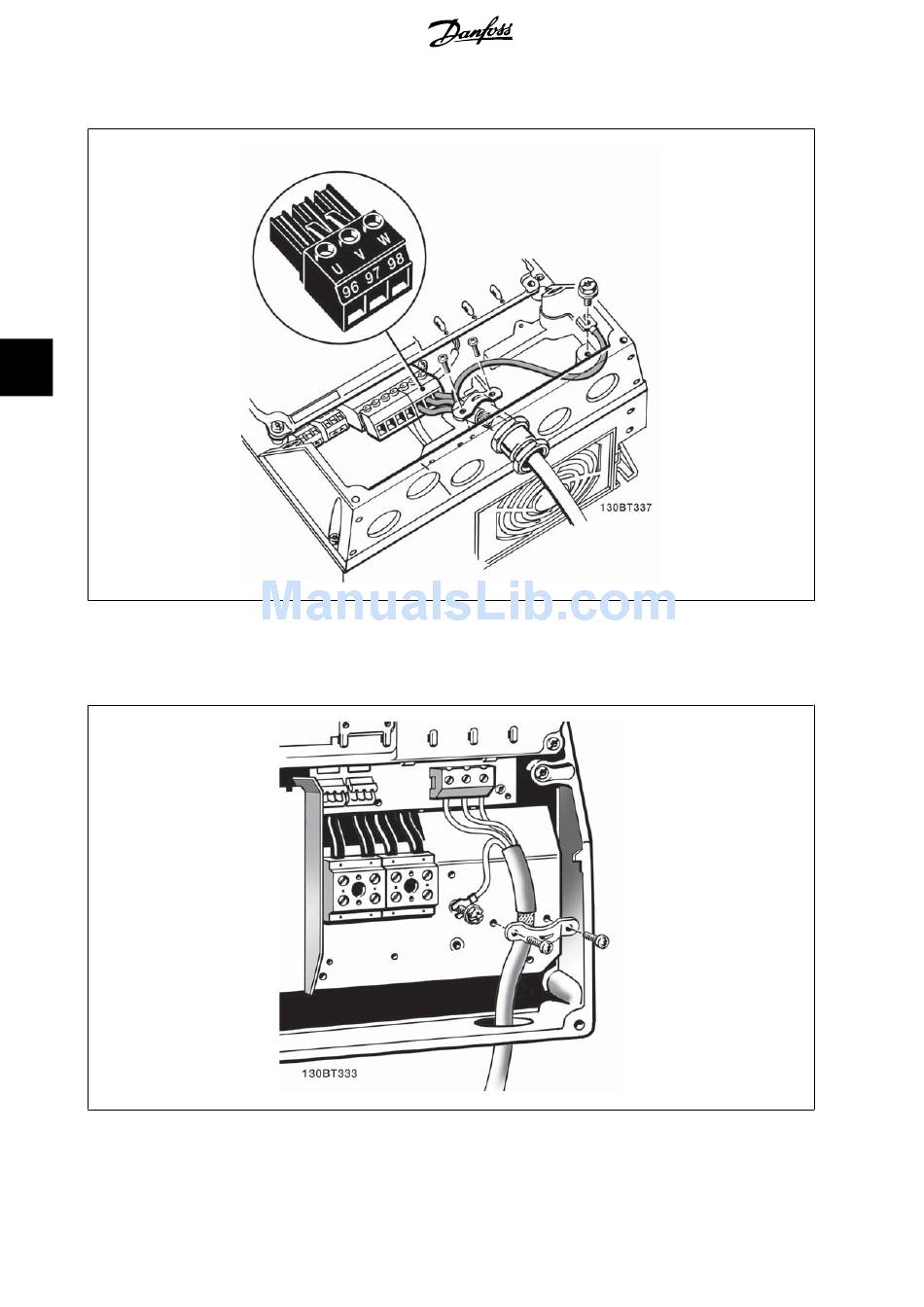

Illustration 5.15: First terminate the motor earth, then place motor U, V and W wires in terminal and tighten. Please ensure that the outer insulation

of the motor cable is removed under the EMC clamp.

5.1.13. Motor connection for B1 and B2

Illustration 5.16: First terminate the motor earth, then Place motor U, V and W wires in terminal and tighten. Please ensure that the outer insulation

of the motor cable is removed under the EMC clamp.
