contrast between the text and background areas of
SmartSwitch button displays.
•
Production Module Circular Bargraph Bright-
Determines the luminance of the lit segments
ness:
that surround the adjustment knobs on the optional
Element Production Module.

Phone Channels Menu

This screen allows you to set up Element for use with
Telos Series 2101, TWOx12 and Nx12 broadcast phone
systems. For more details, please refer to Appendix D:
Working With Phone Hybrids.

User Modules Menu

This menu allows you to set up and use Axia acces-
sory SmartSwitch and Film-Cap Button modules and ac-
cessory panels with your Element console. In the exam-
ple shown in Figure 8-9, a Mic/Headphone control panel
has been associated with a microphone named Studio 1
Mic. In this case, the panel would be used by a studio
guest for remote control of his/her mic and headphone
selection.

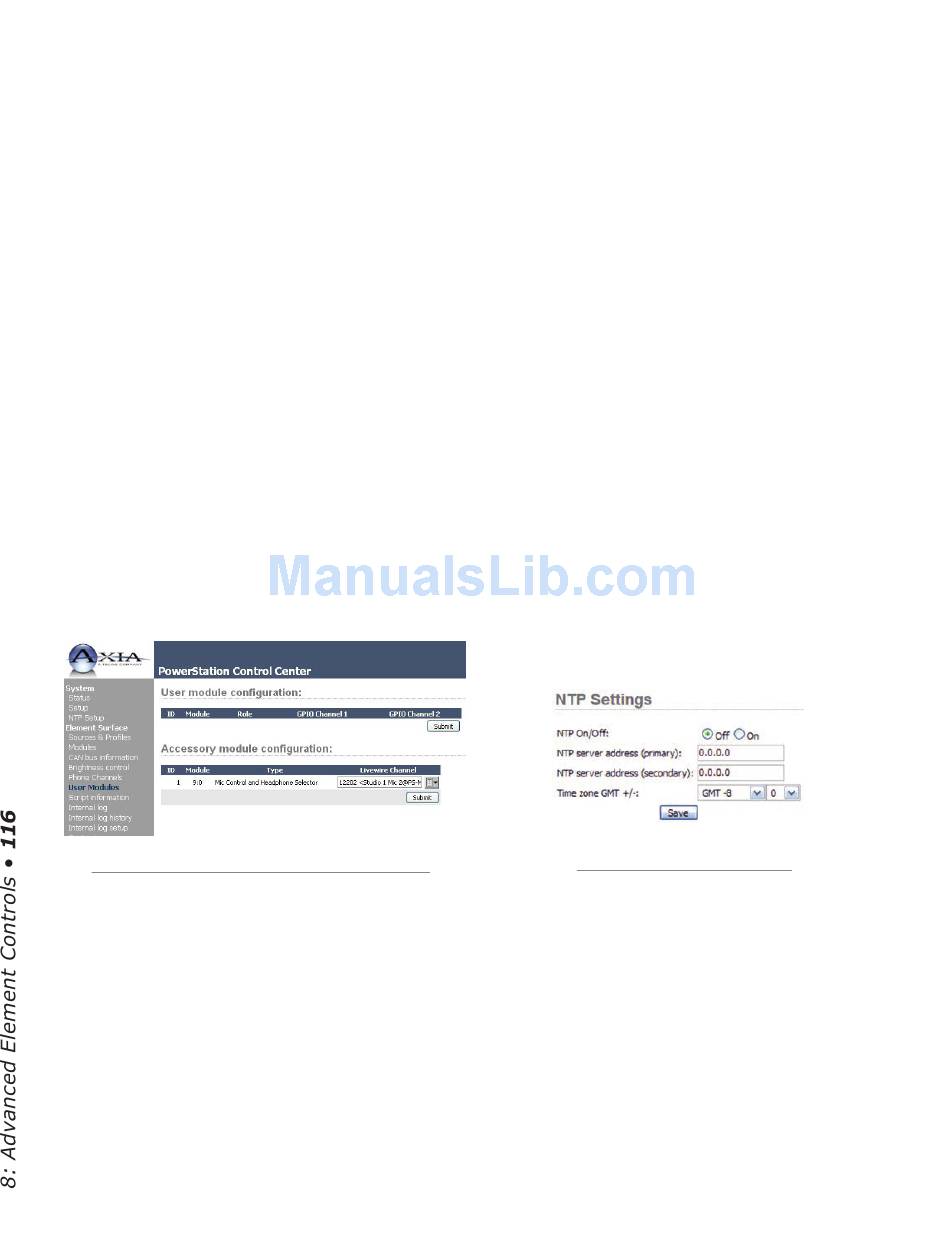

Fig. 8-9: Element User Panels
For more information on these panels, please refer to
Appendix E: Accessory Panels and User Panels.

GPIO Configuration Menu

This menu is where you configure the assignments
for the eight opto-isolated GPIO connections found on
the Element CPU connection panel. For a thorough dis-
cussion of this screen and how to configure GPIO, please
refer to Chapter 4: Configuring GPIO. Note that the
GPIO section of the PowerStation is not associated with
the Element but rather with the MAIN and AUX I/O sub-
systems.

Script Information Menu

Element consoles use standard Javascript code for
some routine functions. This screen is for diagnostics
and custom programming only and should not be used
without instructions from Axia Support.

V-Mixer Menu

Element allows you to mix up to 40 sources using
a built-in Virtual Mixer, consisting of eight submixers
controlling five inputs each. Setup and use is described
in Chapter 7: Virtual Mixer.
Note that the Element when used with StudioEngine
may have VMIX settings associated with the Element.
This is available for backward compatibility only. Cur-
rently, all VMIX and VMODE functions reside com-
pletely within the StudioEngine. If you are using a Pow-
erStation, this is not a concern since the Element and
Engine functions reside within a single unit.

NTP Menu

Each individual Element in your network can use ei-
ther its own internal clock or an external time server for
timekeeping. Here is how you set up NTP time sync.
1. Choose the
2. Enter the IP address of an NTP server in the Primary
box, and a Secondary NTP server if available.
3. Set your Time Zone offset using the dropdown box.
4. Click
Save
To disable NTP service, simply choose
click .
Save
You can tell if your NTP connection is working by
observing the presence of an NTP indicator on your digi-
tal click display.
©2016 Axia Audio- Rev 1.8.1
Fig. 8-8: NTP Menu controls
radio button.
NTP ON
.
and
NTP OFF
