top cover of the fader. Hold the fader under hot
running water while moving the fader slider back
and forth to dissolve the sugars and other chemi-
cals. Thoroughly dry the rails and conductive
plastic using dry cotton swabs and then lubricate
the top fader rail with Dow Corning 510.
Lubricating the Glide Rail
Move the fader slider to the middle of its travel and
place one drop of Dow Corning 510 lubricant on the top
rail on either side of the fader slider bushings. Move the
slider through its full travel to distribute the lubricant.
Wipe off any excess lubricant from the rubber stops at
each end of the glide rail. Normally only the top rail (the

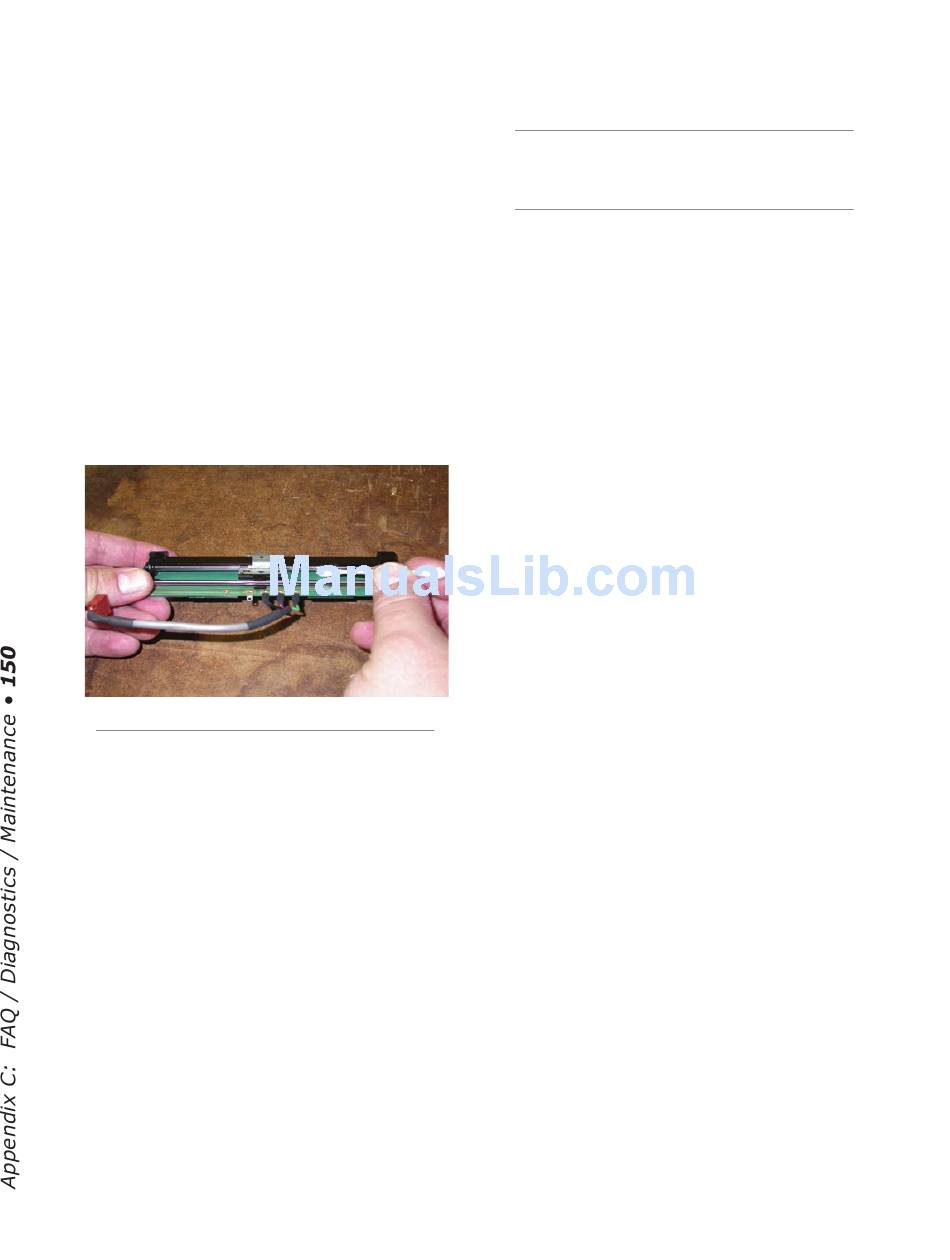

Figure C-18: Cleaning the fader glide rails
one the fader slider bushings glide on) requires lubricant.
Reinstalling The Fader
1. Snap the cover onto the fader body.
2. From below, reinsert the fader into position in the
surface, taking care that the end marked
stalled adjacent to the channel's
3. Reinstall the hex screws from the top of the sur-
face. Do not overtighten.
4. Press the fader knob firmly onto the stem.
5. Reconnect the fader leads to their mating pins on
the bottom of the fader. The sequence is:
* Green wire to pin "2"
* Black wire to pin "C"
* Red wire to pin "1"
* Bare wire to pin "G"
6. Reconnect the RJ-45 patch cable and alpha panel
Note: The ribbon connector must be connected
to the module "tail-up", with the cable emerg-
ing from the connector toward the top of the
module.
7. Lay the module into the frame, engaging the lo-
8. Reinstall hex-head screw(s) at top of module.
is in-
∞
keys.
On / Off
©2016 Axia Audio- Rev 1.8.1
ribbon cable to the module.
cating tab at the bottom of the module and tilt-
ing the top downward into the frame. Be careful
not to pinch the ribbon cable between the module
and frame.
