Ethernet Switch Settings - Axia element v.2.0 Installation & User Manual

tech support. The DSCP Class of Service setting
should be left at 48 unless changes are requested
by tech support.
Default settings are:
» 802.1p tagging - enabled
» VLAN ID - 0
» 802.1Q priority - 6
» DSCP Class of Service - 48
• Standard Audio Streams:
have higher latency that live streams and require
different settings. As with live streams, all de-
faults should be accepted unless changes are re-
quested by Axia tech support.
Default settings are:
» Receive buffer - 100 msec
» 802.1p tagging - disabled
» VLAN ID - 0
» 802.1Q priority - 5
» DSCP Class of Service - 46

Ethernet Switch settings

The PowerStation MAIN contains an integrated Eth-
ernet switch. This switch manages the multicast func-
tions of the PowerStation and enables it to be connected
to other PowerStations and other Livewire devices via
your managed Livewire LAN.
Options
This screen has Spanning Tree and port settings.
• Port Configuration
one of three different modes for the two gigabit
ports on the switch. Options are:
» Access - normally used for connections to
other Livewire devices
» Trunk - used for the connections to a core
Ethernet switch or other PowerStations.
» Access STP port fast - may optionally be used
when you connect up to four PowerStations in
a ring configuration. By selecting this mode,
the normal STP logic is reversed. The port is
allowed to start sending packets immediately,
and loop discovery is done in parallel. There
Standard streams
: Allows you to select from
©2016 Axia Audio- Rev 1.8.1
is a risk of short-term flooding so this option
should be used with extreme caution.
• STP Configuration
Spanning Tree Protocol and specify a bridge pri-
ority value (0 to 32768)

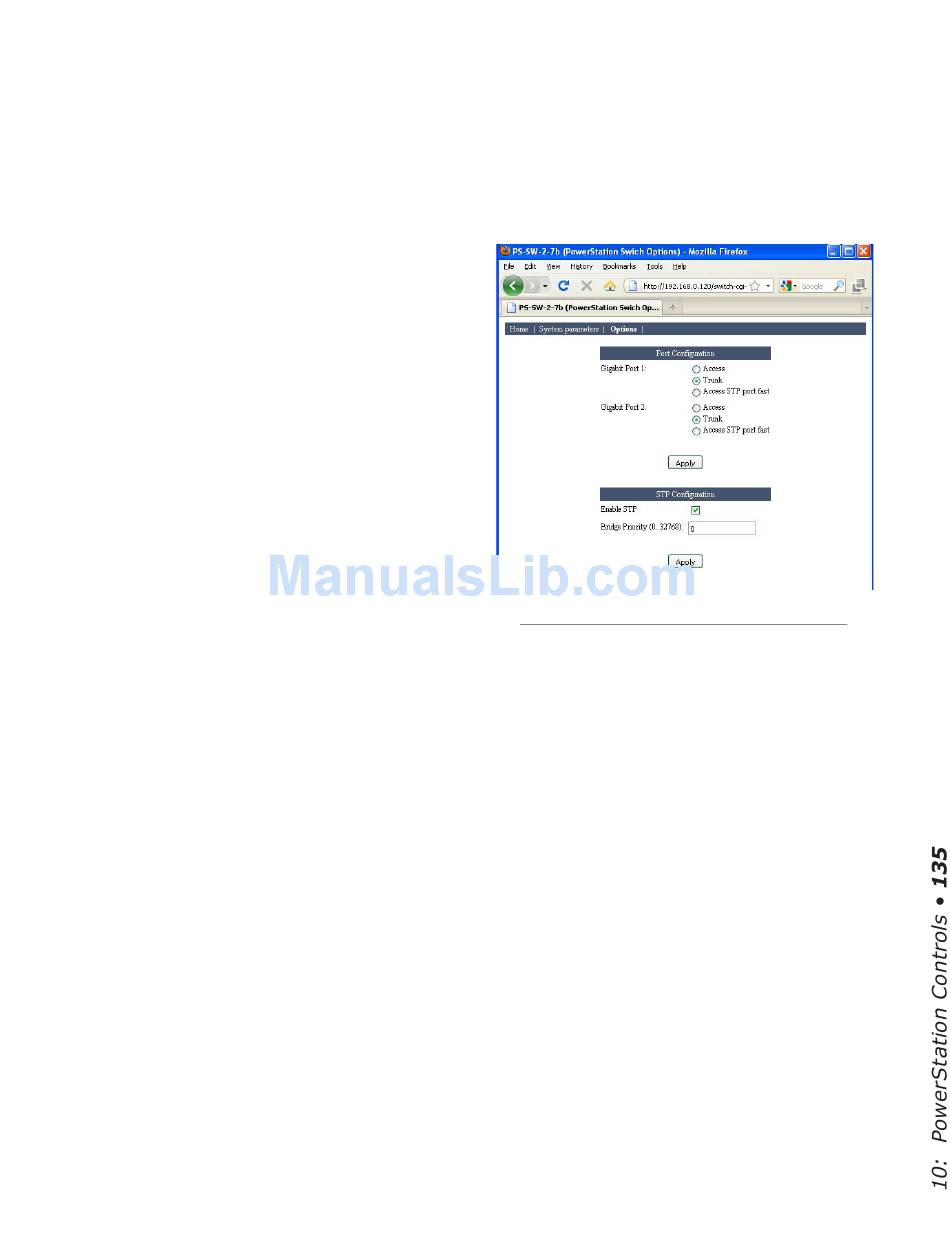

Fig. 10-10: PowerStation MAIN Switch - Options
» Enable STP - (Spanning Tree Protocol) used
only when you are connecting multiple Pow-
erStations (maximum of 4) in a loop configu-
ration.
» Bridge Priority - can be used to assign "root"
priority to devices that are connected in a loop.
A lower number indicates a higher priority.
Your network administrator should be con-
sulted if you think you need to make changes
to the default setting.
System Parameters
As described previously in this manual, it is recom-
mended that all IP address information be entered in the
PowerStation main Setup menu. IP addresses are auto-
matically assigned to the IO Subsystems and Ethernet
switch. If you make a change in this section, it may be
over-written the next time the PoewrStation is restarted.
You should enter a short, logical
• Host Name:
name here to describe the PowerStation switch.
We suggest you include something to indicate
the room or studio where the unit is located.
: You can enable or disable
