screen, the PowerStation MAIN
will generate an alarm only if the
power supply in the PowerStation
MAIN should fail. When Backup
Power is set to YES, a front-panel
alarm will be visible if there is a
failure or disconnection of either
main or backup power supplies.
Note that both the PowerStation
MAIN and the PowerStation AUX
can operate normally as long as
one power supply is active.
You cannot un-check the backup
power option, if the backup power
is actually present - the software
won't allow that. If it is unchecked,
it means that there is actually no
backup, and then the failure of the
main power will simply bring the
unit down.
As usual, if you make a change, remember to click
the Apply button before navigating away from this page.
Network
: This is where you give your Pow-
• Host Name
erStation a short, friendly name. We suggest you
include the location or name of the studio since
that will make other aspects of the system more
intuitive.
: It is possible to make changes to IP
• IP Settings
settings here however we recommend that you
make these changes in the main PowerStation
Setup menu as described at the beginning of this
section.
System
The System Menu of the PowerStation's MixEngine
displays some different information than a stand-
alone StudioEngine however the functionality is
identical. The MixEngine System screen is displayed
in Figure 10-5.
: This area displays the health
• System Status
indicators and status of the motherboard in the

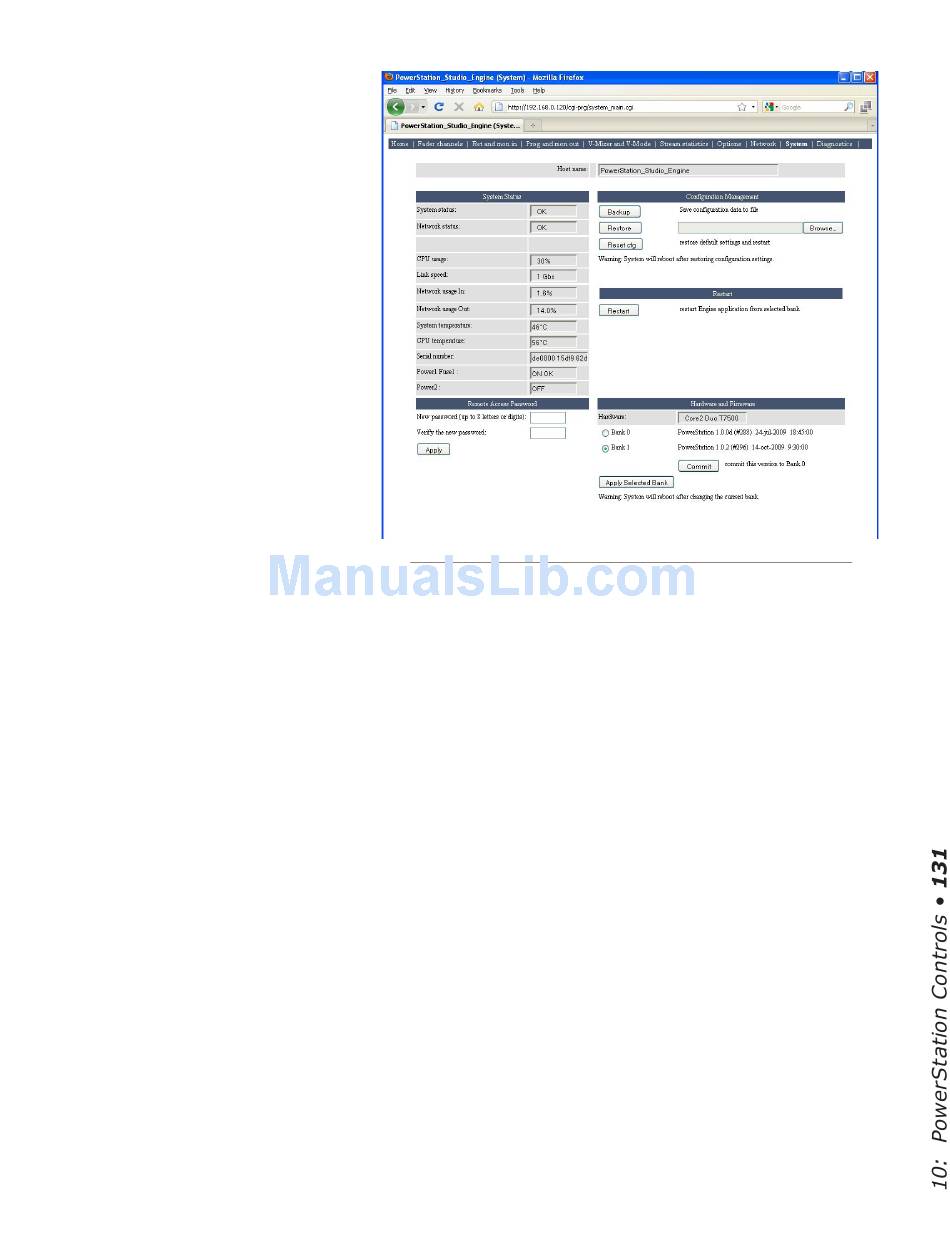

Fig. 10-5: PowerStation MixEngine System screen
PowerStation. You will see some familiar items
here but you will not see Fan Speed - there are
no fans!
»
System Status
you as to the health of the StudioEngine and its
connection to the Axia network. Both of these
indicators must be OK for normal operation.
»
CPU Usage
working. This value should never exceed 95%.
»
Link Speed
which the Engine is connected to the local net-
work switch. This should always be 1 Gbs.
»
Network Usage In
bandwidth is being consumed on the Engine-
to-switch link.
»
System Temperature
peratures of the PowerStation. If the tempera-
ture exceeds operating limits, a warning will
appear on the PowerStation's front-panel dis-
play.
»
CPU Temperature
of the PowerStation's CPU. If the temperature
exceeds operating limits, a warning will appear
on the PowerStation's front-panel display.
©2016 Axia Audio- Rev 1.8.1
and
Network Status
indicates how hard the Engine is
tells you the type of link with
and show how much
Out
monitors internal tem-
monitors the temperature
inform
