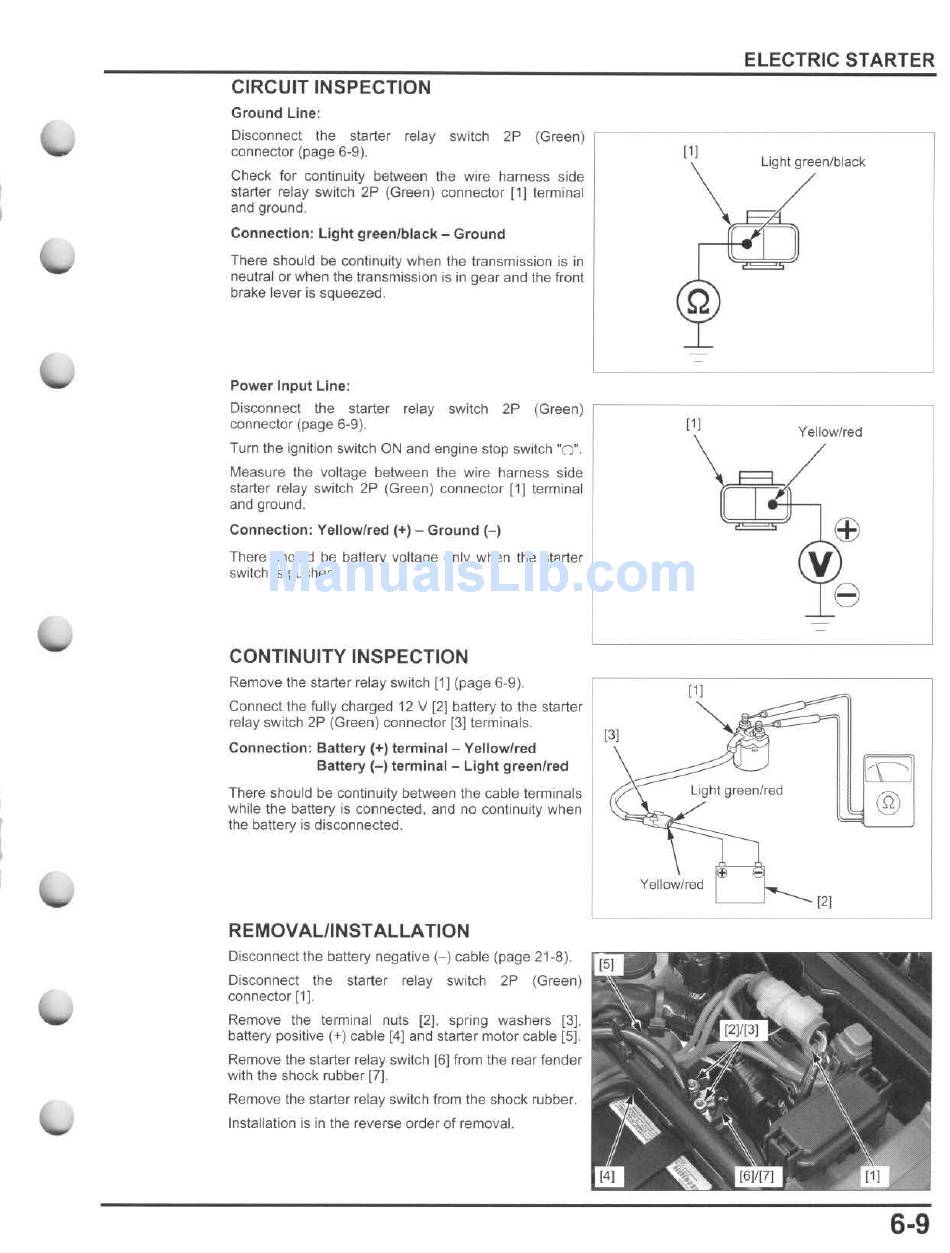

CIRCUIT INSPECTION
Ground Line:
Disconnect the starter relay switch 2P (Green)
connector (page 6-9).
Check for continuity between the wire harness side
starter relay switch 2P (Green) connector [1]lerminal
and ground ,
Connection: Light green/black - Ground
There should
be
continuity when the transmission is in
neutral or when the transmission is in gear and the front
brake lever is squeezed.
Power Input Line:
ELECTRIC STARTER
11)
Ligh t green/black
Disconnect the starter relay switch 2P (Green)
connector (page 6-9).
Turn the ignition switch ON and engine stop switch "0 ",
Measure the vo!tage between the wire harness side
starter relay switch 2P (Green) connector [1] terminal
and ground .
Connection : Yellow/red (+) - Ground (- )
There should be battery voltage only when the starter
switch is pushed.
CONTINUITY INSPECTION
Remove the starter relay switch [1) (page 6-9).
Connect the fully charged 12 V (2) battery to the starter
relay switch 2P (Green) connector [3] terminals.
Connection: Battery (+) terminal - Yellow/red
Battery (-) terminal - Light green/red
There should be continuity between the cable terminals
while the battery is connected, and no continuity when
the battery is disconnected.
REMOVALIINST ALLA TION
Disconnect the battery negative (- ) cable (page 21-8).
Disconnect the starter relay switch 2P (Green)
connector (1).
Remove the terminal nuts (2] , spring washers ]3],
battery positive (+) cable [4) and starter motor cable [5].
Remove the starter relay switch ]6] from the rear fender
with the shock rubber [7].
Remove the starter relay switch from the shock rubber.
Installation is in the reverse order of removal.
13{
{1)
11{
Light green/red
Yellowlred
Yellow/red
(TJ
V
8
{2}
®
6-9
