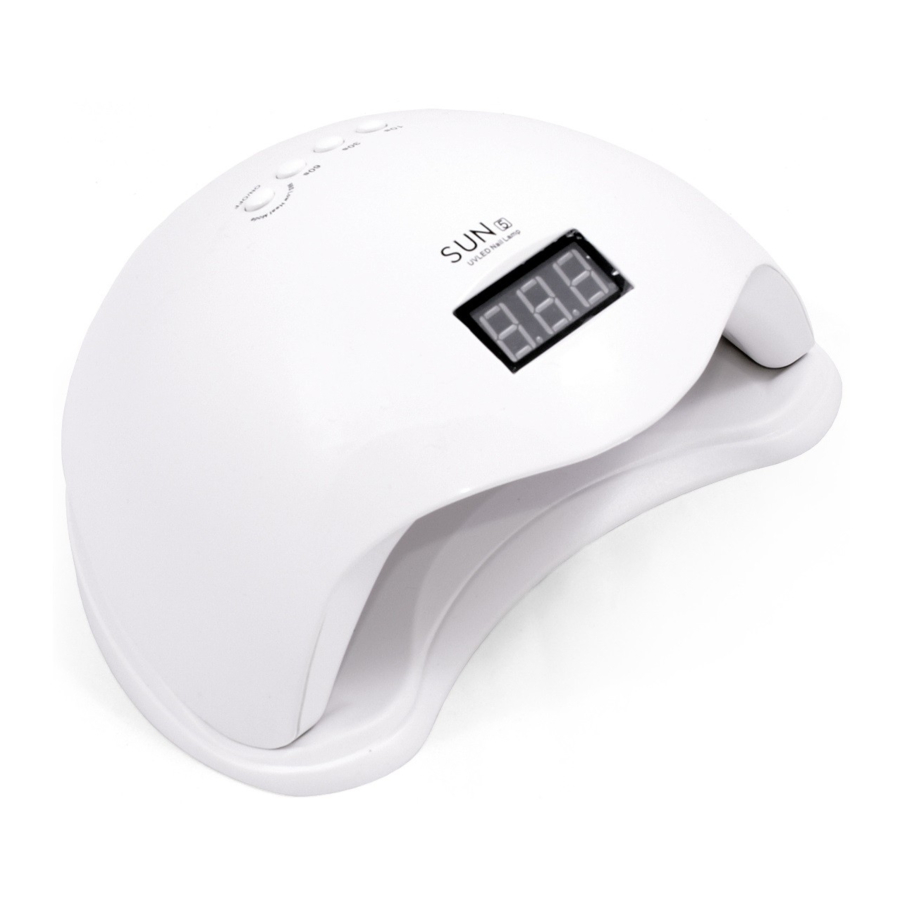

Sun 5 Manual

PACKING LIST

  1. SUN5 Main body
  2. AC Power line
  3. Instructions
  4. Certificate

PARTS INSTRUCTION

PARTS INSTRUCTION

  1. Infrared induction
  2. Power indicator light
  3. 10s timing button
  4. 30s timing button
  5. 60s timing button
  6. 99 sec Low heat mode
  7. AC power line connecting base

PRODUCT INSTRUCTION

  1. SUN5 is designed for professional nail experts.
  2. Could fast curing UV ge/Builder/LED gel.

OPERATION INSTRUCTION

CONTROL PANEL OPERATION

  1. Connect the AC power line socket.
  2. After the machine starting up, user can select times by 10s/30s/60s/99s(low heat mode) buttons Enter into low heat mode, power enhances gradually over time, to resolve all pain problem caused by curing gels.
  3. If user don't use the time setting buttons, Infrared sensor starts working when putting hands into the machine. Max working time lasts 120s.
  4. When timing is working, display will show the corresponding time. 10s, 30s, 60s are countdown, 99s and infrared sensors are clockwise.

TECHNICAL INSTRUCTION

  1. 24 LEDs
  2. Maximum power consumption: 48W
  3. Rated input: 100-240V 50/60Hz 1A
  4. Size: 220mmx195mmx 105mm
  5. Wave length: 365+405nm

CAUTIONS

  1. Please read the instruction carefully before using the lamp.
  2. Please use the correctly.
  3. Not allow any liquid into the machine otherwise, damage may occur.
  4. When timer button out of function, Please don't use.
  5. Please AC power line, when leaving.
  6. Please not to use the nail lamp wten AC power line.
  7. Please not to turn on the machine excess than 600minutes, otherwise it may reduce the lifetime of nail lamp.
  8. When using, please wear protective glasses and radiation protection suits.
  9. The machine detects internal temperature automatically in longterm use. When the temperature is too high, the ma chine turns to low-power operation, meanwhile the display shows "07p" status. Timing stops working and return to normal power operation after lowering the temperature.
