4.3
DATA MEMORY (RAM)
The data memory consists of the data and peripheral hardware areas as shown in Fig. 4-3.
Data Area
Static RAM
(64
Peripheral
Hardware
Area
(1) Data area
The PD75402A's data area consists of the static RAM (64 words 4 bits). The data area is used to store processing
data and is operated by the memory manipulation instruction.
The static RAM is mapped to Memory bank 0 by 64
available as the general register area (000H to 003H) and the stack area (020H to 03FH).
In the static RAM, 1 address consists of 4 bits. It is possible either to operate per 8 bits by the 8-bit memory
manipulation instruction or to operate per bit by the bit manipulation instruction, however. In the 8-bit manipulation
instruction, an even address should be specified.
• General register area
Operation is possible either by the general register manipulation instruction or by the memory manipulation
instruction. Up to four 4-bit registers are available. Of the 4 general registers, that part which is not used in the
program is available as the data area (see 4.4 "GENERAL REGISTER").
• Stack area
The stack area is set by an instruction and is available as the save area at the subroutine or interrupting process
execution (see 4.6 "STACK POINTER"). In that case, the stack area is at the static RAM's addresses 020H to 03FH.
CHAPTER 4. INTERNAL CPU FUNCTIONS

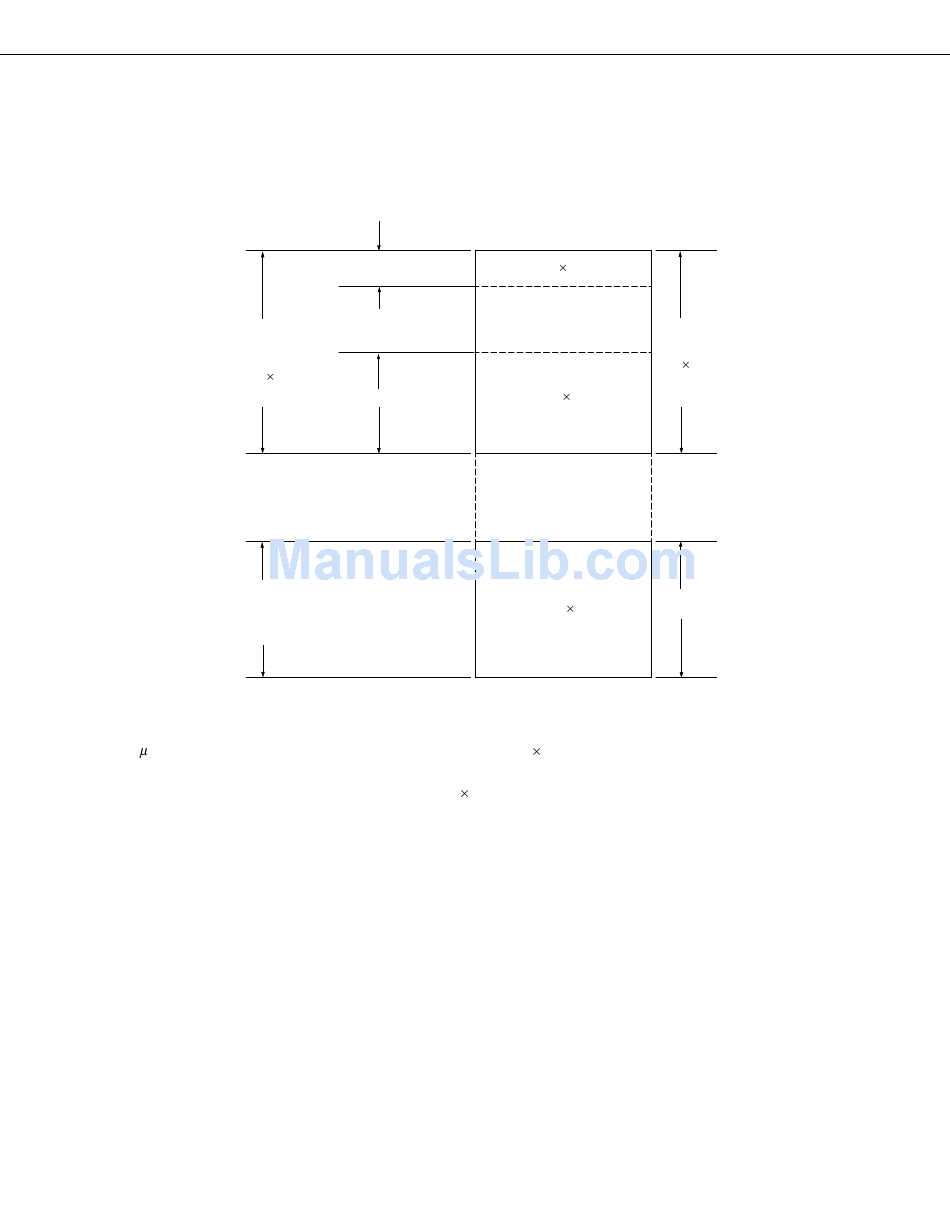

Fig. 4-3 Data Memory Map
Data Memory
0 0 0 H
General
Register Area
0 0 3 H
0 0 4 H
0 2 0 H
4)
Stack Area
0 3 F H
F 8 0 H
F F F H
Memory Bank
(4
4)
(32
4)
Not built in.
128
4
4 bits. While Bank 0 is mapped as the data area, it is also
Bank 0
(64
4)
Bank 15
33
