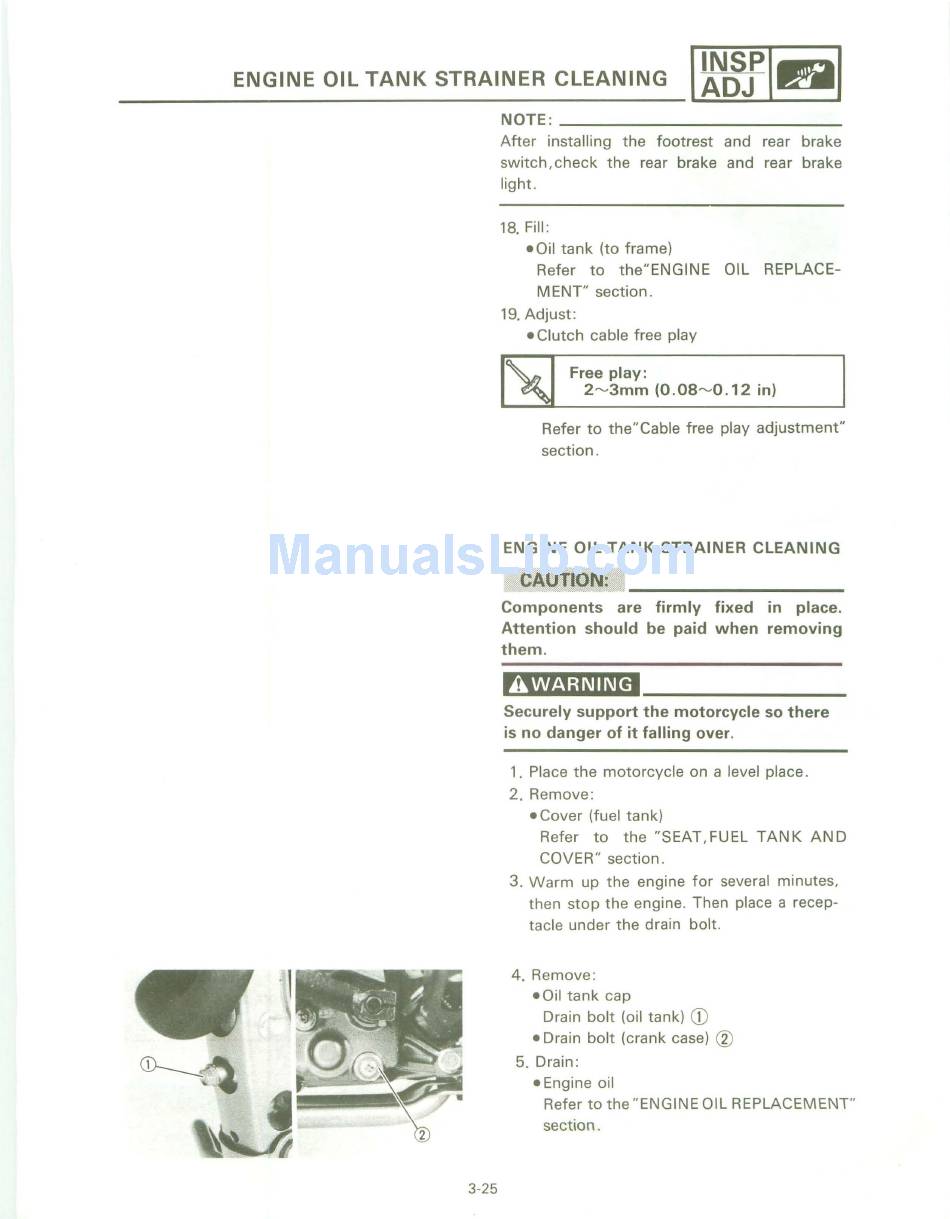

ENGINE OIL TANK STRAINER CLEANING
~
------------------------------------------------------
3-25
NOTE : ________________________ __
After installing the footrest and rear brake
switch , check the rear brake and rear brake
light .
18. Fill:
-Oil tank (to frame)
Refer to the"ENGINE OIL REPLACE-
MENT' section .
19. Adjust :
- Clutch cable free play
I
"A' )
I
Free play:
~
2""'-'3mm (0.08""'-'0.12 in)
Refer to the"Cable free play adjustment"
section .
ENGINE OIL TANK STRAINER CLEANING
Components are firmly fixed in place.
Attention should be paid when removing
them .
AWARNING
Securely support the motorcycle so there
is no danger of it falling over.
1. Place the motorcycle on a level place.
2. Remove :
- Cover (fuel tank)
Refer to the " SEAT,FUEL TANK AND
COVER" section.
3 . Warm up the engine for several minutes,
then stop the engine . Then place a recep-
tacle under the drain bolt.
4 . Remove :
-Oil tank cap
Drain bolt (oil tank)
CD
- Drain bolt (crank case)
®
5. Drain:
- Engine oil
Refer to the " ENGINE OIL REPLACEMENT"
section.
