Electrical - Yamaha XT 600 AC Service Manual

MAINTEANNCE SPECIFICATIONS
ISPECI
JUfl

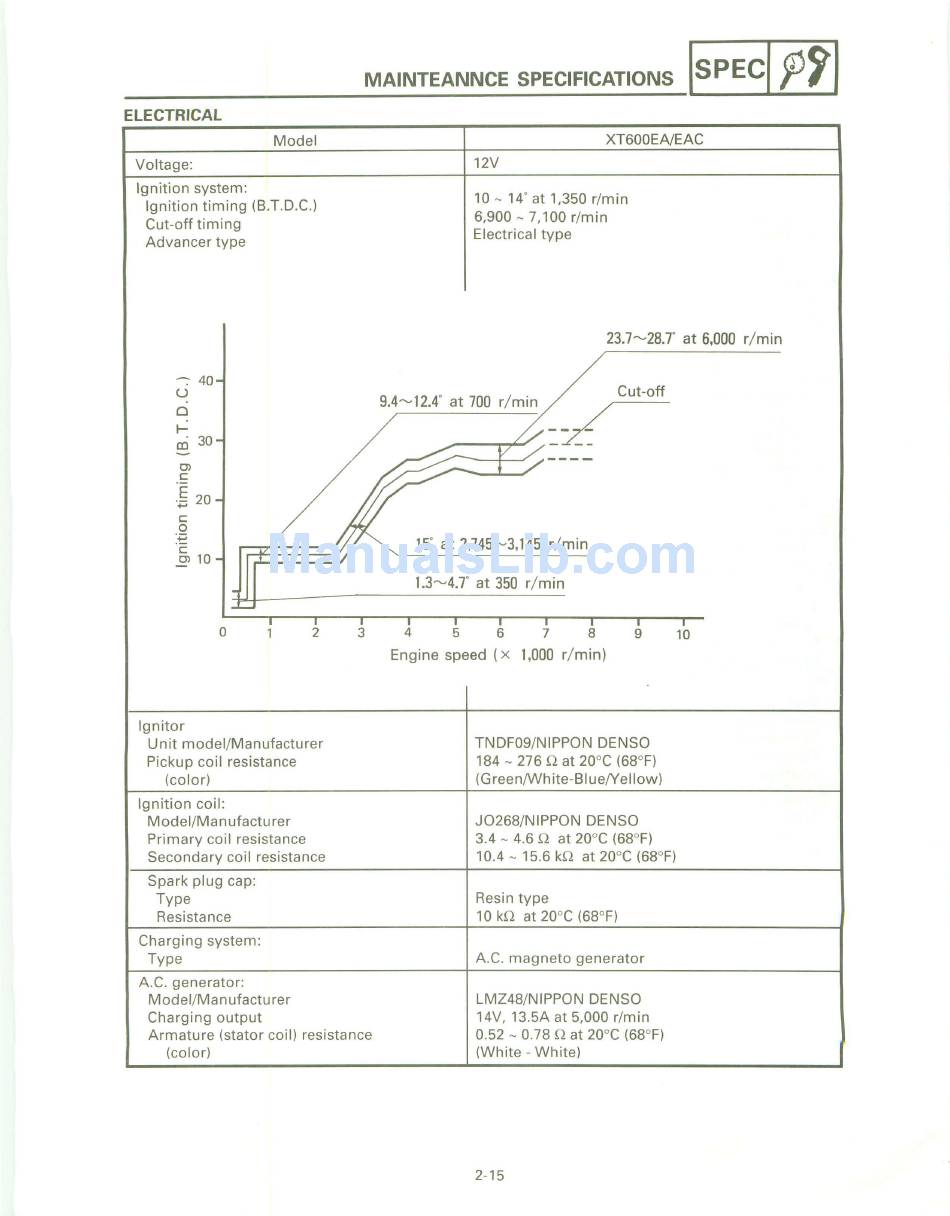

ELECTRICAL
Model
XT600EA/EAC
Voltage:
12V
Ignition system:
10 - 14" at 1,350 r/min
Ignition timing (B.T.D.C.)
Cut-off timing
6,900 - 7,100 r/min
Advancer type
Electrical type
23.7'"'-'28.7"
at
6,000
r/min
--:- 40
u Cut-off
0
9.4-12.4" at 700 r/min
~
~
~--
-
en
30-
-
----
V ---
----
OJ
-
+
c
E
' ' ; ::; 20-
c
0
:-e
15"
at
2,745'"'-'3,145
r/min
c
.2l
10 -
..,
1.3'"'-'4.7"
at
350
r/min
....
-
0
1
2
3
4
5
6
7 8 9
T
10
Engine speed (x
1,000
r/min)
Ignitor
Unit model/Manufacturer
TNDF09/NIPPON DENSO
Pickup coil resistance
184 - 276 D. at 20°C (68°F)
(color) (Green/White-Blue/Yellow)
Ignition coil:
Model/Manufacturer J0268/NIPPON DENSO
Primary coil resistance
3.4 - 4.6 D. at 20°C (68°F)
Secondary coil resistance
10.4 - 15.6 kD. at 20°C (68°F)
Spark plug cap:
Type
Resin type
Resistance
10 kD. at 20°C (68°F)
Charging system:
Type A.C. magneto generator
A.C . generator:
Model/Manufacturer
LMZ48/NIPPON DENSO
Charging output 14V, 13.5A at 5,000 r/min
Armature (stator coil) resistance 0.52 - 0.78 D. at 20°C (68°F)
(color)
(White - White)
2-15
