Yamaha YZ250FX 2017, YZ250FXH 2017 Manual

LOCATION OF IMPORTANT LABELS

Please read the following important labels carefully before operating this vehicle.

DESCRIPTION

Overview

  1. Clutch lever
  2. Engine trouble warning light ""
  3. Fuel level warning light ""
  4. Front brake lever
  5. Throttle grip
  6. Start switch
  7. Radiator cap
  8. Fuel tank cap
  9. Engine stop switch
  10. Fuel tank
  11. Radiator
  12. Coolant drain bolt
  13. Rear brake pedal
  14. Air filter
  15. Drive chain
  16. Shift pedal
  17. Oil level check window
  18. Starter knob/idle screw
  19. Front fork

TIP
Designs and specifications of the vehicle are subject to change without notice. Therefore, please note that the descriptions in this manual may be different from those for the vehicle you have purchased.

IDENTIFICATION

There are two significant reasons for knowing the serial number of your vehicle:

  1. When ordering parts, you can give the number to your Yamaha dealer for positive identification of the model you own.
  2. If your vehicle is stolen, the authorities will need the number to search for and identify your vehicle.

VEHICLE IDENTIFICATION NUMBER
The vehicle identification number "1" is stamped into the right side of the frame.
Vehicle Identification Number

ENGINE SERIAL NUMBER
The engine serial number "1" is stamped into the elevated part of the right-side of the engine.
Engine Serial Number

INCLUDED PARTS

SPARK PLUG WRENCH
The spark plug wrench "1" is used to remove or install the spark plug.

NIPPLE WRENCH
The nipple wrench "1" is used to tighten the spoke.

HANDLEBAR PROTECTOR
Install the handlebar protector "1" with the mark "a" facing forward.

FUEL HOSE JOINT COVER
The fuel hose joint covers "1" are used to prevent mud, dust, and other foreign materials from entering the inside when the fuel hose is disconnected.

COUPLER FOR CONNECTING OPTIONAL PART
The coupler "1" is used for connecting the optional Power Tuner and so on.
NOTICE
When no optional parts, etc. are connected, connect the connection terminal to the original coupler.
Before disconnecting the coupler, thoroughly wipe off any mud or water stuck to it.

Part name Part number
GYTR Power Tuner
(For USA)
33D-H59C0-V2
YZ Power Tuner
(Except for USA)
33D-859C0-11

The Power Tuner is an optional part.

IMPORTANT INFORMATION

PREPARATION FOR REMOVAL AND DISASSEMBLY

  1. Before the jobs, completely remove mud, dust, and the like in order to prevent the entry of them into the inside during the jobs.
    • Before cleaning with high-pressure water of washers, cover the following parts.
      Air duct
      Silencer exhaust port
      Drain hole on the cylinder head (right side)
      Hole under the water pump housing
  2. Use proper special tools and equipment. See "SPECIAL TOOLS".
  3. During disassembly, check and measure the required parts, and make a record of them so that you may refer to the record when installing them. Moreover, arrange gears, cylinders, pistons, and other parts for each section so as not to confuse or lose them.
  4. During disassembly, clean each of the parts, and store them in trays for each section.
  5. Flammable. Keep servicing areas away from any source of fire.
  6. During servicing, take special care not to receive an injury or a burn on the engine, the exhaust pipe, the silencer, or the like.
  7. If coolant is left adhered to the chassis, paint and plating will be damaged. Therefore, rinse it out with water in good time.


Coolant is potentially harmful and should be handled with special care.

  • If it enters your eyes, wash it away with water enough and then get medical attention
  • If it splashes on your skin or clothes, quickly wash it away with water and then with soapy water.
  • If it is swallowed, immediately induce vomiting and get medical attention.

REPLACEMENT PARTS

Make sure that the parts and grease or oil to be used for repair of the vehicle, including periodic replacement parts, are new YAMAHA genuine parts and recommended parts. Do not use any used parts, because these may not be genuine though they have similar appearances or because the quality may be changed by aging.

GASKETS, OIL SEALS AND O-RINGS

  1. When overhauling the engine, replace all gaskets and O-rings. All gasket surfaces, oil seal lips, and O-rings must be cleaned so that there may be no dust on them.
  2. During assembly, always apply proper oil to bearings and proper grease to oil seal lips before installation.
    1. Oil
    2. Lip
    3. Spring
    4. Grease

LOCK WASHERS/PLATES AND COTTER PINS

After removal, replace lock washers/plates "1" and cotter pins with new ones. After the bolt or nut has been tightened to specification, firmly bend the lock tabs along a flat of the bolt or nut.

BEARINGS AND OIL SEALS

Install bearings "1" and oil seals "2" with their manufacturer's marks or size symbols facing outward. During installation of an oil seal, make sure that its main lip faces the oil chamber (the target to be sealed). Before installation, always apply a light coat of grease to the oil seal lip.
NOTICE
Do not spin the bearing with compressed air because this will damage the bearing surfaces.

CIRCLIPS

When assembling parts, always use new circlips. During installation of a circlip, make sure that the edge "2" of the circlip "1" is positioned opposite to the force "3" that the circlip receives. Install the circlip with its end aligned with the center of the spline, without opening the circlip more than necessary.

BASIC SERVICE INFORMATION

ELECTRICAL SYSTEM

Electrical parts handling
NOTICE
Never disconnect a battery lead while the engine is running; otherwise, the electrical components could be damaged.

NOTICE
When disconnecting the battery leads from the battery, be sure to disconnect the negative battery lead first, then the positive battery lead. If the positive battery lead is disconnected first and a tool or similar item contacts the vehicle, a spark could be generated, which is extremely dangerous.

TIP
If a battery lead is difficult to disconnect due to rust on the battery terminal, remove the rust using hot water.

NOTICE
Be sure to connect the battery leads to the correct battery terminals. Reversing the battery lead connections could damage the electrical components.

NOTICE
When connecting the battery leads to the battery, be sure to connect the positive battery lead first, then the negative battery lead. If the negative battery lead is connected first and a tool or similar item contacts the vehicle while the positive battery lead is being connected, a spark could be generated, which is extremely dangerous.

NOTICE
Make sure that the engine is stopped after pushing and holding the engine stop switch before disconnecting or connecting any electrical components.

NOTICE
Handle electrical components with special care, and do not subject them to strong shocks.

NOTICE
Electrical components are very sensitive to and can be damaged by static electricity. Therefore, never touch the terminals and be sure to keep the contacts clean.

TIP
Push and hold the engine stop switch to turn off the engine when resetting the ECU (Electronic Control Unit). Disconnect the starter motor lead of the starter relay, and then push the starter switch. Be sure to wait for five seconds or longer before pushing the start switch after the engine is stopped.

Checking the electrical system
TIP
Before checking the electrical system, make sure that the battery voltage is at least 12 V.

NOTICE
Never insert the tester probes into the coupler terminal slots. Always insert the probes from the opposite end "a" of the coupler, taking care not to loosen or damage the leads.

NOTICE
For waterproof couplers, never insert the tester probes directly into the coupler. When performing any checks using a waterproof coupler, use the specified test harness or a suitable commercially available test harness.

Checking the connections
Check the leads, couplers, and connectors for stains, rust, moisture, etc.

  1. Disconnect:
    • Lead
    • Coupler
    • Connector

NOTICE

  • When disconnecting a coupler, release the coupler lock, hold both sections of the coupler, and then disconnect the coupler.
  • There are many types of coupler locks; therefore, be sure to check the type of coupler lock before disconnecting the coupler.

NOTICE
When disconnecting a connector, do not pull the leads. Hold both sections of the connector, and then disconnect the connector.

  1. Check:
    • Lead
    • Coupler
    • Connector
      Moisture > Dry with compressed air.
      Rust/stains > Connect and disconnect several times.
  2. Check:
    • All connections
      Loose connection > Connect properly.

TIP

  • If the pin "1" on the terminal is flattened, bend it up.
  • After disassembling or assembling a coupler, pull on the leads to make sure that they are installed securely.
  1. Connect:
    • Lead
    • Coupler
    • Connector

TIP

  • When connecting a coupler or connector, make sure that both terminals are connected securely.
  • Make sure all connections are tight.
  1. Check:
    • No continuity
      Pocket tester: 90890-03112
      Analog pocket tester: YU-03112-C

TIP

  • If there is no continuity, clean the terminals.
  • When checking the wire harness, perform steps (1) to (4).
  • As a quick remedy, use a contact revitalizer available at most part stores.

SPECIAL TOOLS

The following special tools are required for accurate and complete adjustment and assembly. Using the correct special tool will help prevent damage caused by the use of improper tools or improvised techniques. The shape and tool number used for the special tool differ by country, so two types are provided. Refer to the list provided to avoid errors when placing an order.
TIP

  • For U.S.A. and Canada, use tool number starting with "YM-", "YU-", or "ACC-".
  • For others, use tool number starting with "90890-".
Tool name/Part number How to use Illustration
Dial gauge & stand set
90890-01252
Dial gauge set
YU-03097-B
This tool is used to check parts for run out or bend.
Crankshaft installer pot
90890-01274
Installing pot
YU-90058
This tool is used to install the crankshaft.
Crankshaft installer bolt
90890-01275
Bolt
YU-90060
This tool is used to install the crankshaft.
Adapter (M12)
90890-01278
Adapter #3
YU-90063
This tool is used to install the crankshaft.
Piston pin puller set
90890-01304
Piston pin puller
YU-01304
This tool is used to remove the piston pin.
Radiator cap tester
90890-01325
Mityvac cooling system tester kit
YU-24460-A
This tool is used to check the radiator and the radiator cap.
Radiator cap tester adapter
90890-01352
Pressure tester adapter
YU-33984
This tool is used to check the radiator and the radiator cap.
Steering nut wrench
90890-01403
Exhaust flange nut wrench
YU-A9472
This tool is used to remove or tighten the steering nut.
Cap bolt wrench
90890-01500
Cap bolt wrench
YM-01500
This tool is used to remove or tighten the base valve.
Cap bolt ring wrench
90890-01501
Cap bolt ring wrench
YM-01501
This tool is used to loosen or tighten the damper assembly.
Fork seal driver
90890-01502
Fork seal driver (48)
YM-A0948
This tool is used to install the oil seal of the front fork.
Spoke nipple wrench (6–7)
90890-01521
Spoke nipple wrench (6–7)
YM-01521
This tool is used to tighten the spoke.
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
This tool is used to measure the voltage, current, and resistance of electrical components.
Timing light
90890-03141
Timing light
YU-03141
This tool is used to measure the ignition timing.
Pressure gauge
90890-03153
Pressure gauge
YU-03153
This tool is used to measure the fuel pressure.
Fuel pressure adapter
90890-03186
Fuel pressure adapter
YM-03186
This tool is used to mount the pressure gauge.
Test harness S– pressure sensor (3P)
90890-03207
Test harness S– pressure sensor (3P)
YU-03207
This tool is used to check the throttle position sensor input voltage.
Test harness– lean angle sensor (6P)
90890-03209
Test harness– lean angle sensor (6P)
YU-03209
This tool is used to check the lean angle sensor output voltage.
FI diagnostic tool sub–lead
90890-03212
FI diagnostic tool sub–lead
YU-03212
This tool is used to connect the Yamaha diagnostic tool to a battery.
Yamaha diagnostic tool
90890-03231
Yamaha diagnostic tool (US)
90890-03234
This tool is used to check error codes or carry out self-diagnosis.
Valve spring compressor
90890-04019
Valve spring compressor
YM-04019
This tool is used to disconnect or connect the valve and the valve spring.
Spacer (crankshaft installer)
90890-04081
Pot spacer
YM-91044
This tool is used to install the crankshaft.
Universal clutch holder
90890-04086
Universal clutch holder
YM-91042
This tool is used to hold the clutch when removing or installing the clutch boss securing nut.
Valve guide remover (ø5)
90890-04097
Valve guide remover (5.0 mm)
YM-04097
This tool is used to replace the valve guide.
Valve guide installer (ø5)
90890-04098
Valve guide installer (5.0 mm)
YM-04098
This tool is used to replace the valve guide.
Valve guide reamer (ø5)
90890-04099
Valve guide reamer (5.0 mm)
YM-04099
This tool is used to replace the valve guide.
Valve lapper
90890-04101
Valve lapping tool
YM-A8998
This tool is used to remove the valve lifter or lap the valve.
Valve spring compressor attachment
90890-04108
Valve spring compressor
adapter 22 mm YM-04108
This tool is used to disconnect or connect the valve and the valve spring.
Valve guide remover (ø4.5)
90890-04116
Valve guide remover (4.5 mm)
YM-04116
This tool is used to replace the valve guide.
Valve guide installer (ø4.5)
90890-04117
Valve guide installer (4.5 mm)
YM-04117
This tool is used to replace the valve guide.
Valve guide reamer (ø4.5)
90890-04118
Valve guide reamer (4.5 mm)
YM-04118
This tool is used to replace the valve guide.
Rotor puller
90890-04142
Rotor puller
YM-04142
This tool is used to remove the rotor.
Crankcase separating tool
90890-04152
Crankcase separating tool
YU-A9642
This tool is used to remove the crankshaft.
Ignition checker
90890-06754
Oppama pet–4000 spark checker
YM-34487
This tool is used to check the spark performance of the ignition coil.
Digital tachometer
90890-06760
Digital tachometer
YU-39951-B
This tool is used to measure the engine speed.
Yamaha bond No. 1215
90890-85505
(Three bond No.1215®)
This sealant (Bond) is used for crankcase mating surface, etc.

CONTROL FUNCTIONS

WARNING LIGHTS

Control Functions Overview - Part 1

  1. Engine trouble warning light ""
  2. Fuel level warning light ""

Engine trouble warning light ""
This warning light comes on or flashes if a problem is detected in the electrical circuit monitoring the engine. If this occurs, have a Yamaha dealer check the vehicle.
The electrical circuit of the warning light can be checked by pushing the start switch. The warning light should come on for a few seconds, and then go off.
If the warning light does not come on initially when the start switch is pushed, or if the warning light remains on, have a Yamaha dealer check the electrical circuit.

Fuel level warning light ""
This warning light comes on when the fuel level drops below approximately 2.1 L (0.55 US gal, 0.46 Imp.gal). When this occurs, refuel as soon as possible.
The electrical circuit of the warning light can be checked by pushing the start switch. The warning light should come on for a few seconds, and then go off.
If the warning light does not come on initially when the start switch is pushed, or if the warning light remains on, have a Yamaha dealer check the electrical circuit.

ENGINE STOP SWITCH

The engine stop switch "1" is located on the left handlebar. Continue pushing the engine stop switch till the engine comes to a stop.
Control Functions Overview - Part 2

START SWITCH

The start switch "1" is located on the right handlebar. Push this switch to crank the engine with the starter.
Control Functions Overview - Part 3 - Start Switch

CLUTCH LEVER

The clutch lever "1" is located on the left handlebar. The clutch lever disengages or engages the clutch.
Pull the clutch lever toward the handlebar to disengage the clutch, and release the lever to engage the clutch.

SHIFT PEDAL

The shift pedal "1" has adopted a method of 1 down & 5 ups (press-down & kick-ups). Press it down for N (neutral) to 1st, and kick it up for 2nd to 6th.
Control Functions Overview - Part 4 - Shift Pedal

THROTTLE GRIP

The throttle grip "1" is located on the right handlebar. The throttle grip accelerates or decelerates the engine. For acceleration, turn the grip toward you; for deceleration, turn it away from you.

FRONT BRAKE LEVER

The front brake lever "1" is located on the right handlebar. Pull it toward the handlebar to activate the front brake.

REAR BRAKE PEDAL

The rear brake pedal "1" is in the right of the chassis. Press down on the brake pedal to activate the rear brake.
Control Functions Overview - Part 5

SIDESTAND

This sidestand "1" is used to support only the machine when standing or transporting it.

  • Never apply additional force to the sidestand.
  • Hold up the sidestand before starting out.

STARTER KNOB/IDLE ADJUSTING SCREW

Starting a cold engine requires a larger amount of intake air, which is supplied by the starter knob/idle screw "1".
Pulling the knob toward "a" turns ON the starter, resulting in a larger amount of intake air. Pushing the knob toward "b" turns OFF the starter.
Control Functions Overview - Part 6


While handling the starter knob/idle screw, take care not to burn yourself on exhaust pipes.

FUEL TANK CAP

Fuel tank cap "1" is located under the fuel tank cap cover "2".
Remove the fuel tank cap cover to open the fuel tank cap.
Control Functions Overview - Part 7
TIP

  • To remove the fuel tank cap cover, insert fingers under part "a", and then use both hands to lift it up towards the rear of the vehicle.
  • Install the fuel tank cap cover after placing the bands "3" all the way in under the seat.

STARTING AND BREAK-IN

FUEL

Always use the recommended fuel as stated below. Also, be sure to use new gasoline the day of a race.
Recommended fuel: Premium unleaded gasoline
Fuel tank capacity: 7.5 L (2.0 US gal, 1.7 Imp.gal)
Fuel reserve amount: 2.1 L (0.55 US gal, 0.46 Imp.gal)
NOTICE
Use only unleaded gasoline. The use of leaded gasoline will cause severe damage to the engine internal parts such as valves, piston rings, and exhaust system, etc.
TIP

Your Yamaha engine has been designed to use premium unleaded gasoline with a pump octane number [(R+M)/2] of 91 or higher, or a research octane number of 95 or higher. If knocking (or pinging) occurs, use a gasoline of a different brand.

  • For refueling, be sure to stop the engine and use enough care not to spill any fuel. Also be sure to avoid refueling close to a fire.
  • Refuel after the engine, exhaust pipe, etc. have cooled off.

Gasohol (For USA and Canada)
There are two types of gasohol: gasohol containing ethanol and that containing methanol. Gasohol containing ethanol can be used if the ethanol content does not exceed 10%. Gasohol containing methanol is not recommended by Yamaha because it can cause damage to the fuel system or vehicle performance problems.

HANDLING NOTE


Never start or run the engine in a closed area. The exhaust fumes are poisonous; they can cause loss of consciousness and death in a very short time. Always operate the machine in a well-ventilated area.
NOTICE

  • If the throttle is open the air/ fuel mixture may be too lean for the engine to start.
  • Before starting the machine, perform the checks in the pre-operation check list.

AIR FILTER MAINTENANCE

Apply the Yamaha foam air filter oil or other quality foam air filter oil to the element. (Excess oil in the element may adversely affect engine starting.)

STARTING A COLD ENGINE

NOTICE
For maximum engine life, never accelerate hard when the engine is cold!
In order for the ignition circuit cut-off system to enable starting, one of the following conditions must be met:

  • The transmission is in the neutral position.
  • The transmission is in gear with the clutch le-ver pulled.
  1. Pull the starter knob/idle screw "1" to its full length.
    Starting a Cold Engine - Step 1
    TIP
    When the ambient temperature is 15°C (59°F) or below, use the starter knob/idle screw.
  2. Completely close the throttle.
  3. Start the engine by pushing the start switch. If the engine fails to start when using the start switch, release it, wait a few seconds, and then try again.
    Each starting attempt should be as short as possible to preserve the battery. Do not crank the engine more than 10 seconds on any one attempt.
    NOTICE
    If the starter motor will not turn when the
    start switch is pushed, stop pushing it immediately in order to avoid placing extra load on the starter motor.
    TIP
    If the engine fail to start, fully open the throttle grip and push the start switch few seconds to clear the engine of the rich air-fuel mixture retained in it.
  4. When the engine starts running, warm this up one or two minutes at a steady speed (of 3000 to 5000 r/min), and then return the starter knob/idle screw to its original position.
    Starting a Cold Engine - Step 2

    Since exhaust gas contains harmful ingredients, do not start or warm it up at an illventilated place or a closed narrow place.
  5. To stop the engine, push the engine stop switch "1".
    Starting a Cold Engine - Step 3
    TIP
    Continue pushing the engine stop switch till the engine comes to a full stop.

STARTING A WARM ENGINE

Follow the same procedure as for starting a cold engine with the exception that the starter is not required when the engine is warm.
TIP
If the engine fail to start, fully open the throttle grip and push the start switch few seconds to clear the engine of the rich air-fuel mixtare retained in it.

BREAK-IN PROCEDURES

A break-in is important so that rotating portion, sliding surfaces, and mounted areas may fit one another, and that the rider may become accustomed to the machine.
NOTICE
Before running, do maintenance on the air filter element.
Refer to "CLEANING THE AIR FILTER ELEMENT".

  1. After warming up the engine, drive it for about 20 minutes at a throttle opening of 1/2 or less.
  2. Make a pit stop, and check mounted areas for looseness, oil leaks, or other problems.
  3. Then, drive it for about 40 minutes at a throttle opening of 3/4 or less.
  4. Make a pit stop again, and thoroughly check mounted areas for looseness, oil leaks, or other problems. Thorough checks and adjustments are required in particular for stretch of cables, free play of the brake, stretch of the drive chain, looseness of the spoke, and so on.

NOTICE
After a break-in or after each race, always check the points shown in "TORQUECHECK POINTS" for tightening torques and retighten them. (Refer to "TORQUE-CHECK POINTS".)
Also when the following parts are replaced, a break-in is required.

  • Cylinder and Crankshaft: A break-in is re-quired for about an hour.
  • Piston, Piston ring, Valve, Camshaft, and Gear: A break-in is required for about 30 minutes at a throttle opening of 1/2 or less.

Observe the condition of the engine carefully during a break-in.
For checkpoints for a break-in, see "MAINTENANCE AFTER BREAK-IN". If any problem is found, immediately stop the engine and make a checkup.

MAINTENANCE AFTER BREAK-IN

After a break-in, perform careful maintenance to get ready for the next practice or race. Refer to "PRE-OPERATION INSPECTION AND MAINTENANCE".

MAJOR MAINTENANCE

  1. For the engine
    • Leaks around the engine
      Check for pressure leaks from the cylinder head or the cylinder, oil leaks from the crankcase or the case cover, leaks from the coolant system, and other leaks.
    • Check that the valve, the cylinder head, the cylinder, the piston, and the piston ring fit one another, and that contact between the valve and the cylinder head, and that between the cylinder and the piston are correct.
    • Engine oil change
      Drain the oil, and check for dirt and foreign materials such as metal chips. (If any foreign material is mixed, disassemble and check the crankcase.)
      Pour the specified amount of the recommended oil.
    • AC magneto
      Check for looseness in mounted areas of the rotor and the stator.
      Check that the connector is not being disconnected.
    • Silencer
      Check the main body and stay for cracks.
      Check for leaks.
    • Mounting bolts and nuts
      Check for looseness in mounted areas of parts, as well as engine mounting bolts and engine brackets.
  2. For the chassis
    • Check welds and mounted areas of the frame, the swingarm, the link, the bracket, and so on, for looseness and cracks.
    • Wheel (s)
      Check the wheel for runout. Check the spoke for looseness.
    • Brake(s)
      Check the brake disc mounting bolt for looseness.
      Check that the reservoir contains the specified amount of brake fluid. Check for leaks.
    • Cable
      Grease and adjust cables.
    • Drive chain
      Lubricate the drive chain and adjust its tension.
    • Fuel tank
      Clean the inside of the fuel tank. Check for leaks.
    • Suspension
      Check for oil leaks in the front fork or the rear shock absorber. Check that the mounted conditions are good.
    • Sprocket
      Check for looseness in the sprocket mounted on the rear wheel.
    • Mounting bolts and nuts
      Check mounted areas for looseness.
      NOTICE
      After a break-in or before each race, always check the points shown in "TORQUECHECK POINTS" for tightening torques and retighten them. (Refer to "TORQUE-CHECK POINTS".)
    • Greasing and oiling
      Always grease or oil the specified points.

TORQUE-CHECK POINTS

Frame construction Frame to rear frame
Frame to engine protector
Combined seat and fuel tank Fuel tank to frame
Engine mounting Frame to engine
Engine bracket to engine
Engine bracket to frame
Seat Seat to frame
Steering Steering stem to handlebar Steering stem to frame
Steering stem to upper bracket
Upper bracket to handlebar
Suspension Front Steering stem to front fork Front fork to upper bracket
Front fork to lower bracket
Rear Link Assembly of links
Link to frame
Link to rear shock absorber
Link to swingarm
Mounting of rear shock absorber Rear shock absorber and frame
Mounting of swingarm Tightening of pivot shaft
Wheel (s) Mounting of wheel Front Tightening of wheel axle
Tightening of axle holder
Tightening of spoke nipple
Rear Tightening of wheel axle
Wheel to rear wheel sprocket
Tightening of spoke nipple
Brake(s) Front Brake caliper to front fork
Brake disc to wheel
Tightening of union bolt
Brake master cylinder to handlebar
Tightening of bleed screw
Tightening of brake hose holder
Rear Brake pedal to frame
Brake disc to wheel
Tightening of union bolt
Brake master cylinder to frame
Tightening of bleed screw
Tightening of brake hose holder
Shift pedal Shift pedal to shift shaft
Fuel system Fuel pump to fuel tank
Fuel sender to fuel tank

Our support email:
ebooklibonline@outlook.com

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

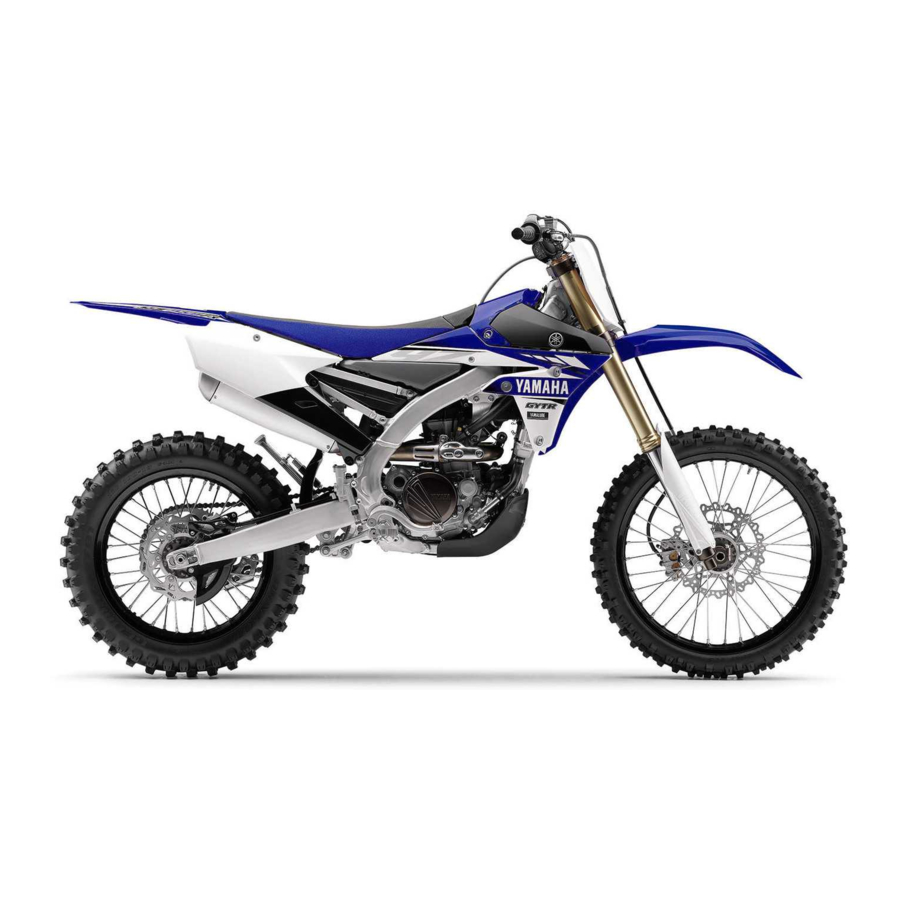

Download Yamaha YZ250FX 2017, YZ250FXH 2017 Manual

Advertisement

Need help?

Need help?

Do you have a question about the YZ250FX 2017 and is the answer not in the manual?

Questions and answers

Table of Contents
