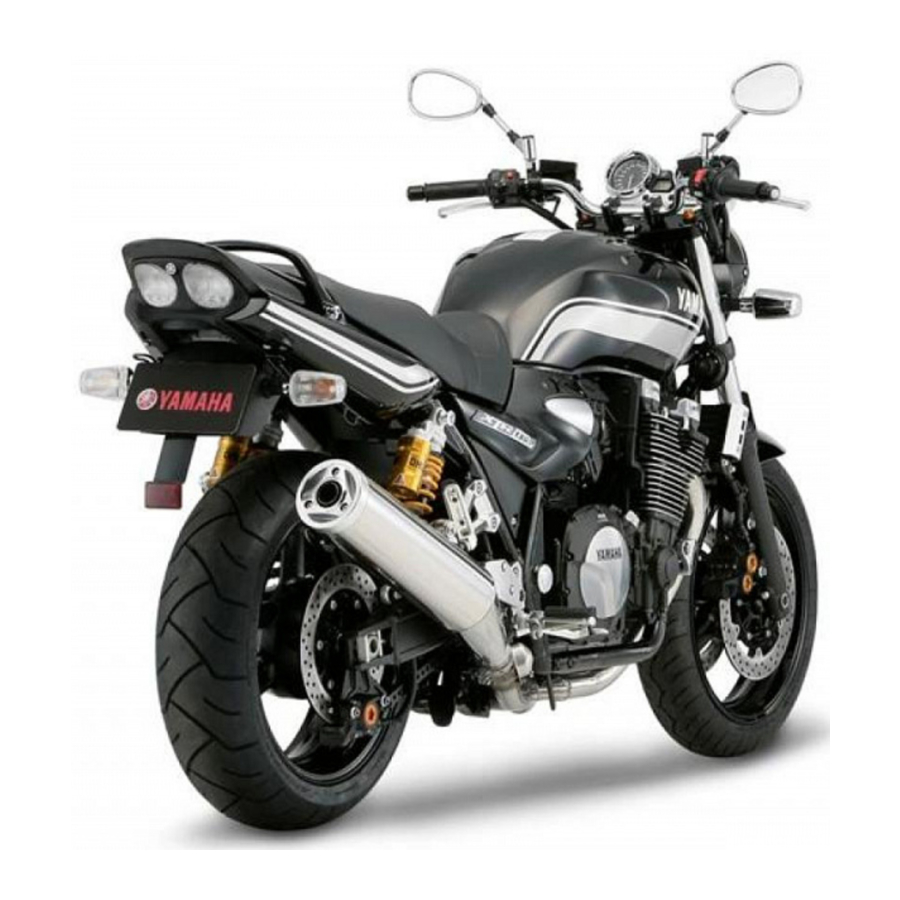

Yamaha XJR1300 1999, XJR1300L 1999 Manual

Yamaha XJR1300 1999, XJR1300L 1999 Manual

Also See for XJR1300 1999:

Advertisement

Yamaha XJR1300 1999, XJR1300L 1999 Manual

SYMBOLS

NOTE:
PARTICULARLY IMPORTANT INFORMATION
This materials distinguished by the following notation.
warning The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

Failure to follow WARNING instructions could result in severe injury or death to the motorcycle operator, a bystander or a person checking or repairing the motorcycle.

A CAUTION indicates special precautions that must be taken to avoid damage to the motorcycle.
NOTE:
A NOTE provides key information to make procedures easier or clearer.
The following symbols are not relevant to every vehicle.
Symbols to indicate the subject of each chapter.

  1. General information
  2. Specifications
  3. Periodic checks and adjustments
  4. Engine
  5. Carburetor(-s)
  6. Chassis
  7. Electrical system
  8. Troubleshooting

Symbols to indicate the following.

  1. Serviceable with engine mounted
  2. Filling fluid
  3. Lubricant
  4. Special tool
  5. Tightening torque
  6. Wear limit, clearance
  7. Engine speed
  8. Electrical data

Symbols to in the exploded diagrams indicate the types of lubricants and lubrication points.

  1. Engine oil
  2. Gear oil
  3. Molybdenum disulfide oil
  4. Wheel bearing grease
  5. Lithium soap base grease
  6. Molybdenum disulfide grease

Symbols to in the exploded diagrams indicate the following:

  1. Apply locking agent (LOCTITE®)
  2. Replace the part

GENERAL INFORMATION

MOTORCYCLE IDENTIFICATION

VEHICLE IDENTIFICATION NUMBER (For E)
The vehicle identification number is stamped into the right side of the steering head.

MODEL CODE
The model code label is affixed to the frame. This information will be needed to order spare parts.

SPECIFICATIONS

GENERAL SPECIFICATIONS

Model XJR1300(L)
Model code: 5EA2/5EA3/5EA4
Dimensions:
Overall length 2175 mm (GB) (D) (NL) (B) (F) (E) (P) (I) (GR) (SF) (AUS)
2250 mm (N) (SF) (G) (A)
Overall width 775 mm
Overall height 1115 mm
Seat height 775 mm
Wheelbase 1500 mm
Minimum ground clearance 120 mm
Minimum turning radius 2800 mm
Basic weight:
With oil and full fuel tank 253 kg
Engine:
Engine type
Cylinder arrangement
Displacement
Bore x stroke
Compression ratio
Compression pressure (STD)
Starting system
Lubrication system:
Air-cooled 4-stroke, DOHC
Forward-inclined parallel 4-cylinder
1250 cm3
79.0 x 63.8 mm
9.7: 1
1050 kPa (10.5 kg/cm2,10.5 bar) at 400 r/min
Electric starter
Wet sump
Oil type or grade: SE or higher grade
Engine oil
Periodic oil change
With oil filter replacement
Total amount
3. 3.0 L
3.35 L
4.2 L
Oil cooler capacity (including all routes) 0.2 L
Air filter: Dry type element
Fuel:
Type
Fuel tank capacity
Fuel reserve amount
Regular unleaded gasoline
21 L
4.5 L
Carburetor:
Type/quantity
Manufacturer
BS36/4
MIKUNI
Spark plug:
Type x quantity
Manufacturer
Spark plug gap
DPR8EA-9/X24EPR-U9 x 4
NGK/DENSO
0.8 ~ 0.9 mm
Clutch type: Wet, multiple-disc
Transmission:
  • Primary reduction system
  • Primary reduction ratio
  • Secondary reduction system
  • Secondary reduction ratio
  • Transmission type
  • Operation
  • Gear ratio
    • 1st
    • 2nd
    • 3rd
    • 4th
    • 5th
  • Spur gear
  • 98/56 (1.750)
  • Chain drive
  • 38/17 (2.235)
  • Constant mesh 5-speed
  • Left foot operation
    • 40/14 (2.857)
    • 36/18 (2.000)
    • 33/21 (1.571)
    • 31/24 (1.292)
    • 29/26 (1.115)
Chassis:
Frame type
Caster angle
Trail
Double cradle
25.5
100 mm
Tire:
Type Tubeless
Size front
rear
120/70ZR17 (58W)
180/55ZR17 (73W)
Manufacturer front
rear
MICHELIN/DUNLOP/BRIDGESTONE
MICHELIN/DUNLOP/BRIDGESTONE
Type front
rear
MACADAM 90X/D207F/BT57F
MACADAM 90X/D207/BT57R
Tire pressure (cold tire):
  • Maximum load-except motorcycle
  • Loading condition A*
    • front
    • rear
  • Loading condition B*
    • front
    • rear
  • High-speed riding
    • front
    • rear
  • 207 kg
  • 0 ~ 90 kg
    • 250 kPa (2.5 kg/cm2, 2.5 bar)
    • 250 kPa (2.5 kg/cm2, 2.5 bar)
  • 90 ~ 207 kg
    • 250 kPa (2.5 kg/cm2, 2.5 bar)
    • 290 kPa (2.9 kg/cm2, 2.9 bar)
    • 250 kPa (2.5 kg/cm2, 2.5 bar)
    • 290 kPa (2.9 kg/cm2, 2.9 bar)
Brake:
Front brake type
operation
Dual disc brake
Right hand operation
Rear brake type
operation
Single disc brake
Right foot operation
Suspension:
Front suspension
Rear suspension
Telescopic fork
Swingarm
Shock absorber:
Front shock absorber
Rear shock absorber
Coil spring/Oil Damper
Coil spring/Gas-oil damper
Wheel travel:
Front wheel travel
Rear wheel travel
130 mm
110 mm
Electrical:
Ignition system
Generator system
Battery type
Battery capacity
T.C.I. (Digital)
A.C. generator
GT14B-4
12 V 12AH
Headlight type: Halogen bulb
Bulb wattage x quantity:
Headlight
Auxiliary light
Tail/brake light
Flasher light
Meter light
Neutral indicator light
High beam indicator light
Oil level indicator light
Turn indicator light
12 V 60 W/55 W x 1
12 V 4 W x 1
12 V 5 W/21 W x 2
12 V 21 W x 4
12 V 1.7 W x 4
12 V 1.7 W x 1
12 V 3.4 W x 1
12 V 1.7 W x 1
12 V 1.7 W x 2

*Load is the total weight of cargo, rider, passenger, and accessories.

MAINTENANCE SPECIFICATIONS

ENGINE

Model Standard Limit
Cylinder head:
Warp limit
0.1 mm
Cylinder:
Bore size
Taper limit
Out of round limit
Wear limit
79.00 x 79.01 mm



0.05 mm
0.05 mm
79.1 mm
Camshaft:
Drive method
Cam cap inside diameter
Camshaft outside diameter
Shaft-to-cap clearance
Chain drive (Center)
25.000 25.021 mm
24.967 24.980 mm
0.020 0.054 mm



Cam dimensions

Intake
  1. 35.95 x 36.05 mm
  2. 28.248 x 28.348 mm
  3. 7.95 x 8.05 mm
  1. 35.85 mm
  2. 28.15 mm
Exhaust
  1. 35.95 x 36.05 mm
  2. 28.248 x 28.348 mm
  3. 7.95 x 8.05 mm
  1. 35.85 mm
  2. 28.15 mm
Camshaft runout limit
0.03 mm
Cam chain:
Cam chain type/No. of links
Cam chain adjustment method
79RH2015/156
Automatic

Valve, valve seat, valve guide:
Valve clearance (cold) IN
EX
0.11 0.15 mm
0.16 0.20 mm

Valve dimensions:
  1. head diameter
IN
EX
28.9 x 29.1 mm
24.9 x 25.1 mm

  1. face width
IN
EX
1.98 x 2.55 mm
1.98 x 2.55 mm

  1. seat width
IN
EX
0.9 x 1.1 mm
0.9 x 1.1 mm

  1. margin thickness
IN
EX
0.8 x 1.2 mm
0.8 x 1.2 mm

Stem outside diameter IN
EX
5.475 x 5.490 mm
5.460 x 5.475 mm
5.445 mm
5.43 mm
Guide inside diameter IN
EX
5.500 x 5.512 mm
5.500 x 5.512 mm
5.552 mm
5.552 mm
Stem-to-guide clearance IN
EX
0.010 x 0.037 mm
0.025 x 0.052 mm
0.08 mm
0.1 mm
Stem runout limit
0.01 mm
Valve seat width IN
EX
0.9 x 1.1 mm
0.9 x 1.1 mm
1.6 mm
1.6 mm
Valve spring:
Inner spring
Free length IN
EX
39.65 mm
39.65 mm
37.5 mm
37.5 mm
Set length (valve closed) IN
EX
32.8 mm
32.8 mm

Compressed pressure (installed) IN
EX
61.7 x 72.5 N (6.29 7.39 kg)
61.7 x 72.5 N (6.29 7.39 kg)

Tilt limit
IN
EX

2.5/1.7 mm
2.5/1.7 mm
Direction of winding (top view) IN IN
EX
Clockwise
Clockwise

Outer spring
Free length IN
EX
41.1 mm
41.1 mm
39 mm
39 mm
Set length (valve closed) IN
EX
34.8 mm
34.8 mm

Compressed pressure (installed) IN
EX
130.4 x 154.0 N (13.3 15.7 kg)
130.4 x 154.0 N (13.3 15.7 kg)

Tilt limit IN
EX

2.5/1.7 mm
2.5/1.7 mm
Direction of winding (top view) IN
EX
Counterclockwise
Counterclockwise

Piston:
Piston to cylinder clearance
Piston size "D"
Measuring point "H"
Piston off-set
Piston off-set direction
Piston pin bore inside diameter
Piston pin outside diameter
0.015 x 0.040 mm
78.970 x 78.985 mm
2 mm
1 mm
IN side
18.004 x 18.015 mm
17.991 x 18.000 mm
0.15 mm





Piston rings:
Top ring:
Type
Dimensions (B x T)
End gap (installed)
Side clearance (installed)
Barrel
1.00 x 3.05 mm
0.20 0.35 mm
0.045 0.080 mm


0.6 mm
0.1 mm
2nd ring:
Type
Dimensions (B x T)
End gap (installed)
Side clearance (installed)
Taper
1.2 x 3.0 mm
0.35 0.50 mm
0.03 0.07 mm


0.75 mm
0.1 mm
Oil ring:
Dimensions (B x T)
End gap (installed)
Side clearance
2.5 x 2.9 mm
0.2 0.5 mm
0.050 0.155 mm


Connecting rod:
Oil clearance 0.017 0.040 mm 0.08 mm
Crankshaft:
Crank width "A"
Assembly width "B"
Runout limit "C"
Big end side clearance "D"
Journal oil clearance
62.25 63.85 mm
382.0 383.2 mm
0.02 mm
0.160 0.262 mm
0.030 0.064 mm



0.5 mm
0.09 mm
Clutch:
  • Friction plate thickness
    Quantity
  • Clutch plate thickness
    Quantity
  • Clutch spring height
    Quantity
  • Clutch housing thrust clearance
  • Clutch housing radial clearance
  • Clutch release method
  • Push rod bending limit
  • 2.9 3.1 mm
    8 pcs
    1. 1.9 2.1 mm
      7 pcs
    2. 6 mm
      1 pc
    3. 0 x 0.2 mm
    4. 0.004 x 0.048 mm
    5. Hydraulic inner push
  • 2.8 mm
  • 0.1 mm <Warp limit>

  • 0.1 mm
  • 0.3 mm
Transmission:
Main axle deflection limit
Drive axle deflection limit

0.06 mm
0.06 mm
Shifter:
Shifter type
Guide bar bending limit
Guide bar

0.1 mm
Carburetor:
I.D. mark 5EA1 10
Main jet
Main air jet
Jet needle
Needle jet
Pilot jet
Pilot outlet
Pilot jet
Bypass 1
Bypass 2
Bypass 3
Pilot screw
Valve seat size
Starter jet
Starter jet
Throttle valve size
Float height
(M.J)
(M.A.J)
(J.N)
(N.J)
(P.A.J.1)
(P.O)
(P.J)
(B.P.1)
(B.P.2)
(B.P.3)
(P.S)
(V.S)
(G.S.1)
(G.S.2)
(Th. V)
(F.H)
#95
#45
5D96-2
Y-2
#127.5
0.85
#40
0.9
1.0
0.8
1-1/2
2.3
#32.5
0.6
#125
21.3 x 23.3 mm















Fuel level (using special tool)
Engine idle speed
Intake vacuum
3.5 x 4.5 mm
1000 x 1100 r/min
31.3 kPa (235 mmHg)


Lubrication system:
Oil filter type
Oil pump type
Tip clearance
Housing and rotor clearance
Side clearance
Bypass valve setting pressure
Relief valve operating pressure
Oil pressure (hot)
Pressure check location
Paper type
Trochoid type
0.12 x 0.17 mm
0.03 x 0.08 mm
0.03 x 0.08 mm
180 x 220 kPa (1.8 x 2.2 kg/cm2, 1.8 x 2.2 bar)
480 x 580 kPa (4.8 x 5.8 kg/cm2, 4.8 x 5.8 bar)
80 kPa (0.8 kg/cm2, 0.8 bar) at 1000 r/min
MAIN GALLERY


0.2 mm
0.15 mm
0.15 mm



Tightening torques

Part to be tightened Part name Thread size Q'ty Tightening torque Remarks
Nm m/kg
Camshaft cap Bolt M6 x 1.0 18 12 1.2
Oil gallery bolt Screw M6 x 1.0 1 7 0.7
Spark plug M12 x 1.25 4 18 1.8
Cylinder head Cap nut M10 x 1.25 12 35 3.5
Cylinder head cover Bolt M6 x 1.0 8 10 1.0
Cylinder Stud bolt M8 x 1.25 1 8 0.8
Cylinder Nut M8 x 1.25 3 20 2.0
Cylinder Nut M6 x 1.0 6 10 1.0
Connecting rod Nut M8 x 0.75 8 36 3.6
Cam sprocket Bolt M7 x 1.0 4 20 2.0
Timing chain tensioner Bolt M6 x 1.0 2 10 1.0
Timing chain tensioner cap bolt Bolt M11 x 1.0 1 20 2.0
Chain guide (upper) Bolt M6 x 1.0 4 10 1.0
Chain guide (intake) Plug M10 x 1.25 1 10 1.0
Oil pump Screw M6 x 1.0 2 10 1.0
Oil pump Bolt M6 x 1.0 3 10 1.0
Oil strainer housing Bolt M6 x 1.0 2 10 1.0
Oil filter case Union bolt M20 x 1.5 1 15 1.5
Oil pan Bolt M6 x 1.0 17 10 1.0
Drain bolt (engine oil) Plug M14 x 1.5 1 43 4.3
Oil gallery blind plug Plug M16 x 1.5 1 8 0.8
Drain filter Screw M5 x 0.8 1 7 0.7
Oil delivery pipe (oil pan) Bolt M6 x 1.0 4 10 1.0
Oil delivery pipe (oil cooler) Bolt M6 x 1.0 4 10 1.0
Oil cooler Bolt M6 x 1.0 2 10 1.0
Oil cooler cover Bolt M6 x 1.0 4 8 0.8
Oil delivery pipe (clamp) Bolt M6 x 1.0 1 10 1.0
Intake manifold Bolt M6 x 1.0 8 10 1.0
Air filter case cap Bolt M5 x 0.8 4 5 0.5
Air filter case Bolt M6 x 1.0 3 7 0.7
Exhaust pipe Nut M8 x 1.25 8 25 2.5
Muffler and stay Bolt M8 x 1.25 2 20 2.0
Exhaust chamber Bolt M10 x 1.25 1 25 2.5
Exhaust pipe and exhaust chamber Screw M8 x 1.25 4 20 2.0
Exhaust chamber and muffler Bolt M8 x 1.25 2 20 2.0
Exhaust pipe blind plug (CO test) Bolt M6 x 1.0 4 10 1.0
Bearing holder (main axle) Screw M6 x 1.0 3 12 1.2
Timing plate cover Bolt M6 x 1.0 4 7 0.7
Crankcase cover (right) Screw M5 x 0.8 2 4 0.4
Clutch cover Bolt M6 x 1.0 11 10 1.0
Drive sprocket cover Bolt M6 x 1.0 3 10 1.0
Clutch release cylinder Bolt M6 x 1.0 3 10 1.0
Crankcase Bolt M6 x 1.0 16 12 1.2
Crankcase Bolt M8 x 1.25 17 24 2.4
Crankcase Bolt M10 x 1.25 5 35 3.5
Main gallery Plug M20 x 1.5 3 12 1.2
Oil buffle plate Bolt M5 x 0.8 3 4 0.4
Stopper plate Bolt M6 x 1.0 1 10 1.0
Bearing housing Screw M6 x 1.0 3 10 1.0
HY-VO chain guide Bolt M6 x 1.0 2 10 1.0
Clutch boss Nut M20 x 1.5 1 70 7.0
Clutch pressure plate Bolt M6 x 1.0 6 8 0.8
Push lever comp. Bolt M6 x 1.0 2 10 1.0
Drive sprocket Nut M22 x 1.5 1 85 8.5
Shift shaft stopper Screw M8 x 1.25 1 22 2.2
Stopper plate
(Starter clutch idle gear shaft)
Screw M6 x 1.0 2 7 0.7
Stopper lever Bolt M6 x 1.0 1 10 1.0
Side plate Screw M5 x 0.8 1 4 0.4
Shift arm Bolt M6 x 1.0 1 10 1.0
Shift lod Nut M6 x 1.0 2 8 0.8
A.C. generator Bolt M8 x 1.25 2 25 2.5
Oil level sensor Bolt M6 x 1.0 2 10 1.0
Rotor Bolt M10 x 1.25 1 45 4.5

Tightening sequence
Cylinder head
Tightening sequence - Step 1

Crankcase
Tightening sequence - Step 2

Lubrication chart:
Lubrication chart

CHASSIS

Model Standard Limit
Steering system:
Steering bearing type Angular bearing
Front suspension:
Front fork travel
Fork spring free length
Fitting length
Collar length
130 mm
407.3 mm
363.3 mm
150 mm

395 mm
Spring rate (K1)
(K2)
4.9 N/mm (0.5 kg/mm)
8.8 N/mm (0.9 kg/mm)

Stroke (K1)
(K2)
0 83 mm
83 130 mm

Optional spring
Oil capacity
Oil level
Oil grade
No
538 cm3
137 mm
Fork oil 10W or equivalent



Rear suspension:
Shock absorber travel
Spring free length
Fitting length
88 mm
210 mm
190 mm

206 mm
Spring rate (K1)
(K2)
20.6 N/mm (2.1 kg/mm)
31.4 N/mm (3.2 kg/mm)

Stroke (K1)
(K2)
0 50 mm
50 88 mm

Front wheel:
Type
Rim size
Rim material
Cast wheel
17 x MT3.50
Aluminum


Rim runout limit radial
lateral

1 mm
0.5 mm
Rear wheel:
Type
Rim size
Rim material
Cast wheel
17 x MT5.50
Aluminum

Rim runout limit radial
lateral


1 mm
Drive chain:
Type/manufacturer
No. of links
Chain free play
50ZVM/DAIDO
110
20 30 mm


Front disc brake:
Type
Disc outside diameter x thickness
Disc deflection limit
Pad thickness
Master cylinder inside diameter
Caliper cylinder inside diameter
Brake fluid type
Dual
298 x 5 mm

5.5 mm
14 mm
30.2 mm and 27 mm
DOT #4


0.2 mm
0.5 mm


Rear disc brake:
Type
Disc outside diameter thickness
Disc deflection limit
Pad thickness
Master cylinder inside diameter
Caliper cylinder inside diameter
Brake fluid type
Single
267 5 mm

5.5 mm
12.7 mm
42.85 mm
DOT #4


0.15 mm
0.5 mm


Brake lever & brake pedal:
Brake pedal position
Brake pedal position 45 mm
Throttle grip free play 3 5 mm

Tightening torques

Part to be tightened Part name Thread size Q'ty Tightening torque Remarks
Nm m/kg
Handle crown and inner tube Bolt M8 x 1.25 2 30 3.0
Handle crown and steering stem Nut M22 x 1.0 1 110 11.0
Handle crown and handlebar holder (lower) Nut M10 x 1.25 2 40 4.0
Upper handlebar holder Bolt M8 x 1.25 4 23 2.3
Lower bracket and inner tube Bolt M8 x 1.25 4 23 2.3
Steering stem and ring nut Nut M25 x 1.0 1 18 1.8 See "NOTE"
Front master cylinder and holder Bolt M6 x 1.0 2 10 1.0
Front brake hose union bolt Bolt M10 x 1.25 1 30 3.0
Meter Nut M6 x 1.0 2 7 0.7
Headlight stay (lower) Bolt M6 x 1.0 2 10 1.0
Grip end M16 x 1.5 2 26 2.6
Front turn signal lights Nut M12 x 1.25 2 7 0.7
Front fender and front fork Bolt M6 x 1.0 4 7 0.7
Headlight stay and upper cover Cap nut M6 x 1.0 4 7 0.7
Engine stay (front) and frame Bolt M8 x 1.25 4 30 3.0
Engine mount (front)
(rear-upper)
Nut
Nut
M10 x 1.25
M10 x 1.25
2
1
64
55
6.4
5.5
Engine stay (rear-upper) and frame Bolt M10 x 1.25 2 48 4.8
Engine stay (rear-upper) and frame Bolt M12 x 1.25 2 88 8.8
Engine stay (rear-lower) Nut M10 x 1.25 2 64 6.4
Frame and down tube Nut and Bolt M8 x 1.25 4 26 2.6
Pivot shaft Nut M18 x 1.5 1 125 12.5
Rear shock absorber and frame Bolt M8 x 1.25 1 23 2.3
Rear shock absorber and swing arm Bolt M10 1.25 1 30 3.0
Drive chain guide and swing arm Bolt M6 x 1.0 1 7 0.7
Chain case and swing arm Screw M6 x 1.0 2 7 0.7
Fuel tank Bolt M8 x 1.25 1 19 1.9
Fuel tank cap Screw M5 x 0.8 4 6 0.6
Fuel cock Screw M6 x 1.0 2 7 0.7
Seat lock Nut M6 x 1.0 2 7 0.7
Fuel sender Bolt M5 x 0.8 4 4 0.4
Side cover and frame Screw M6 x 1.0 2 7 0.7
Tail light Nut M6 x 1.0 3 7 0.7
Rear fender and frame Bolt M6 x 1.0 4 7 0.7
Rear fender cover and cover Screw M5 x 0.8 2 4 0.4
Rear fender cover and frame Screw M6 x 1.0 2 7 0.7
Grab bar Bolt M8 x 1.25 4 30 3.0
Ignitor Screw M6 x 1.0 2 7 0.7
Rear turn signal light and rear fender Nut M12 x 1.25 2 4 0.4
Hook Screw M6 x 1.0 2 7 0.7
Helmet holder Bolt M6 x 1.0 2 13 1.3
Tail light bracket Bolt M8 x 1.25 4 30 3.0
Side stand Bolt M10 x 1.25 1 40 4.0
Side stand Nut M10 x 1.25 1 40 4.0
Side stand switch Screw M5 x 0.8 2 4 0.4
Footrest bracket Bolt M8 x 1.25 4 28 2.8
Rear footrest bracket Bolt M8 x 1.25 4 28 2.8
Footrest and footrest bracket Bolt M10 x 1.25 2 55 5.5
Rear brake reservoir tank Screw M6 x 1.0 1 5 0.5
Rear master cylinder and bracket Bolt M8 x 1.25 2 23 2.3
Center stand Nut and Bolt M10 x 1.25 2 41 4.1
Front wheel axle M16 x 1.5 1 73 7.3
Front wheel axle pinch bolt Bolt M8 x 1.0 1 19 1.9
Front brake caliper and front fork Bolt M10 x 1.25 4 40 4.0
Front brake disk and hub Bolt M8 x 1.25 12 20 2.0
Front brake caliper and bleed screw M8 x 1.25 2 6 0.6
Front brake hose Union bolt M10 x 1.25 2 30 3.0
Tensionbar and swingarm Nut and bolt M8 x 1.25 2 23 2.3
Driven sprocket and hub Nut M8 x 1.25 6 60 6.0
Chain puller Nut M8 x 1.25 2 16 1.6
Rear brake caliper and caliper bracket Bolt M10 x 1.25 2 40 4.0
Rear wheel axle Nut M18 x 1.5 1 150 15.0
Rear brake hose Union bolt M10 x 1.25 2 30 3.0
Rear brake caliper and bleed screw M8 x 1.25 1 6 0.6
Rear brake disc and hub Bolt M8 x 1.25 6 20 2.0

NOTE:

  1. First, tighten the ring nut approximately 52 Nm (5.2 mfkg) by using the torque wrench, then loosen the ring nut one turn.
  2. Retighten the ring nut to specification.

ELECTRICAL

Model Standard Limit
Voltage: 12 V
Ignition system:
Ignition timing (B.T.D.C.)
Advanced timing (B.T.D.C.)
Advancer type
5/1050 r/min
50/5000 r/min
TPS & Electrical type


T.C.I.:
Pickup coil resistance/color
T.C.I. unit model/manufacturer
248 x 372 Ω/W/R-W/G
5EA20/YAMAHA

Ignition coil:
Model/manufacturer
Minimum spark gap
Primary winding resistance
Secondary winding resistance
83R/YAMAHA
6 mm
1.9 x 2.9 Ω
9.5 x 14.3 kΩ



Spark plug cap:
Type
Resistance
Resin type
10 kΩ

Charging system:
Type
Model/manufacturer
Normal output
Rotor coil resistance
Stator coil resistance
Brush overall length
Spring force
A.C. generator
B3G-B/DENSO
13.5 V 28 A/3000 r/min
2.8 x 3.0 Ω
0.19 x 0.21 Ω
13.7 mm
5.10 x 5.69 N (0.52 x 0.58 kg)





4.7 mm
Voltage regulator:
Type
Model/manufacturer
No load regulated voltage
Semi-conductor, field control type
B3G-B/DENSO
14.2 x 14.8 V


Electric starter system:
  • Type
  • Starter motor:
    • Model/manufacturer
    • Output
    • Brush overall length
    • Spring force
    • Commutator diameter
    • Mica undercut
  • Starter relay:
    • Model/manufacturer
    • Amperage rating
    • Coil winding resistance
  • Constant mesh type
    • SM-13/MITSUBA
    • 0.65 kW
    • 10 mm
    • 7.65 x 10.01 N (0.780 x 1.021 kg)
    • 28 mm
    • 0.7 mm
    • MS5E-491/JIDECO
    • 100 A
    • 4.2 4.6 Ω
    • 5 mm
    • 27 mm
Horn:
Type
Quantity
Model/manufacturer
Maximum amperage
Plane type
2 pcs
YF12/NIKKO
3 A



Flasher relay:
Type
Model/manufacturer
Self cancelling device
Flasher frequency
Full transistor type
FE246BH/DENSO
No
75 95 cyl/min



Oil level switch:
Model/manufacturer 5G2/DENSO
Fuel gauge:
Model/manufacturer
Sender unit resistance full empty
4 KG/NIPPON SEIKI
4 10 Ω
90 100 Ω


Starting circuit cut-off relay:
Model/manufacturer
Coil winding resistance
Diode
G8R-30Y-J/OMRON
162 198 Ω
Yes


Oil level switch relay:
Model/manufacturer G8D-117Y-2/OMRON
Circuit breaker:
  • Type
  • Amperage for individual circuit x Q'ty
    • MAIN
    • HEAD
    • LIGHT
    • SIGNAL
    • IGNITION
    • Reserve
  • Fuse
    • 30 A x 1
    • 15 A x 1
    • 15 A x 1
    • 7.5 A x 1
    • 30 A x 1
    • 15 A x 1
    • 7.5 A x 1

CONVERSION TABLE

All specification data in this manual are listed in SI and METRIC UNITS.
Use this table to convert METRIC unit data to IMPERIAL unit data.
Ex.

CONVERSION TABLE

METRIC TO IMP
Known Multiplier Result
Torque m/kg
m/kg
cm/kg
cm/kg
7.233
86.794
0.0723
0.8679
ft/lb
in/lb
ft/lb
in/lb
Weight kg
g
2.205
0.03527
lb
oz
Distance km/hr
km
m
m
cm
mm
0.6214
0.6214
3.281
1.094
0.3937
0.03937
mph
mi
ft
yd
in
in
Volume/Capacity cc (cm3)
cc (cm3)
lt (liter)
It (liter)
0.03527
0.06102
0.8799
0.2199
oz (IMP liq.)
cu/in
qt (IMP liq.)
gal (IMP liq.)
Miscellaneous kg/mm
kg/cm2
Centigrade
55.997
14.2234
9/5 (C) + 32
lb/in
psi (lb/in2)
Fahrenheit (F)

GENERAL TIGHTENING TORQUES

This chart specifies tightening torques for standard fasteners with a standard ISO thread pitch. Tightening torque specifications for special components or assemblies are provided for each chapter of this manual. To avoid warpage, tighten multi-fastener assemblies in a crisscross pattern and progressive stages until the specified tightening torque is reached. Unless otherwise specified, tightening torque specifications require clean, dry threads. Components should be at room temperature.

  1. Distance across flats
  2. Outside thread diameter
A
(Nut)
B
(Bolt)
General specifications torques
Nm m/kg
10 mm 6 mm 6 0.6
12 mm 8 mm 15 1.5
14 mm 10 mm 30 3.0
17 mm 12 mm 55 5.5
19 mm 14 mm 85 8.5
22 mm 16 mm 130 13.0

LUBRICATION POINT AND GRADE OF LUBRICANT

ENGINE

Lubrication Point Symbol
Oil seal lips
O-ring
Bearing
Piston surface
Piston pin
Crankshaft pin
Crankshaft journal/big end
Connecting rod bolt/nut
Camshaft cam lobe/journal
Valve stem (IN, EX)
Valve stem end (IN, EX)
Valve lifter
Oil pump rotor (inner/outer), housing
Oil strainer assembly
Starter idle gear inner surface
Starter wheel gear inner surface
Starter clutch (outer/roller)
Crankcase cover (push rod hole)
Primary drive gear/damper
Transmission gear (wheel/pinion)
Shift cam
Shift fork/guide bar
Shift shaft assembly
Crankcase mating surfaces Yamaha bond No. 1215
Blind plug and oil seal (crankcase main gallery) Yamaha bond No. 1215

CHASSIS

Lubrication Point Symbol
Steering bearing (upper/lower) and bearing cover lip
Front wheel oil seal (left/right)
Rear wheel oil seal (left/right)
Clutch hub fitting area
Rear brake pedal shaft
Shift pedal
Centerstand sliding surface
Sidestand sliding surface
Tube guide (throttle grip) inner surface
Brake lever bolt, sliding surface
Clutch lever bolt, sliding surface
Rear footrest pivot
Swingarm pivot bearing
Swingarm pivot shaft outer surface
Swingarm thrust cover lip

CABLE ROUTING

Cable Routing - Step 1

  1. Starter motor cable
  2. Battery negative (–) lead
  3. Battery negative (–) lead connector
  4. AC generator connector
  5. Rear brake switch lead connector
  6. Neutral lead
  7. Pickup lead
  8. Sidestand switch lead
  9. Throttle position sensor
  10. Ignition coil lead (#2, 3)
  11. Throttle cable
  12. Engine ground lead
  13. Air ventilation hose
  14. Rear brake switch
  15. Starting circuit cutoff relay
  1. Fasten the wireharness to the seat rail with a plastic band. Make sure that the end of band down ward.
  2. Align the white tape on the wireharness with a plastic band and fasten them to the seat real. Make sure that the end of band down ward.
  3. Fasten the wireharness with the steel clamp on the frame.
  4. Route the wireharness and starter motor cable in front of the reservoir tank bracket and the battery negative (–) lead behind the reservoir tank bracket. And fasten them with a plastic band.
  5. Fasten the wireharness, neutral lead, sidestand switch lead, pickup coil lead, AC generator lead and rear brake switch lead to the frame with a plastic band. Make sure that the end of band forward of motorcycle.
  6. Fasten the wireharness to the frame with a plastic band. Make sure that the end of band down ward.
  7. Insert the plastic band through the hole of plastic panel and then fasten the throttle cables with it. Make sure that the end of band inside of motorcycle.
  8. Fasten the wireharness to the frame with a plastic band. Make sure that the end of band down ward.
  9. Fasten the high tension cables and throttle cables with a plastic clamp.
  10. Route the air ventilation hoses, air filter case drain hose, fuel tank drain hose and fuel tank breather hose through the engine guide.
  11. Fasten the AC generator lead, pick-up coil lead, sidestand switch lead and starter motor cable with a plastic band.
  12. Route the wireharness and starter motor cable behind the side cover bracket and fasten them with a plastic band at front of the bracket.
  13. Align the white paint marks of the fuel tank drain hose, fuel tank breather hose and air filter case drain hose.
  14. Touch the brake pipe to the brake caliper stopper.

Cable Routing - Step 2

  1. Clutch hose
  2. Starter cable
  3. Air filter case drain hose
  4. Frame ground
  5. Flasher relay connector
  6. Oil light relay connector
  7. Igniter unit connectors
  8. Starter motor
  9. AC generator
  10. Sidestand switch
  11. Sidestand switch lead
  12. Ignition coil lead (#1, 4)
  1. Insert the plastic band through the hole of plastic panel and then fasten the clutch hose with it. Make sure that the end of band inside of motorcycle.
  2. To headlight lower hole.
  3. Route the wireharness and starter cable through the guide.
  4. Connect the ignition lead with white marking tape to the ignition coil (#1, 4).
  5. Fasten the high tension cables (#1, 2) with a plastic clamp. Position the clamp at 50 – 80 mm above the high tension cable number.
  6. Fasten the horn lead to the frame with a plastic band. Make sure that the end of band down ward.
  7. Install the frame ground and igniter unit together with screw.
  8. Fasten the seat lock cable to the seat real with a plastic band. Make sure that the end of band down ward.
  9. Route the air filter case drain hose over the starter motor to right side of motorcycle.
  10. Position the clutch pipe parallel with the oil filter cover.
  11. Fasten the sidestand switch lead with steel clamp on the frame and then route it between the pickup cover, oil filter cover, AC generator and starter motor to the right side of motorcycle.
  12. Fasten the clutch hose with steel clamp on the frame.
  13. Clamp the gromet on the clutch hose with wire holder on the frame.
  14. Route the speedometer cable through the guide.
  15. Touch the brake pipe to the brake caliper stopper.
  16. Touch the brake pipe to the brake hose joint.

Cable Routing - Step 3

  1. Throttle cables
  2. Ignition coil (#2, 3)
  3. Throttle position sensor
  4. Neutral switch connector
  5. Pickup coil connector
  6. Sidestand switch connector
  7. Battery
  8. Reservoir tank
  9. Battery negative (–) lead
  10. Starting circuit cutoff relay
  11. Battery positive (+) lead connector
  12. Starter relay
  13. Seat lock cable
  14. Seat lock
  15. Battery positive (+) lead
  16. Fuse box
  17. Starter relay connector
  18. Flasher relay
  19. Oil light relay
  20. Igniter unit
  21. Fuel sender connector
  22. Starter cable
  23. Ignition coil (#1, 4)
  24. Taillight lead
  25. Starter cable
  1. Position the horn (high) to right side.
  2. Fasten the throttle cable (front side) to the frame with a plastic clamp.
  3. Fasten the throttle position sensor with steel clamp on the carburetor (#4).
  4. To fuel sender.
  5. Connect the fuel sender connector, neutral switch connector, pickup coil connector and sidestand switch connector above the air filter case.
  6. Route the battery negative (–) lead inside of the reservoir tank bracket and under the reservoir tank and then connect it.
  7. Fasten the battery positive (+) lead and battery positive (+) lead connector on the groove of the battery with the battery rubber band.
  8. Position the starter motor cable at 45 degree out side of the motorcycle.
  9. Position the wireharness, taillight lead and rear turn signal light leads (left and right) between the taillight bracket and rear fender rib.
  10. Position the seat lock cable inside under the seat lock bracket.
  11. Fasten the wireharness to the frame with a plastic band. Make sure that the end of band down ward.
  12. Route the starter cable between the throttle cables.
  13. Fasten the wireharness, starter cable to the frame with a plastic band. Make sure that end of band down ward.
  14. Fasten the wireharness, taillight lead and rear turn signal light leads (left and right) with steel clamp on the frame make sure that the end of clamp forward.
  15. Route the rear turn signal light leads (left and right) through the each holes of the rear fender.
  16. Touch the starter cable to the stopper and position it vertical of the motorcyle.

Cable Routing - Step 4

  1. Meter leads
  2. Main switch lead
  3. Starter cable
  4. Handlebar switch lead (left)
  5. Clutch hose
  6. Brake hose
  7. Handlebar switch lead (right)
  1. Route the throttle cables through the guide on the headlight stay.
  2. Route the meter leads, main switch lead into the upper hole of the headlight body.
  3. Route the handlebar switch lead (left) inside of the clutch hose. Fasten the handlebar switch lead (left), clutch hose and starter cable with a plastic band.
  4. Route the handlebar switch lead (left) and front turn signal light lead (left) into the left under hole of the headlight body.
  5. Route the front turn signal light leads (left and right) in front of the headlight stay.
  6. Route the speedometer cable through the guide on the headlight stay.
  7. To front brake master cylinder.
  8. Touch the brake pipe to the stopper.
  9. Route the handlebar switch lead (right) and front turn signal light lead (right) into the right under hole of the headlight stay.
  10. Fasten the handlebar switch lead (right) and front brake hose with a plastic band.

PERIODIC INSPECTION AND ADJUSTMENT

INTRODUCTION

This chapter includes all information necessary to perform recommended inspections and adjustments. These preventive maintenance procedures, if followed, will ensure more reliable vehicle operation and a longer service life. The need for costly overhaul work will be greatly reduced. This information applies to vehicles already in service as well as new vehicles that are being prepared for sale. All service technicians should be familiar with this entire chapter.

PERIODIC MAINTENANCE/LUBRICATION INTERVALS

ITEM REMARKS BREAK-IN
1,000 km
EVERY
6,000 km or 6 months 12,000 km or 12 months
Valves* Check valve clearance. Adjust if necessary. EVERY 24,000 km or 24 months
Spark plugs Check condition. Clean or replace of necessary.
Air filter Clean. Replace if necessary.
Carburetor* Check idle speed/synchronization/starter operation. Adjust if necessary.
Fuel line* Check fuel hose for cracks or damage.
Replace if necessary.
Fuel filter* Check condition. Replace if necessary.
Engine oil Replace (Warm engine before draining).
Engine oil filter* Replace.
Brake* Check operation/fluid leakage/See NOTE.
Correct if necessary.
Clutch* Check operation/fluid leakage/See NOTE.
Correct if necessary.
Swingarm pivot* Check swingarm assembly for looseness. Correct if necessary. Moderately repack every 24,000 km or 24 months.**
Rear suspension link pivots* Check operation. Apply grease lightly every 24,000 km or 24 months.**
Wheels* Check balance/damage/runout. Replace if necessary.
Wheel bearings* Check bearing assembly for looseness/damage.
Replace if damaged.
Steering bearings* Check bearing assembly for looseness.
Correct if necessary. Moderately repack every 24,000 km or 24 months.
Front forks* Check operation/oil leakage. Repair if necessary.
Rear shock absorber* Check operation/oil leakage. Repair if necessary.
Drive chain Check chain free play/alignment. Adjust if necessary.
Clean and lube.
EVERY 500 km
Fittings/Fasteners* Check all chassis fittings and fasteners.
Correct if necessary.
Center and sidestand* Check operation. Repair if necessary.
Sidestand switch* Check operation. Clean or replace if necessary.
A.C. Generator* Replace generator brushes every 100,000 km.

PERIODIC MAINTENANCE/LUBRICATION INTERVALS

*: It is recommended that these items be serviced by a Yamaha dealer.
**: Molybdenum disulfide grease.
***: Lithium soap base grease.
NOTE:
Brake fluid replacement:

  1. When disassembling the master cylinder, caliper cylinder or clutch release cylinder, replace the brake fluid. Normally check the brake fluid level and add the fluid as required.
  2. On the inner parts of the master cylinder, caliper cylinder and clutch release cylinder, replace the oil seals every two years.
  3. Replace the brake and clutch hoses every four years, or if cracked or damaged.

XJR1300'99 WIRING DIAGRAM for EUR

Wiring Diagram

  1. AC generator
  2. Fuse (main)
  3. Battery
  4. Starter relay
  5. Main switch
  6. Fuse (ignition)
  7. Starter motor
  8. Starting circuit cut-off relay
  9. Ignitor unit
  10. Ignition coil
  11. Spark plug
  12. Pickup coil
  13. TPS (throttle position sensor)
  14. Neutral switch
  15. Sidestand switch
  16. Oil level relay
  17. Start switch
  18. Engine stop switch
  19. Front brake switch
  20. Handlebar switches (right)
  21. Lights switch
  22. Fuse (signal)
  23. Rear brake switch
  24. Horn
  25. Flasher relay
  26. Oil level switch
  27. Connector
  28. Meter assembly
  29. Tachometer
  30. Fuel gauge
  31. Fuel sender
  32. Meter lights
  33. Neutral indicator light
  34. Turn signal indicator light (left)
  35. Turn signal indicator light (right)
  36. Oil warning light
  37. High beam indicator light
  38. Clutch switch
  39. Turn signal switch
  40. Horn switch
  41. Pass switch
  42. Dimmer switch
  43. Handlebar switch (left)
  44. Fuse (headlight)
  45. Auxiliary light
  46. Tail / brake light
  47. Headlight
  48. Front turn signal lights
  49. Rear turn signal lights

COLOR CODE

B Black
Br Brown
Ch Chocolate
Dg Dark green
G Green
Gy Gray
L Blue
Lg Light green
O Orange
Sb Sky blue
P Pink
R Red
Y Yellow
B/L Black/Blue
B/R Black/Red
B/Y Black/Yellow
Br/L Brown/Blue
Br/W Brown/White
G/Y Green/Yellow
L/B Blue/Black
L/R Blue/Red
L/W Blue/White
L/Y Blue/Yellow
R/B Red/Black
R/L Red/Blue
R/W Red/White
R/Y Red/Yellow
W/G White/Green
W/R White/Red
Y/B Yellow/Black

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Yamaha XJR1300 1999, XJR1300L 1999 Manual

Advertisement

Need help?

Need help?

Do you have a question about the XJR1300 1999 and is the answer not in the manual?

Questions and answers

Table of Contents
