EM- -22

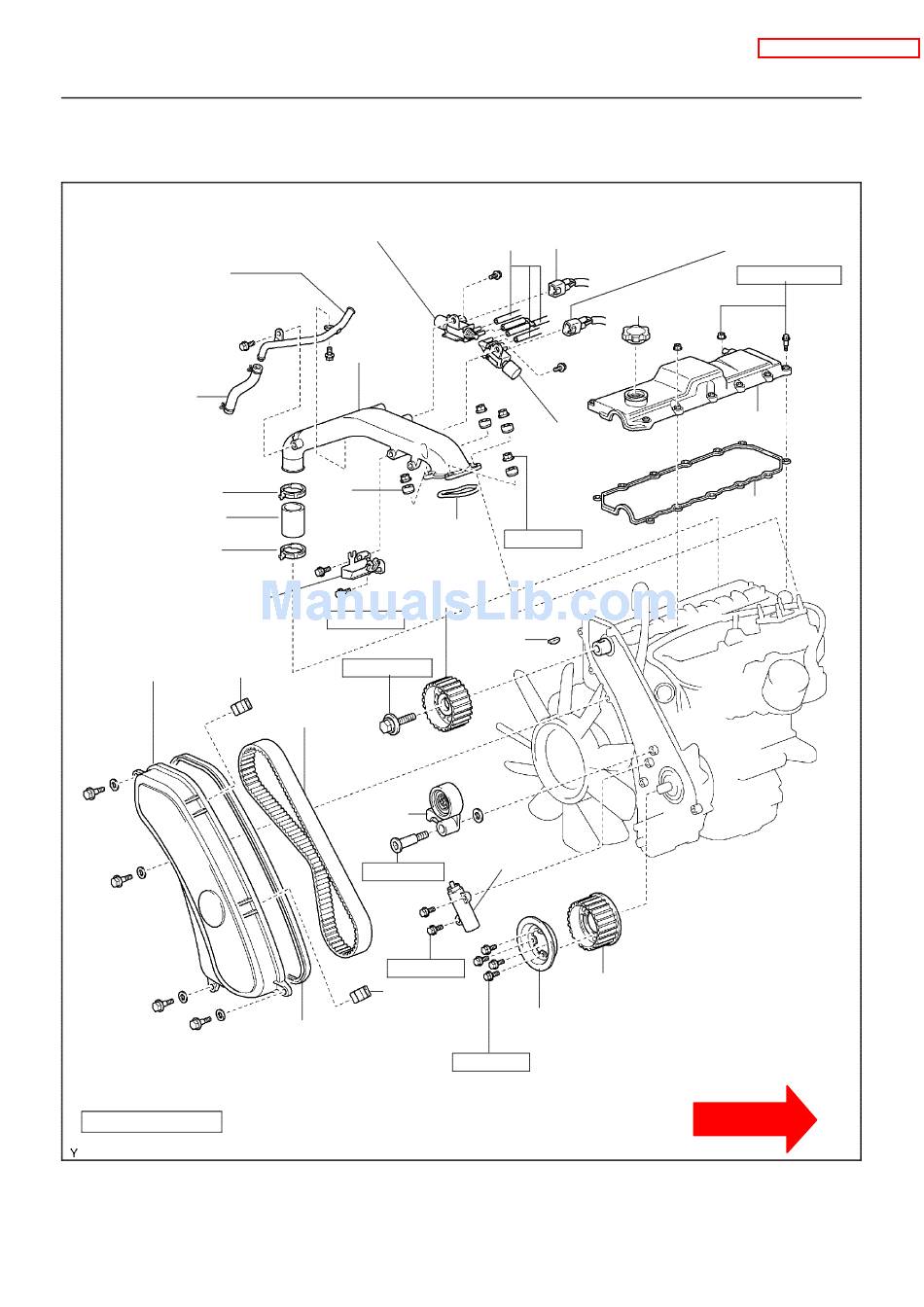

TIMING GEAR
COM P ONE NT S
PCV Pipe
PCV Hose
Clamp
No.2 Air Hose
Clamp
Accelerator
Cable Bracket
Timing Belt Cover
N∙m (kgf∙cm, ft∙lbf) : Specified torque
z Non--reusable part
ENGINE MECHANICAL
VSV for No.1 Intake
Constrictor Control
Intake Pipe
Seal
Washer
No.1 Camshaft
Timing Pulley
12 (120, 9)
Clip
98 (1,000, 72)
Timing Belt
Idler Pulley
35 (350, 25)
13 (130, 9)
Clip
Gasket
- - TIMING GEAR
VSV for No.1 Intake
Constrictor Control
Connector
Vacuum Hose
VSV for
No.2 Intake
Constrictor
Control
z Gasket
12 (120, 9)
Set Key
Timing Belt
Tensioner
No.2 Camshaft Timing Pulley
No.2 Camshaft Timing Pulley Flange
13 (130, 9)
1KZ-TE Pages From Manual
TO MODEL INDEX
VSV for No.2 Intake
Constrictor Control
Connector
9 (90, 78 in.∙lbf)
Filler Cap
x 10
Cylinder Head Cover
Gasket
CONTINUED
EM156- -01
A10775
