Modifying Units; Finding A Unit - DigiTech DigiGate-700 User Manual

DigiGate-700 for Windows
™

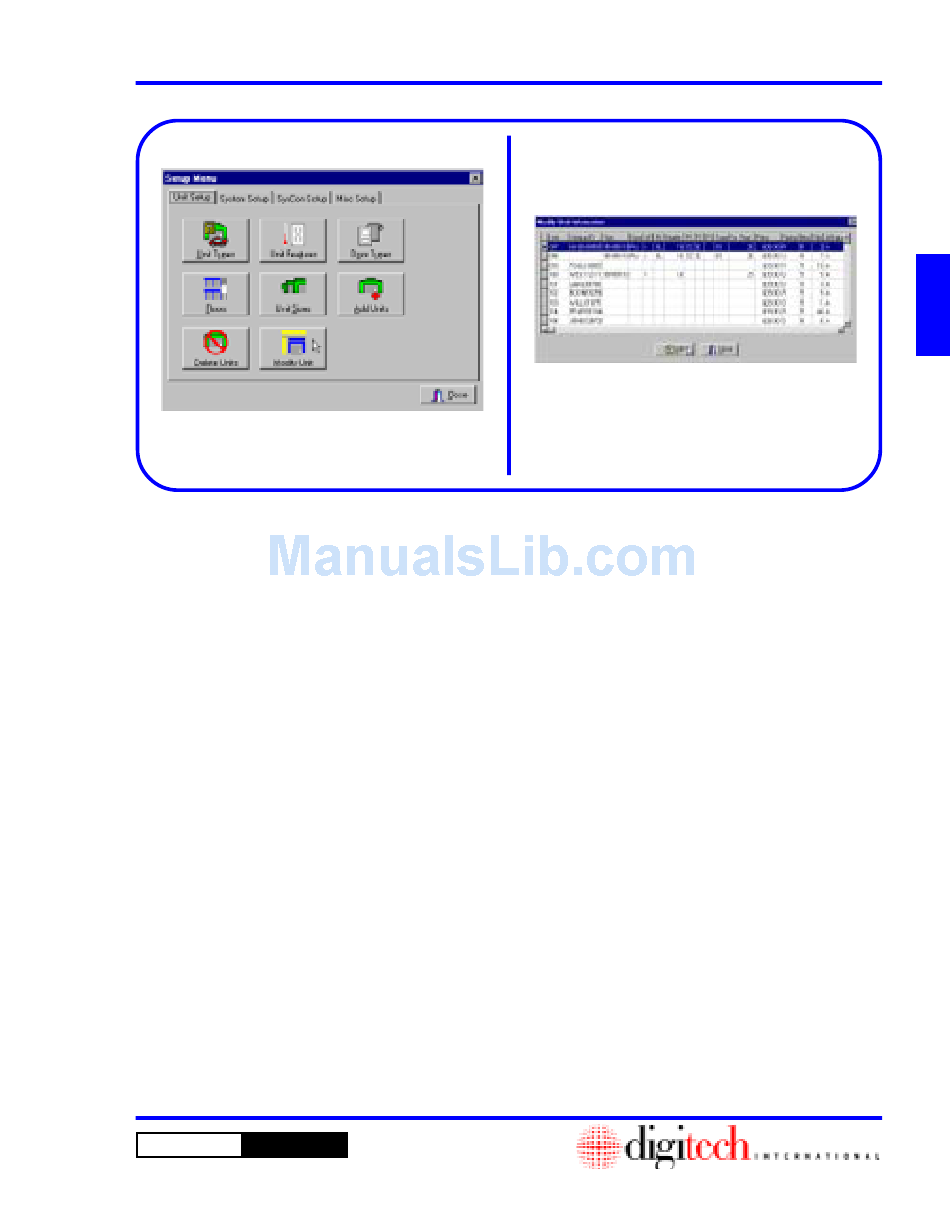

Figure 2-84
Modifying Units may be used to do price changes, unit feature changes, or fix errors found from the initial
loading of units. The unit screen is basically the same as that found in the Add Units section.
1. Click on the Unit Setup tab of the Setup
Menu , then Click on the Modify Units
button. Figure 2-84.
DigiGate-700
for Windows
™
- User's Guide
®

Modifying Units

Finding a Unit

®
Figure 2-85
2. This will open the Modify Unit Information
window. Figure 2-85.
NOTE: The Modify Unit Information
window is a grid. Each row in the grid is a unit.
3. Select a unit, (row in the grid) and Click the
Edit button to modify unit information, as
described in the following sections, or the
Close button to abandon this operation and
return to the Setup Menu . Figure 2-85.
2 - 43
