I - 2

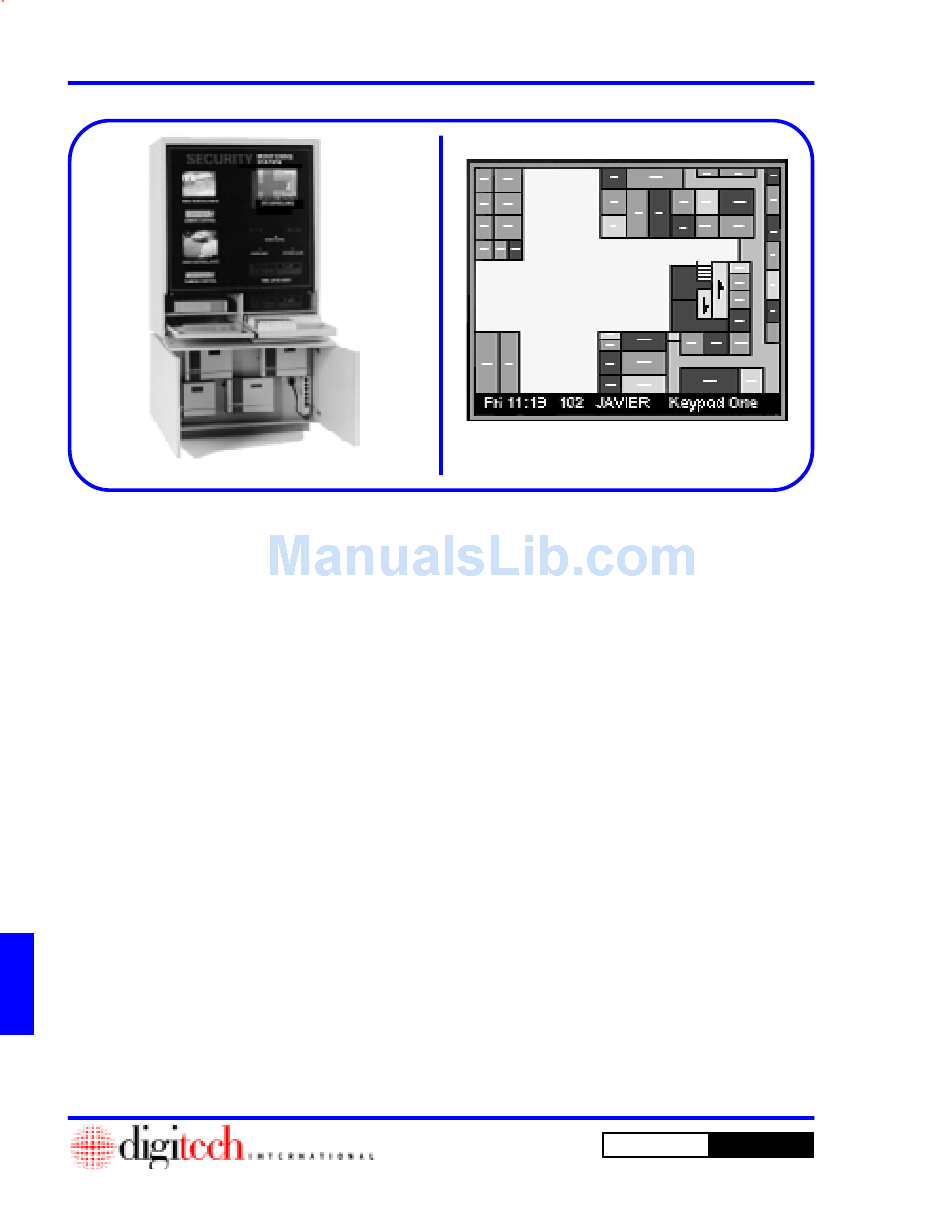

Figure I-1
The DigiGraphics system, (Available as an option to the DigiGate-700 System), is a separate
display of your site's units and their status. DigiGraphics runs independent of your PC through its
own graphics generator designed to display the graphical site plan and unit status. The graphics
generator communicates with the DigiGate-700 for Windows System Controller to provide a real
time color coded display of the status of each unit.
The Security Monitoring Station shown in Figure I-1 contains the DigiGraphics system with its
display in the upper right corner; also shown enlarged in Figure I-2. The bottom line on the display
shows the last activity that occurred on the site. Figure I-2.
A multifunction remote control, Figure I-3, Page I-3, allows you to control the display of the site,
the activity log, and the unit's status.
In its normal state, the display scans an enlarged view of your site showing each unit, labeled with
its number and in a color that gives its status.
The default color designations are:
Green
Blue
Dark Red
Flashing Medium Red
Flashing Yellow
Orange
Introduction
for Vacant Units
for Rented Units
for Delinquent Units
for Units Alarmed
for Tenants On-Site
for List (Highlighting from the Find function)
The DigiGraphics System
™
Figure I-2
DigiGate-700
for Windows
™ ®
