DigiTech DigiGate-700 User Manual page 37

DigiGate-700 for Windows
™

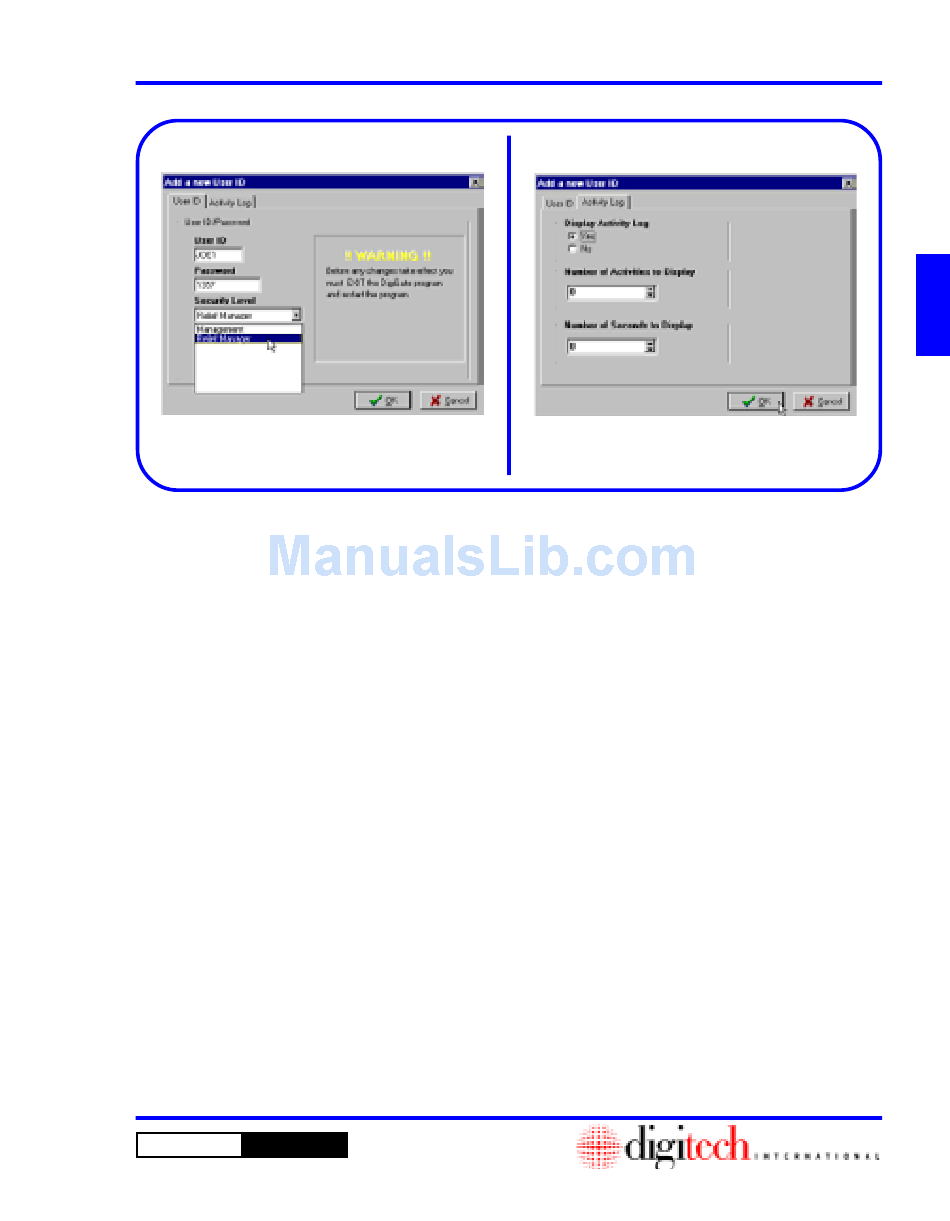

Figure 2-16
8. Select the Security Level list box by Clicking
on the data area or the down arrow at the right
side of the data area. The list will drop down
showing the available security levels.
Figure 2-16.
9. Select the proper security level by Clicking on
the text. The box will close and your selection
will be displayed.
10. Click on the Activity Log tab to display the
setup window. Figure 2-17.
The Activity Log is the display of gate and
door activity for the DigiGate-700 for Win-
dows system. It can be set to display whenever
the Main DigiGate for Windows tool bar is
open.
DigiGate-700
for Windows
™
- User's Guide
®
®
Figure 2-17
11. In the Display Activity Log radio button set,
Click on one of the selections { Yes | No } to
have the monitor display or not display
respectively. Figure 2-17.
12. If you selected Yes in the Display set, you can
set the number of items to display and the
length of time the Monitor displays. Select the
Number of Activities to Display text box.
Here you can type in the number you prefer or
use the spinner arrows on the right to increase
or decrease the number. Figure 2-17.
13. Select the Number of Seconds to Display
text box. This is the amount of time the
monitor will remain on the screen when it is
activated. Entering a zero ("0") in this selection
will keep the Activity Log open continuously.
14. Enter your choice in the Number of Seconds
to Display text box.
15. Click on OK to accept and add a new user or
Cancel to discard the information entered.
2 - 9
