2 - 4

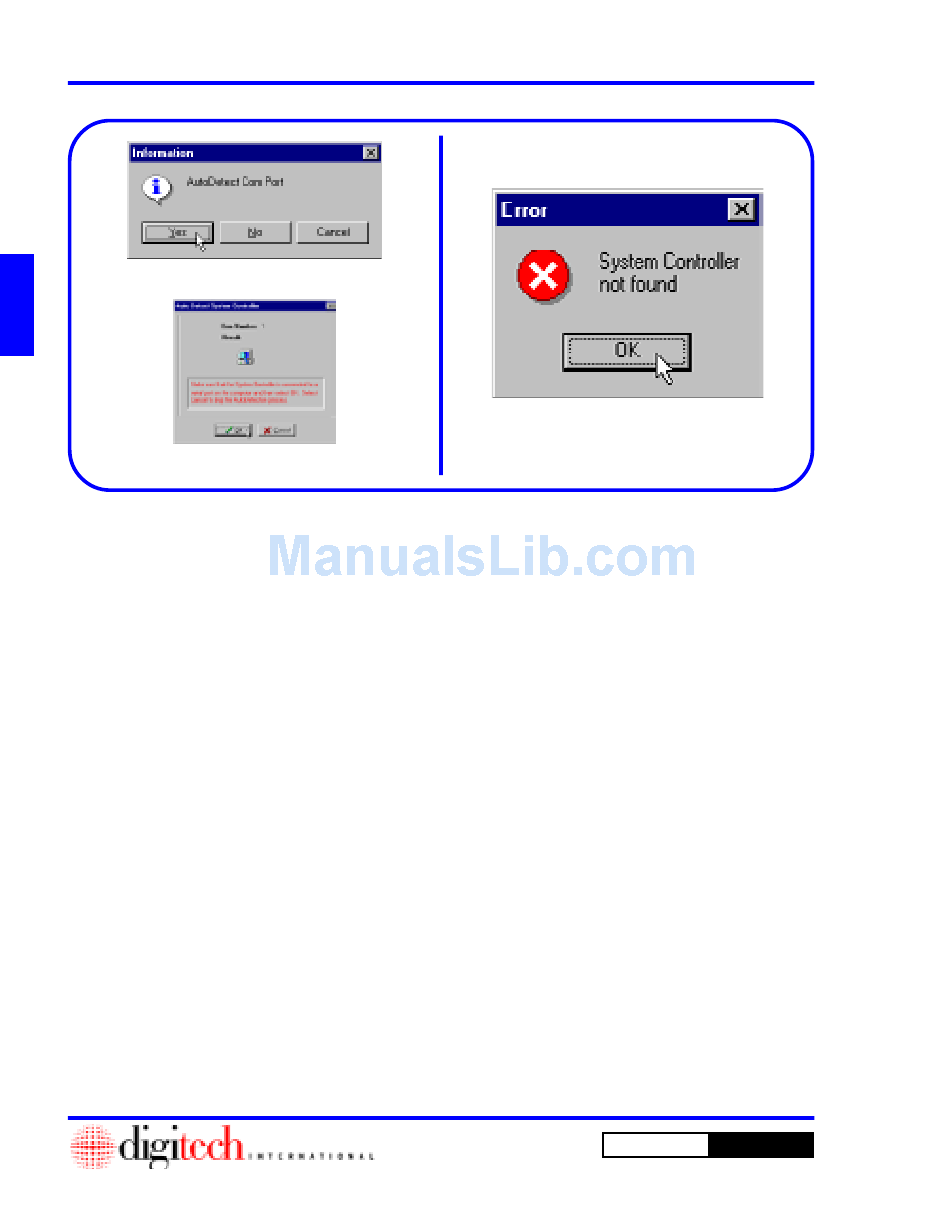

Figure 2-5
Figure 2-6
9. When you Click on OK to continue for the first
time, the Information window opens with a
prompt of "AutoDetect Com Port." Figure 2-5.
10. Click on the Yes button to have the system
locate the System Controller.
11. This will open the Auto Detect System
Controller window. Figure 2-6.
12. Click on the OK button to start the operation or
on the Cancel button to continue without the
test.
13. The system will test all communication ports
for the presence of the System Controller and
set the system for communications with the
System Controller, if it is found.
Setting Up a New Site
Figure 2-7
14. If the System Controller cannot be located, an
Error window will be shown with a prompt of
"System Controller not found."
Figure 2-7.
15. Click on the OK button to continue.
NOTE: Not finding the System Controller will
not affect the setup described in this chapter. It
will, however, affect the operation of your gate
system. Before your system will work
correctly, you need to establish and test
communications between the PC and the
System Controller, reset the system, and verify
that all information has been downloaded to the
System Controller and that the system is
operating properly.
