DigiTech DigiGate-700 User Manual page 130

3 - 50

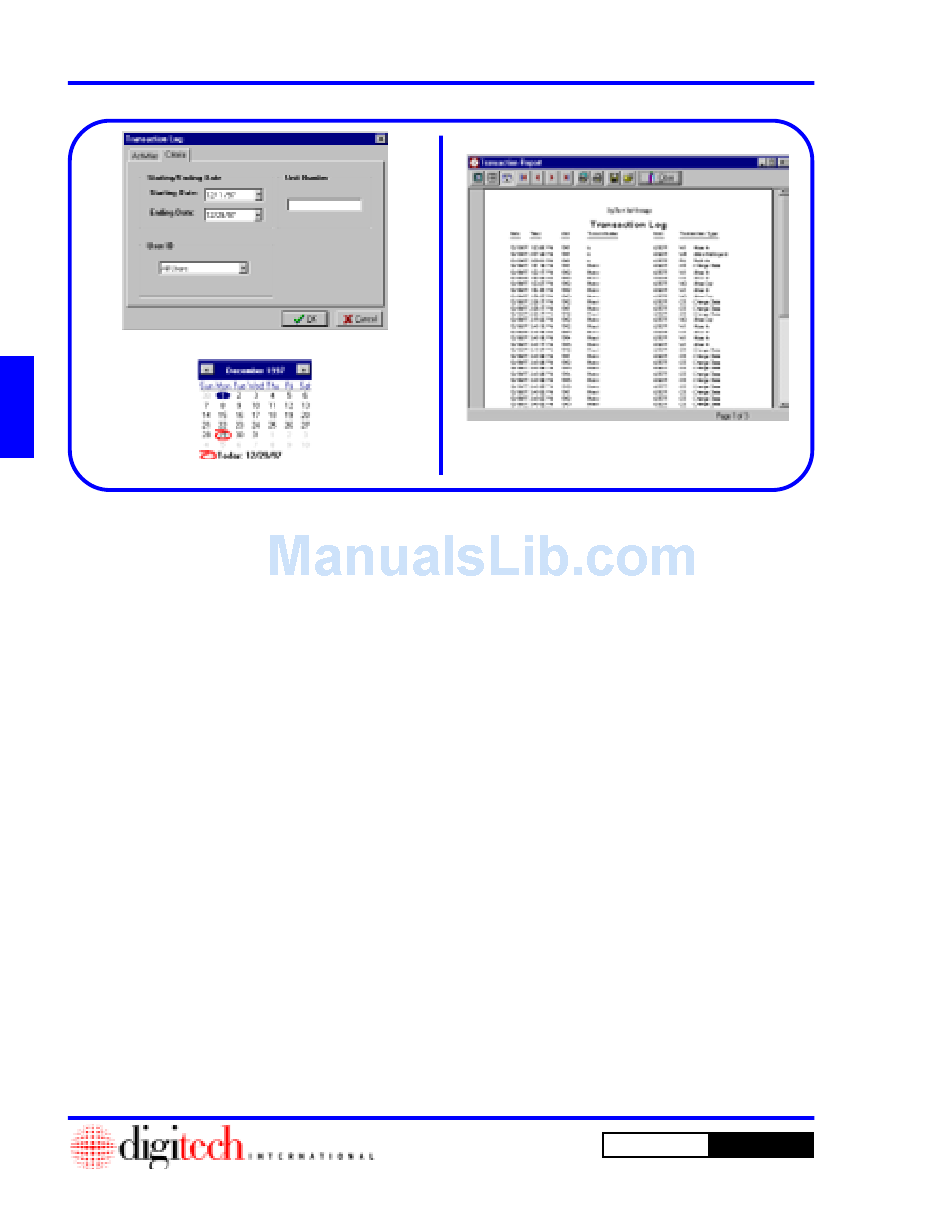

Figure 3-103
Figure 3-104
7. This opens the Criteria window where you can
select a specific date range, User ID , or a Unit
Number for the transactions on the report.
Figure 3-103.
8. To limit the report to a specific unit, type a valid
unit number into the Unit Number field.
Figure 3-103.
9. To limit the report to a specific User, select one
of the users from the User ID list box.
10. To enter a date range, select the month, day, or
year and type your choice or Click on the down
arrow to the right of the Starting Date field.
Figure 3-103.
11. This will open the calendar. Figure 3-104. The
current date is shown at the bottom of the
window.
12. At the top of the window there are left and right
arrow buttons. Click on these to change the
month, backward and forward, respectively.
13. Click on the correct day.
14. Repeat steps 10-13 for the Ending Date field.
15. When all selections have been made, Click on
the OK button to run the report or on the
Cancel button to abandon the operation.
Operating Instructions
Figure 3-105
16. This will open the report display window with
the title of Transaction Report and run the
Transaction Log report. Figure 3-105.
17. The columns displayed are: Date, Time,
Unit, Tenant Name, User, and
Transaction Type.
18. There are no totals for this report.
19. Click on the Close button to return to the
Report Menu .
DigiGate-700
for Windows
™ ®
