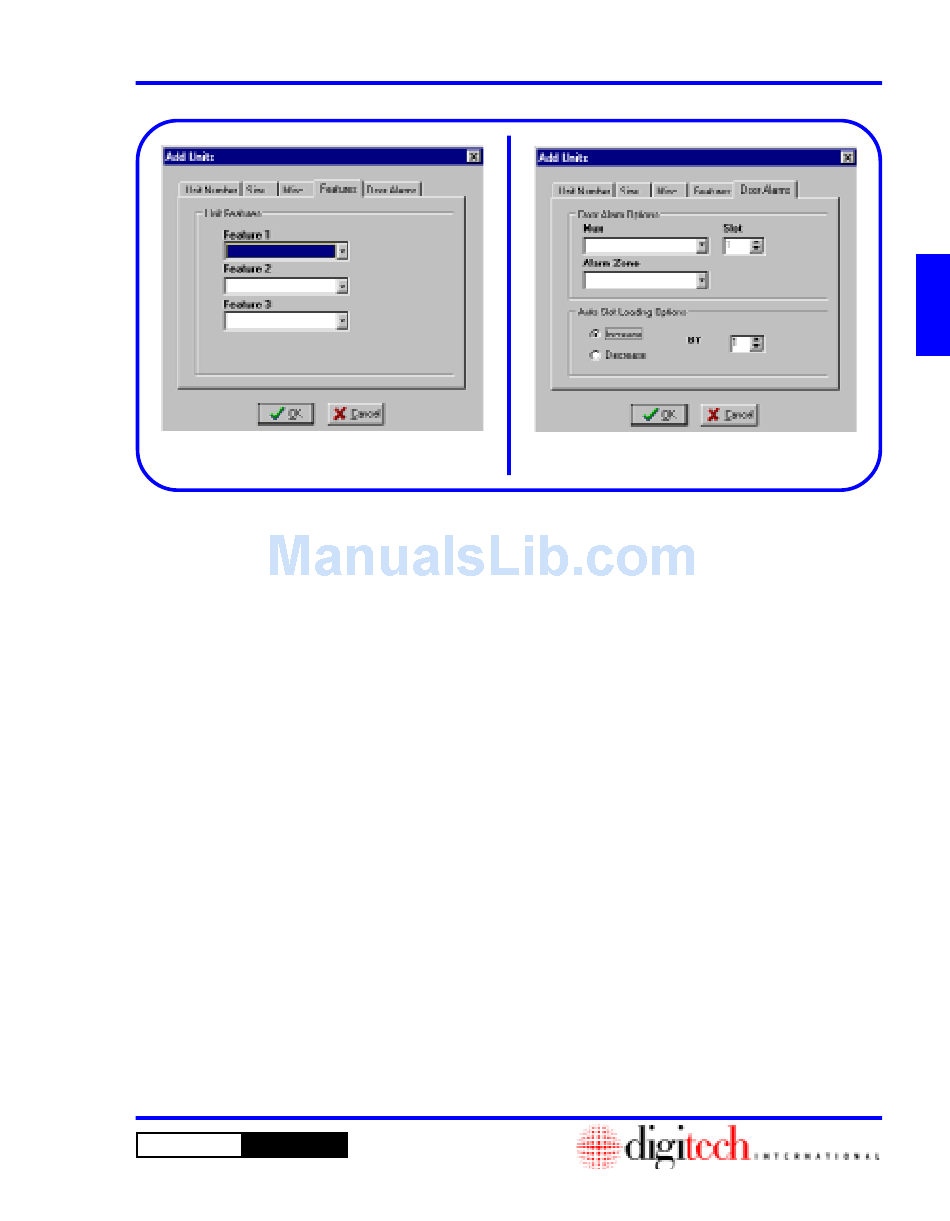

Figure 2-80

Unit Features

1. If you selected Feature 1 , Feature 2 , or
Feature 3 as Required Fields, click on the
Features tab and select the proper features
from the appropriate list boxes. Figure 2-80.

Door Alarm Options

NOTE: The following features deal strictly
with systems that have individual door alarms.
Most of these systems have been set up by
Digitech International, Inc. prior to shipment
or have been configured by a reseller or installer
based on the way units were wired for alarms.
If you do not have a complete working
knowledge of individual door alarms and
their set up in the DigiGate-700 for Windows
system, DO NOT CHANGE ANY INFORMA-
TION IN THE DOOR ALARM SECTION!!
You can render your system INOPERABLE!
1. If all of the units in the group you are adding
have individual Door Alarms, Click on the
Door Alarm tab.
2. Select the Mux list box and from the list of
boards, Select the correct board. Figure 2-81.
DigiGate-700
for Windows
™
- User's Guide
®
®
Figure 2-81
3. After a Mux board has been selected, the Slot
field will be activated. Until a board is selected,
this field is deactivated and cannot be selected.
Use the Up or Down arrows at the right side of
the box to increase or decrease the number in
the Slot field or type a number in directly. This
number is the starting slot number for the group
of units you are adding.
4. Select the Alarm Zone list box and from the
list of boards, Select the correct zone for this
unit or group of units. Normally there is only
one zone, Door Alarms.
5. If you are loading multiple units that have slot
numbers in some sequence respective to the unit
numbers, select one of the choices { Increase |
Decrease } and the value to increment BY in
the Auto Slot Loading Options area.
6. Click OK to add the units or Cancel to
abandon the operation.
