Unit Features - DigiTech DigiGate-700 User Manual

2 - 32

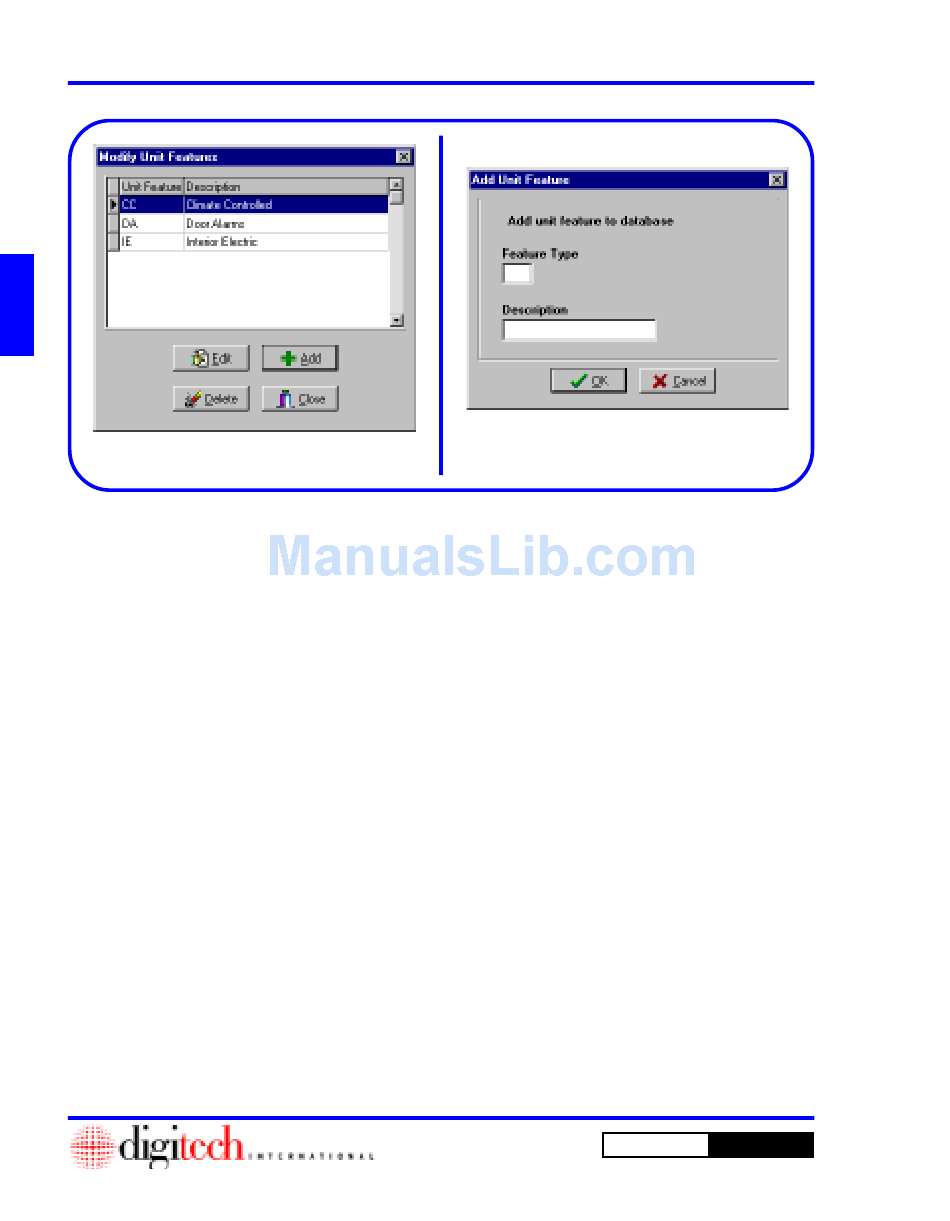

Figure 2-62
1. Click on the Unit Setup tab of the Setup
Menu , then Click on the Unit Features
button. Figure 2-58, Page 2-30.
2. This will open the Modify Unit Features
window. Figure 2-62.
NOTE: The DigiGate-700 for Windows
system ships with three predefined Unit
Features: "Climate Control," "Door
Alarms," and "Interior Electric."
3. To add a new type, Click on the Add button.
Figure 2-62.

Unit Features

4. This will open the Add Unit Feature window.
Figure 2-63.
5. Select the Feature Type field and type in a 2
character type code. The entry will always be
capitalized.
6. Select the Description field and type in your
description.
7. Click on OK to accept and add a new type or
Cancel to discard the information entered.
8. To edit an existing Unit Feature , Select the
record you want to edit in the Modify Unit
Features window. Figure 2-62.
9. Click on the Edit button. This will open the
Edit Unit Feature window. Follow steps 6
and 7.
10. To delete a Unit Feature , Select the record you
want to delete in the Modify Unit Feature
window. Figure 2-62 then Click on Yes in the
Confirm window.
11. Click on the Delete button. You will be asked
to confirm by the Confirm window.
Figure 2-19, Page 2-10.
12. Click on Yes in the Confirm window to delete
the Unit Feature .
Setting Up a New Site
Figure 2-63
DigiGate-700
for Windows
™ ®
