DigiTech DigiGate-700 User Manual page 221

DigiGate-700 for Windows
™

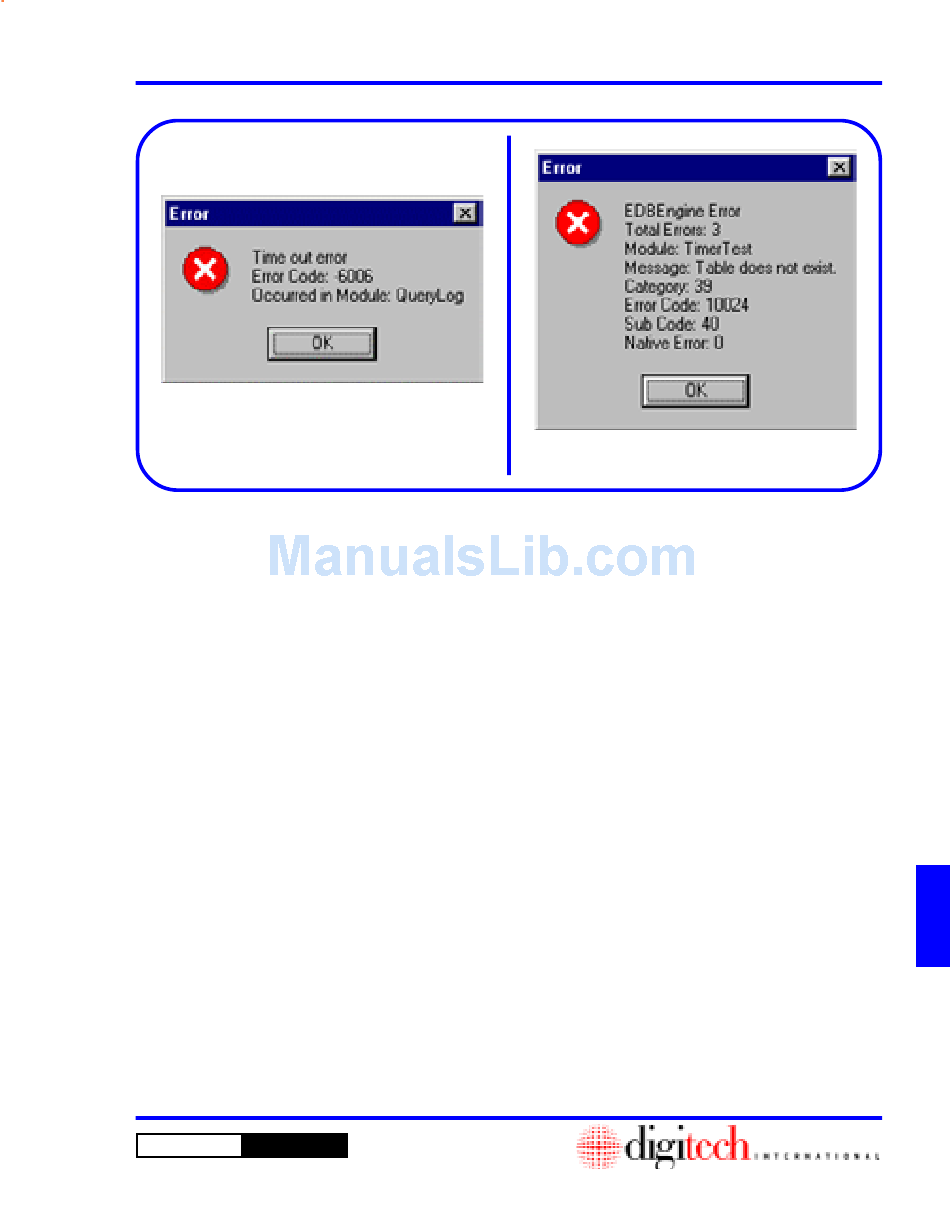

Figure G-1
NOTE: The Serial Port Error window displays
one of the errors listed in the table on the
previous page. Serial Port error messages
contain three lines as follows:
a. The text error message
b. The error code number
c. Where the error occurred
Figure G-1.
1. Click on the OK button.
2. Check the connections on the Serial cable.
3. Power the System Controller down and up and
then try again.
4. If the error persists, call your Reseller or the
Digitech International, Inc. service
department.
DigiGate-700
for Windows
™
- User's Guide
®
®
Figure G-2
Database Error Messages
The possible database errors are too numerous to list
here, but the format of the Error Box is different
from the other categories. The Error window will
contain eight lines as follows:
a. The title: EDBEngine Error
b. Total Errors: The total number of errors
c. Module Name: The program module where
the error occurred.
d. Message: Text description of error.
e. Category: General area of error. i.e. Index,
Data Field, etc. These are in
numeric code.
f. Error Code: The numeric error code.
g. Sub Code: A Further explanation of the
error in numeric code.
h. Native Error: Error message returned from
the database DLL in numeric
code. Figure G-2.
1. Record all information in the Error window.
2. Click on the OK button.
3. Close and reopen the program. Then try again.
4. If the error persists, call your Reseller or the
Digitech International, Inc. service
department.
G - 3
