Field Service Ver. 1.0 Apr. 2007
[1]

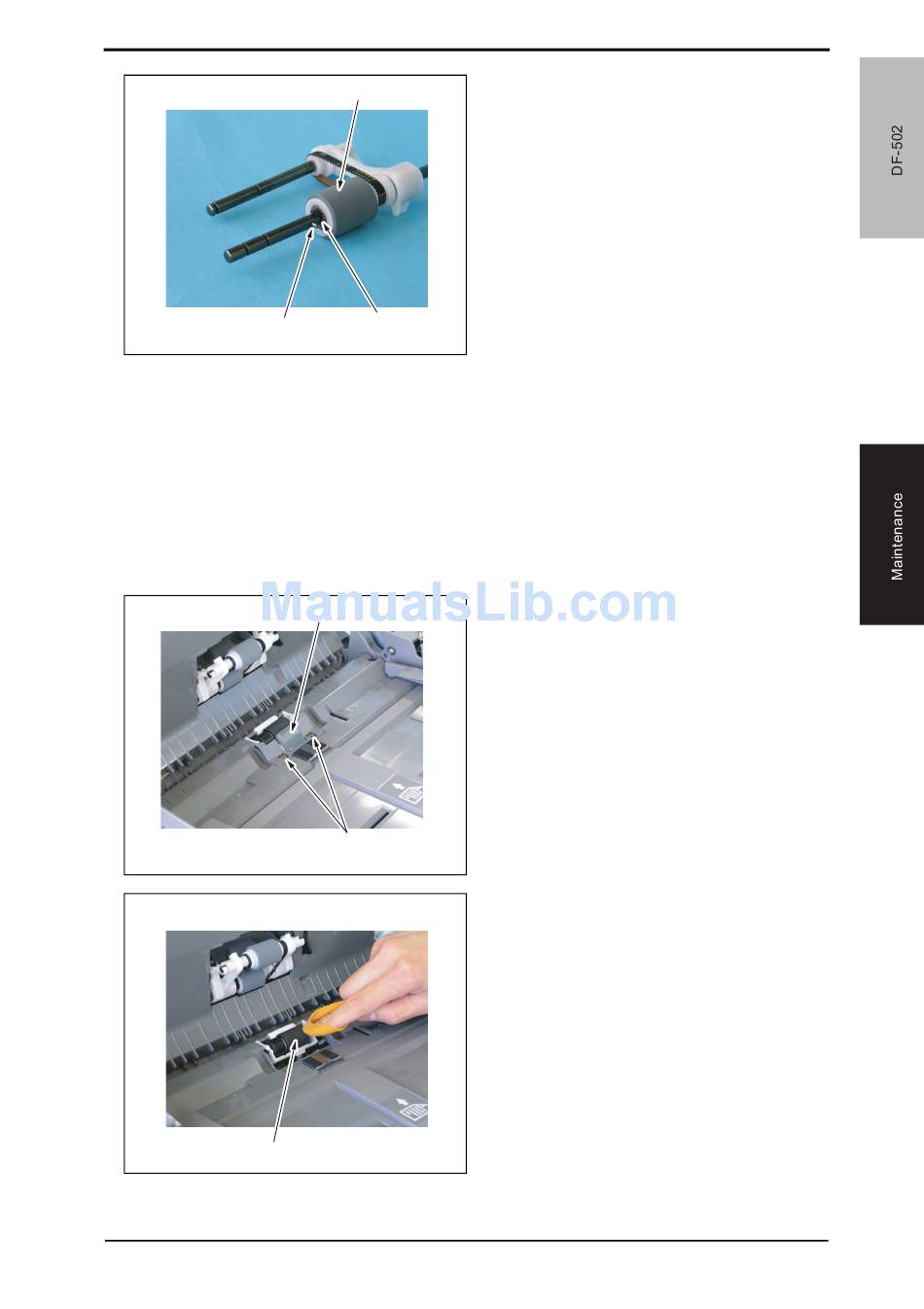

8. To reinstall, reverse the order of removal.
2.1.2

Separation roller

A. Periodically cleaning parts/cycle
• Separation roller: Every 30,000 prints
B. Periodically replaced parts/cycle
• Separation roller: Every 120,000 prints
C. Cleaning procedure
[1]
[3]
[2]
4688F2C505DA
[2]
[1]
4688F2C506DA
4688F2C507DA
2. Periodical check
7. Remove the pin [1], snap off one C-
clip [2], and remove the feed roller
[3].
1. Remove two screws [1] and the sep-
arator section protective cover [2].
2. Using a soft cloth dampened with
alcohol, wipe the separation roller [1]
clean of dirt.
