6. Service Mode

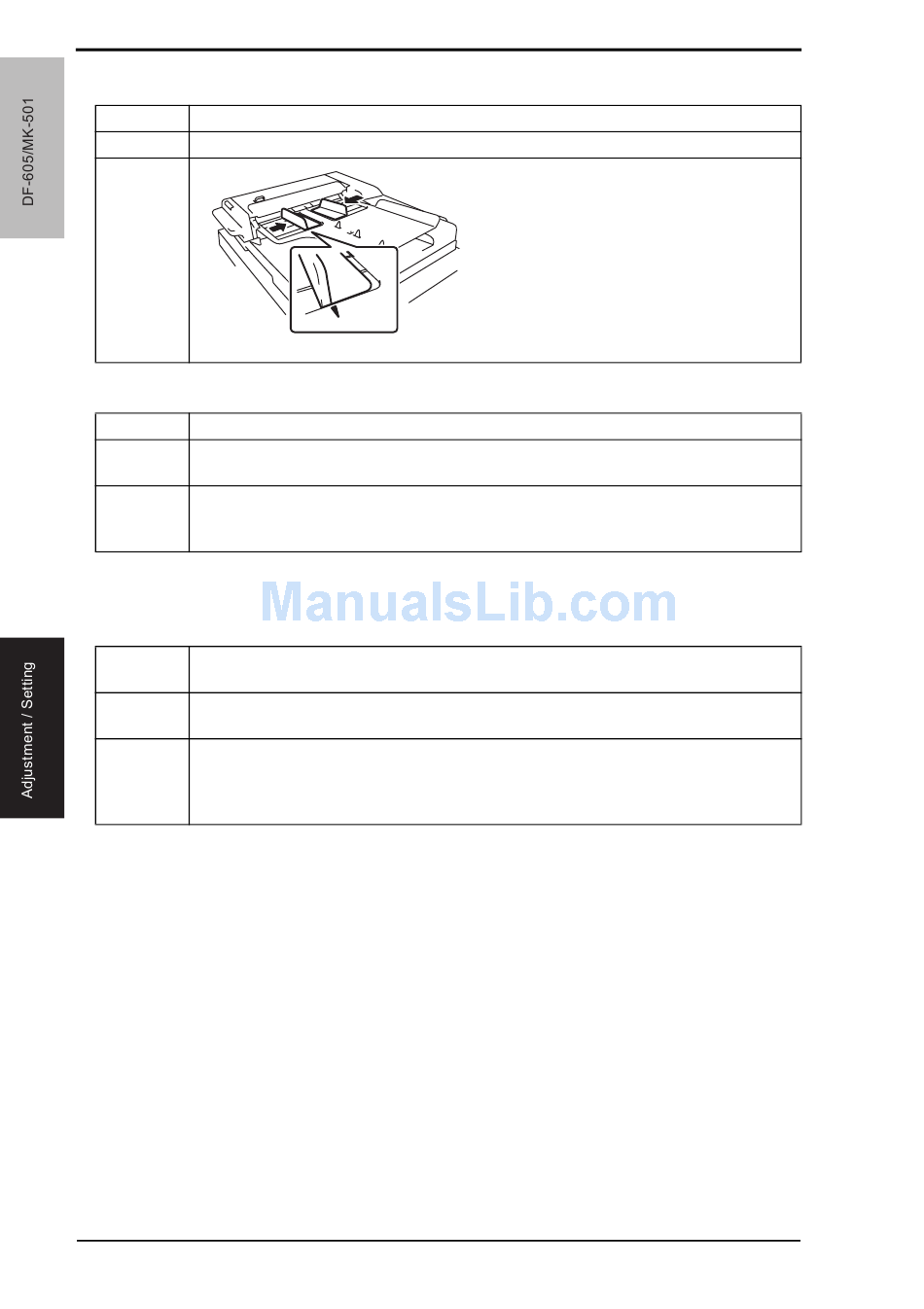

D. ADF WIDTH Ad. (Min)
Functions • To adjust the original size detection VR.
Use • When PBA-VR board is replaced
Adjustment
procedure
E. ADF SENSOR ADJUST
Functions • To automatically adjust the detection level of original path sensor.
Use • When each sensor is replaced
• When original size detection error occurs
Adjustment/ 1. Display the Service mode.
procedure 2. Choose [ADF SENSOR ADJUST] from [FUNCTION].
3. Press the OK key.
6.3.3

CLEAR DATA

A. ADF BACKUP CLEAR
Functions • To clear the values adjusted with [ADF SENSOR ADJUST] and the values adjusted
with Org. width detect.
Use • When PBA-CONT board has been replaced.
• When PBA-VR board has been replaced.
Adjustment/ 1. Press the OK key to clear settings memorized in PBA-CONT.
procedure 2. The operation stops automatically.
3. After clear the Backup data, adjust the [ADF WIDTH Ad. (MAX)], [ADF WIDTH Ad.
(Min)] and [ADF SENSOR ADJUST].
28
Field Service Ver. 1.0 Apr. 2007
1. Display the Service mode.
2. Choose [ADF WIDTH Ad. (Min)] from
[FUNCTION].
3. Align the original edge plane of the side
edge stop of the original feed tray to the
outside ▼ mark.
4. Press the OK key to determine the maxi-
mum value.
5. Power cycle and check whether size
4344F3C531DA
detection operates normally.
