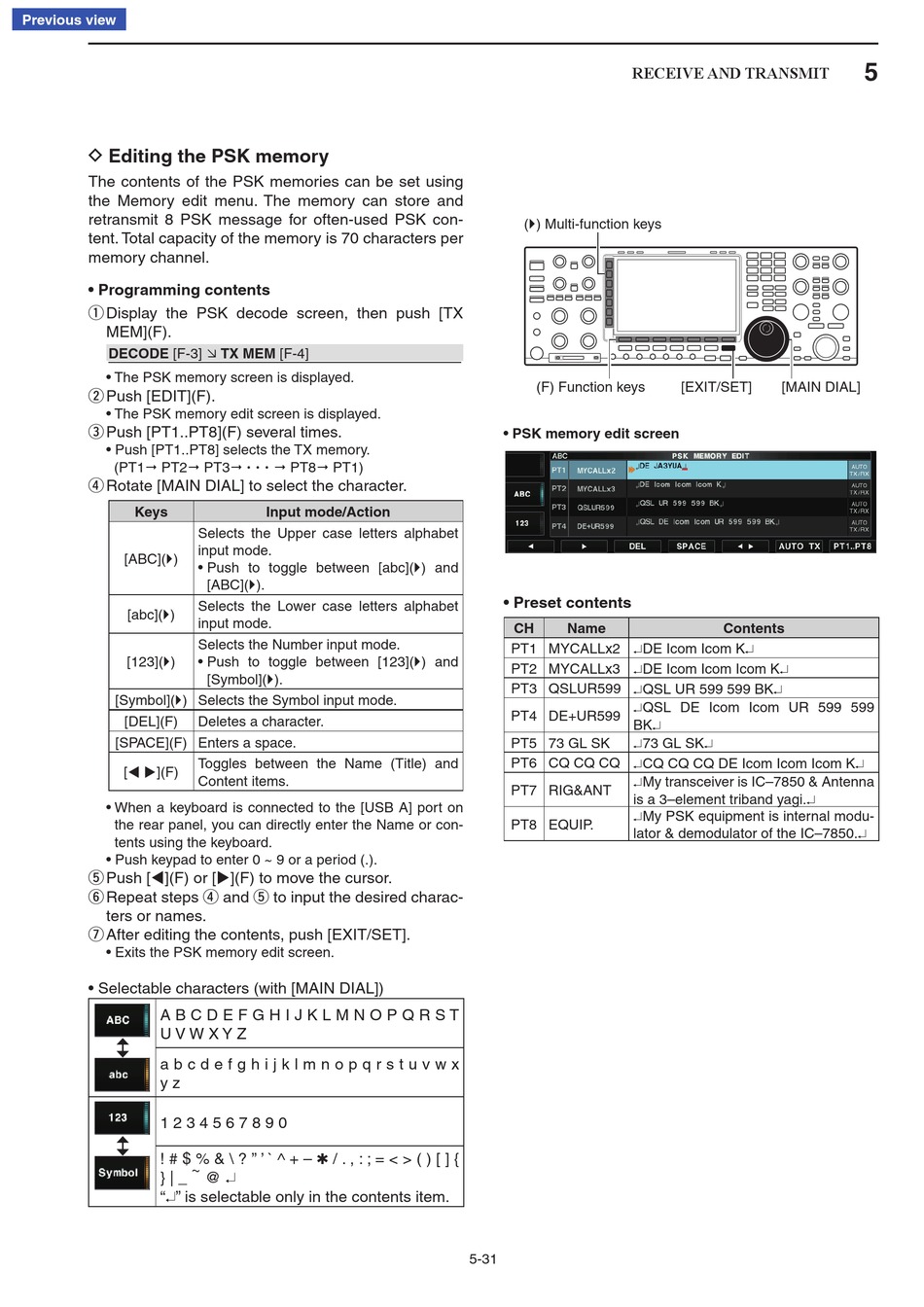

D Editing the PSK memory
The contents of the PSK memories can be set using
the Memory edit menu. The memory can store and
retransmit 8 PSK message for often-used PSK con-
tent. Total capacity of the memory is 70 characters per
memory channel.
• Programming contents
Display the PSK decode screen, then push [TX
q
MEM](F).
DECODE [F-3]  TX MEM [F-4]
• The PSK memory screen is displayed.
Push [EDIT](F).
w
• The PSK memory edit screen is displayed.
Push [PT1..PT8](F) several times.
e
• Push [PT1..PT8] selects the TX memory.
(PT1 PT2 PT3     PT8 PT1)
Rotate [MAIN DIAL] to select the character.
r
Keys
Selects the Upper case letters alphabet
input mode.
[ABC]()
• Push to toggle between [abc]() and
Selects the Lower case letters alphabet
[abc]()
input mode.
Selects the Number input mode.
[123]() • Push to toggle between [123]() and
[Symbol]() Selects the Symbol input mode.
[DEL](F) Deletes a character.
[SPACE](F) Enters a space.
Toggles between the Name (Title) and
[t u](F)
Content items.
• When a keyboard is connected to the [USB A] port on
the rear panel, you can directly enter the Name or con-
tents using the keyboard.
• Push keypad to enter 0 ~ 9 or a period (.).
Push [ t](F) or [u](F) to move the cursor.
t
Repeat steps
y
ters or names.
After editing the contents, push [EXIT/SET].
u
• Exits the PSK memory edit screen.
• Selectable characters (with [MAIN DIAL])
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z
a b c d e f g h i j k l m n o p q r s t u v w x
y z
1 2 3 4 5 6 7 8 9 0
! # $ % & \ ? " ' ` ^ + – ✱ / . , : ; = < > ( ) [ ] {
} | _ ~ @ ↵
"↵" is selectable only in the contents item.
Input mode/Action
[ABC]().
[Symbol]().
r and t to input the desired charac-
RECEIVE AND TRANSMIT
() Multi-function keys
(F) Function keys
• PSK memory edit screen
• Preset contents
CH Name
PT1 MYCALLx2 ↵DE Icom Icom K↵
PT2 MYCALLx3 ↵DE Icom Icom Icom K↵
PT3 QSLUR599 ↵QSL UR 599 599 BK↵
↵QSL DE Icom Icom UR 599 599
PT4 DE+UR599
BK↵
PT5 73 GL SK ↵73 GL SK↵
PT6 CQ CQ CQ ↵CQ CQ CQ DE Icom Icom Icom K↵
↵My transceiver is IC–7850 & Antenna
PT7 RIG&ANT
is a 3–element triband yagi.↵
↵My PSK equipment is internal modu-
PT8 EQUIP.
lator & demodulator of the IC–7850.↵
5-31
